Overview
|
Product name |

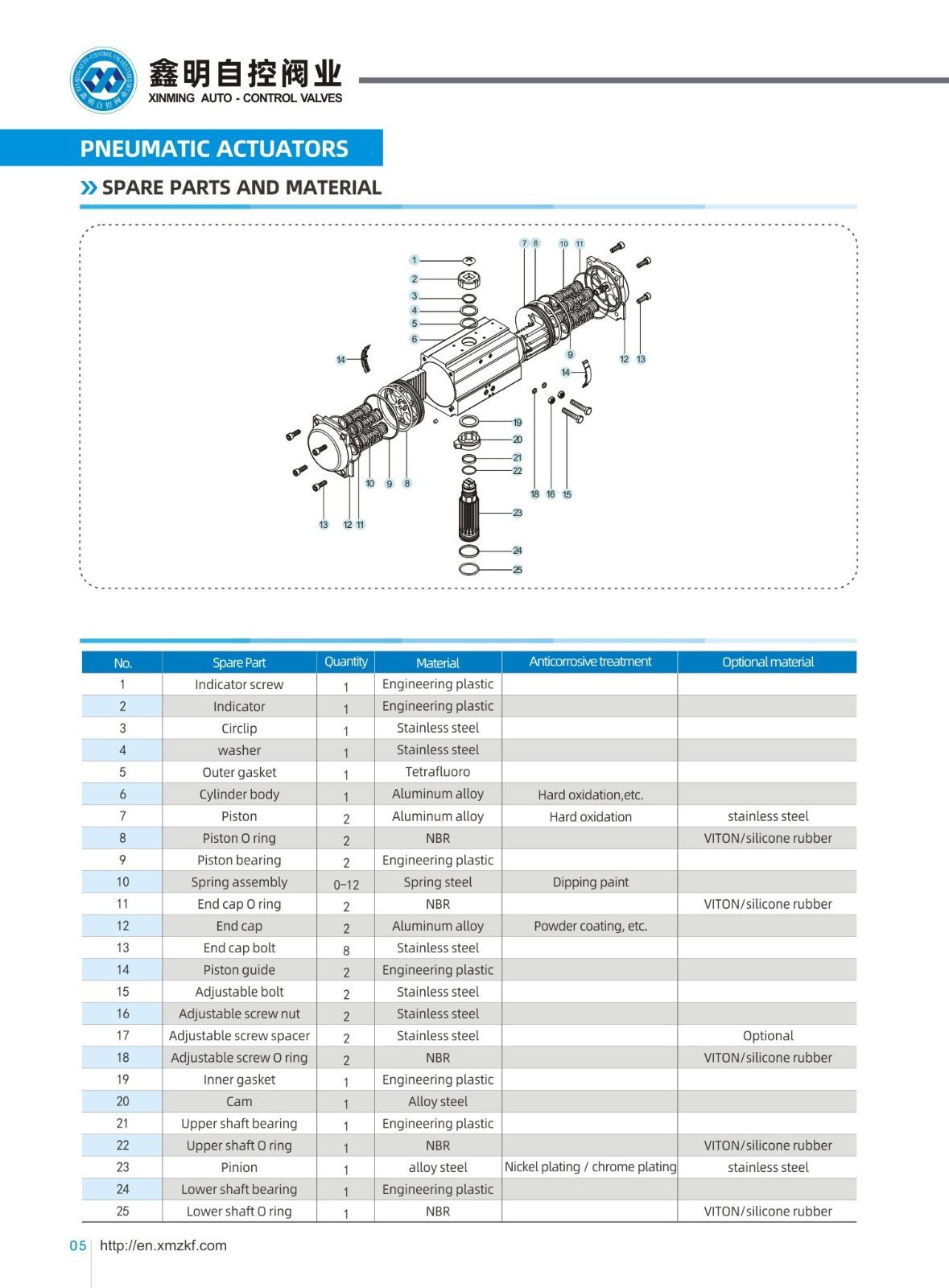

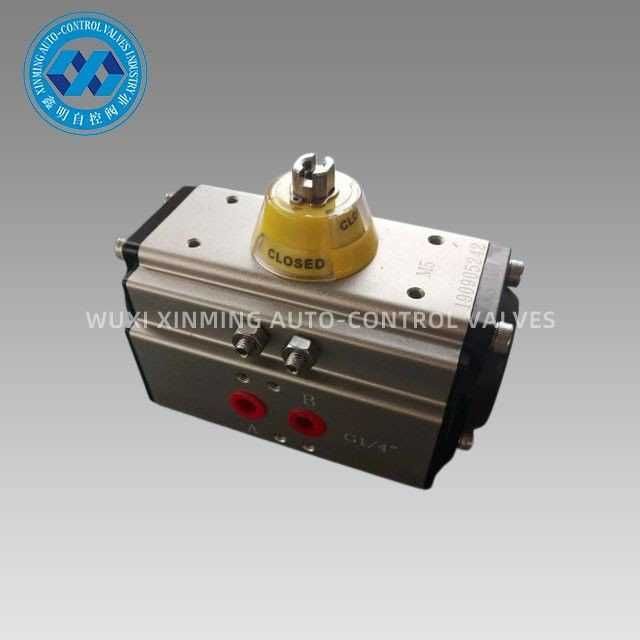

Angle Travel Pneumatic Actuator |
|
Material |
Stainless Steel / Aluminum alloy |
|
Certificate |
ISO9001: 2015, CE, ATEX, SIL3 |
|
Function |
ON / OFF |
|
Application |
Automation Ball valve, Automation Butterfly valve |
|
Temperature Range |
-40~150 degree C |
|
Delivery time |
within 7 days normally. |
|
Shipping port |
Shanghai, Ningbo, etc. |
|
Package detail |
each Carton inside, plywood case (ocean shipment) or pallet (air shipment) outside |
|
Rotary Angle |
0~90 degree/ 0~120degree/ 0~180degree |
|
Structure |
rack and pinion rotary actuator |
|
Surface Treatment |
hard anodization |
|
Working Temperature |
Normal Temperature: -20°C ~ 80°C (-4°F ~ 176°F) |
|
Connection |
NAMUR, ISO5211 and DIN3337 |
|
Cap Color |
support customized |
|
Type |
double acting and single acting |
|
Indicator |
Support customized |
|
Install Accessories |
Limit Switch Box / Solenoid Valve / Valve Positioner, etc. |
|
valve Accessories |
Manual Override Gearbox |
|
Piston |
Hard Anodizing |
|
Medium |
Water, Oil, Air or corrosive environment |
|
Model |
GT32/AT40/AT52/AT63/AT75/AT83/AT92/AT105/AT125/AT140/AT160/AT190 |
Supply Ability
Supply Ability: 10000 units per month Pneumatic Rotary Actuator
Packing & Delivery
Packing detail:
1). separate carton with foam packing inside
2) . plywood case for ocean shipment
3) . Plywood pallet for air shipment
Port of departure: Shanghai, China
Lead Time:
|
Quantity(Units) |
1-50 |
51-1000 |
1001-10000 |
＞10001 |
|
Est. Time(days) |
Goods in stock |
7 |
20 |
To be negotiated |
Product Introduction
Advantage
All process are one-time-forming by CNC to ensure the process accuracy and duty life.
Application
Angle Travel Pneumatic Actuator can be suitable for various flammable, corrosive, dusty, strong magnetic field, radiation, vibration corrosive environment indoor or outdoor, which are widely used in the field of electric power, petrochemical, metallurgy, petroleum, gas, town, construction, drainage, chemical industry, oil refining, mining, power plant, metallurgy, architecture, medicine, food, gas, scientific research, etc.

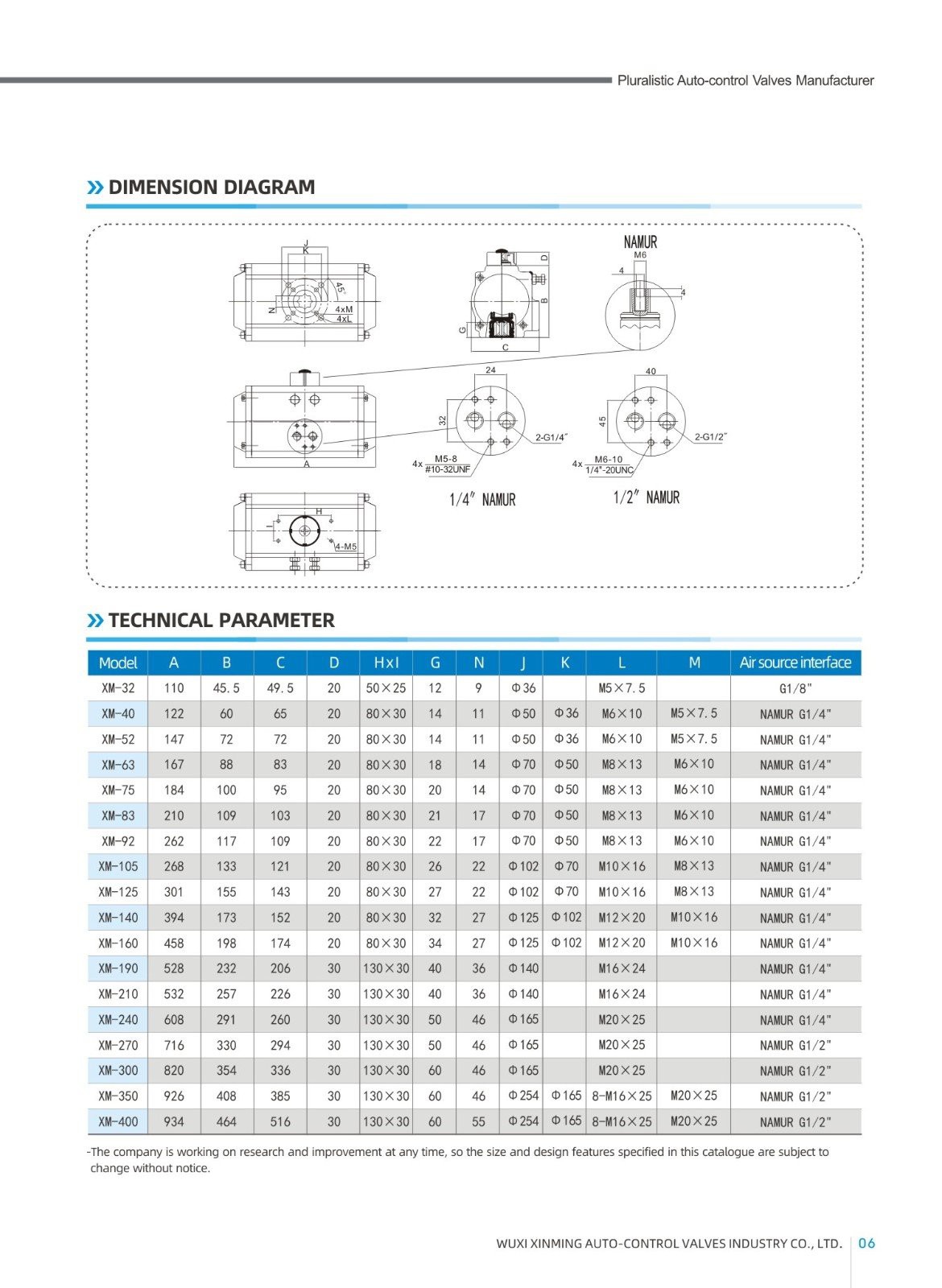

Technical Parameter
XM ALUMINUM PNEUMATIC ACTUATOR OUTPUT TORQUE TABLE
|
Model |
Input air pressure(unit:bar) |
|||||
|
3 |
4 |
5 |
6 |
7 |
8 |
|
|
Air pressure output torque(N.m) |
||||||
|
XM-DA32 |
4.6 |
6.1 |
7.6 |
9.2 |
10.7 |
12.2 |
|
XM-DA40 |
7.2 |
9.6 |
12.0 |
14.4 |
16.8 |
19.2 |
|
XM-DA52 |
12.0 |
16.0 |
20.0 |
24.0 |
28.0 |
32.0 |
|
XM-DA63 |
21.7 |
28.9 |
36.0 |
43.4 |
50.6 |
57.8 |
|
XM-DA75 |
30.0 |
40.0 |
50.0 |
60.0 |
70.0 |
80.0 |
|
XM-DA83 |
46.8 |
62.4 |
78.0 |
93.6 |
109.2 |
124.8 |
|
XM-DA92 |
67.6 |
90.1 |
112.6 |
135.2 |
157.7 |
180.2 |
|
XM-DA105 |
97.7 |
130.3 |
162.9 |
195.5 |
228.0 |
260.6 |
|
XM-DA125 |
150.5 |
200.6 |
250.8 |
301.0 |
351.1 |
401.3 |
|
XM-DA140 |
260.7 |
347.6 |
433.8 |
521.4 |
608.3 |
695.2 |
|
XM-DA160 |
397.2 |
529.6 |
662.0 |
794.4 |
926.8 |
1059.2 |
|
XM-DA190 |
640.2 |
853.6 |
1067.0 |
1280.4 |
1493.8 |
1707.2 |
|
XM-DA210 |
798.0 |
1064.0 |
1330.0 |
1596.0 |
1862.0 |
2128.0 |
|
XM-DA240 |
1154.3 |
1539.0 |
1923.8 |
2308.5 |
2693.3 |
3078.0 |
|
XM-DA270 |
1755.0 |
2340.0 |
2924.0 |
3510.0 |
4095.0 |
4680.0 |
|
XM-DA300 |
2291.4 |
3055.2 |
3819.0 |
4582.8 |
5346.6 |
6110.4 |
|
XM-DA350 |
3426.0 |
4568.0 |
5710.0 |
6852.0 |
7994.0 |
9136.0 |
|
XM-DA400 |
4872.0 |
6496.0 |
8120.0 |
9744.0 |
11368.0 |
12992.0 |
FAQ
Q 1: Payment terms capacity?
A 1: T/T, L/C, Western Union.
Q 2: Trade terms?
A 2: In according with Incoterms 2010, normally with EXW, FOB shanghai, CFR, CIF and DDU.
Q 3: Validity of quotation?
A 3: Within 30 days.
Q 4: Installation and training?
A 4: normal video guidance for installation. If necessary, paid overseas engineering service provided.
