Application

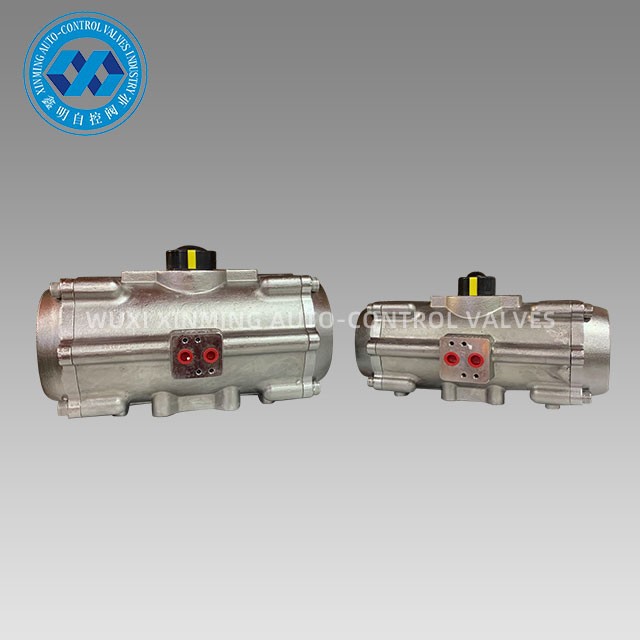

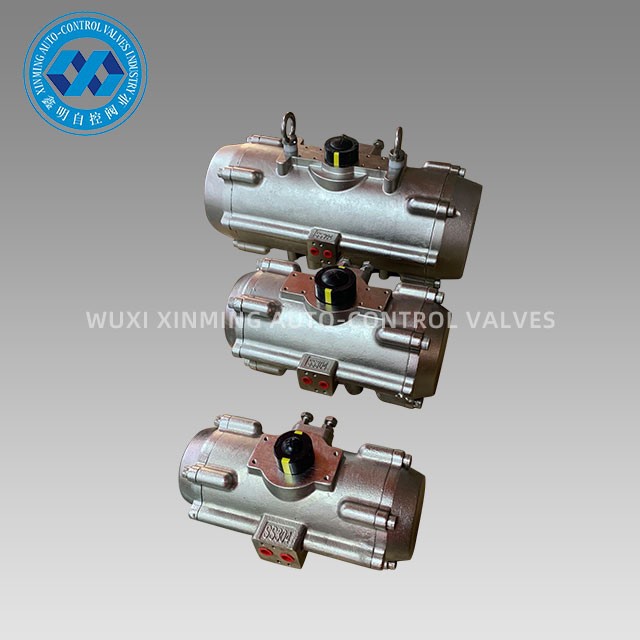

XM series Stainless Steel Pneumatic Rack and Pinion Actuators can be suitable for various flammable, corrosive, dusty, strong magnetic field, radiation, vibration corrosive environment indoor or outdoor, which are widely used in the field of electric power, petrochemical, metallurgy, petroleum, gas, town, construction, drainage, chemical industry, oil refining, mining, power plant, metallurgy, architecture, medicine, food, gas, scientific research, etc.
Advantage
1) All important spare parts would be treated with high quality process accuracy to ensure the good performance and duty life to a great degree.Stainless steel is known for its excellent corrosion resistance, making it ideal for harsh environments or applications involving exposure to moisture, chemicals, or extreme temperatures. This durability ensures the actuator will have a longer lifespan, reducing the need for frequent replacements or repairs.
2) All process are one-time-forming by CNC to ensure the process accuracy and duty life.Stainless steel actuators are often designed to be compatible with industry-standard mounting dimensions, making them easy to integrate into existing systems or replace older actuators. This compatibility reduces installation time and costs while providing a seamless transition.

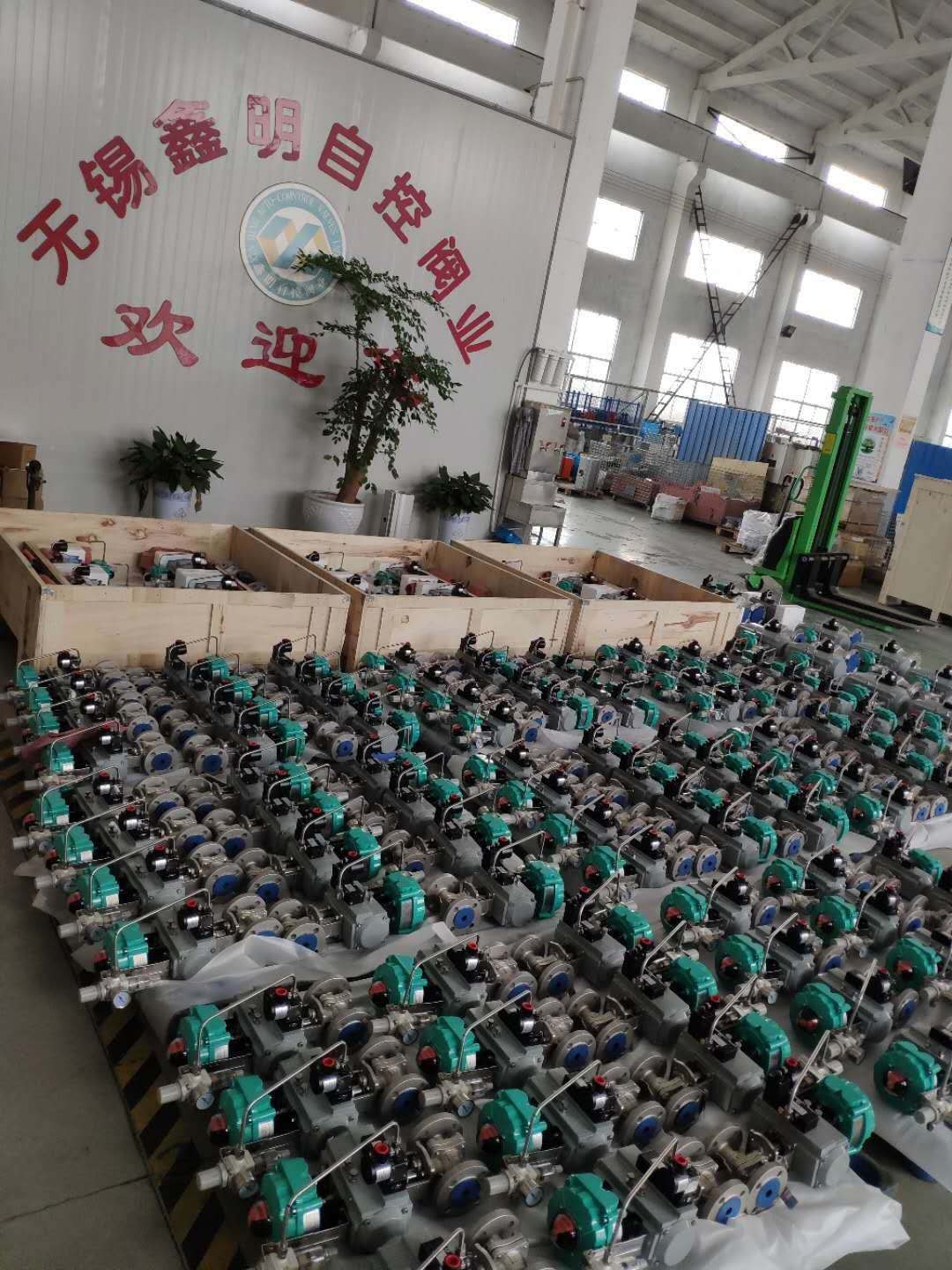

3) There are 13 sets CNC center currently in our workshop now to ensure the delivery time in time. A high-quality actuator ensures reliable operation, minimizing downtime and improving overall system performance. Stainless steel construction provides strength and enhances the actuator's ability to withstand heavy loads and high-pressure applications, ensuring smooth and consistent movement.
Technical Parameter
XM STAINLESS STEEL PNEUMATIC ACTUATOR OUTPUT TORQUE TABLE
|
Model |
Input air pressure(unit:bar) |
|||||
|
3 |
4 |
5 |
6 |
7 |
8 |
|
|
Air pressure output torque(N.m) |
||||||
|
XM-DA45-SS |
7.2 |
9.6 |
12.0 |
14.4 |
16.8 |
19.2 |
|
XM-DA52-SS |
12.0 |
16.0 |
20.0 |
24.0 |
28.0 |
32.0 |
|
XM-DA63-SS |
21.7 |
28.9 |
36.0 |
43.4 |
50.6 |
57.8 |
|
XM-DA75-SS |
30.0 |
40.0 |
50.0 |
60.0 |
70.0 |
80.0 |
|
XM-DA83-SS |
46.8 |
62.4 |
78.0 |
93.6 |
109.2 |
124.8 |
|
XM-DA92-SS |
67.6 |
90.1 |
112.6 |
135.2 |
157.7 |
180.2 |
|
XM-DA105-SS |
97.7 |
130.3 |
162.9 |
195.5 |
228.0 |
260.6 |
|
XM-DA125-SS |
150.5 |
200.6 |
250.8 |
301.0 |
351.1 |
401.3 |
|
XM-DA140-SS |
260.7 |
347.6 |
433.8 |
521.4 |
608.3 |
695.2 |
|
XM-DA160-SS |
397.2 |
529.6 |
662.0 |
794.4 |
926.8 |
1059.2 |
|
XM-DA190-SS |
640.2 |
853.6 |
1067.0 |
1280.4 |
1493.8 |
1707.2 |
|
XM-DA210-SS |
798.0 |
1064.0 |
1330.0 |
1596.0 |
1862.0 |
2128.0 |
|
XM-DA240-SS |
1154.3 |
1539.0 |
1923.8 |
2308.5 |
2693.3 |
3078.0 |
|
XM-DA270-SS |
1755.0 |
2340.0 |
2924.0 |
3510.0 |
4095.0 |
4680.0 |
|
XM-DA300-SS |
2291.4 |
3055.2 |
3819.0 |
4582.8 |
5346.6 |
6110.4 |
|
XM-DA350-SS |
3426.0 |
4568.0 |
5710.0 |
6852.0 |
7994.0 |
9136.0 |
|
XM-DA400-SS |
4872.0 |
6496.0 |
8120.0 |
9744.0 |
11368.0 |
12992.0 |
