Description
Overview

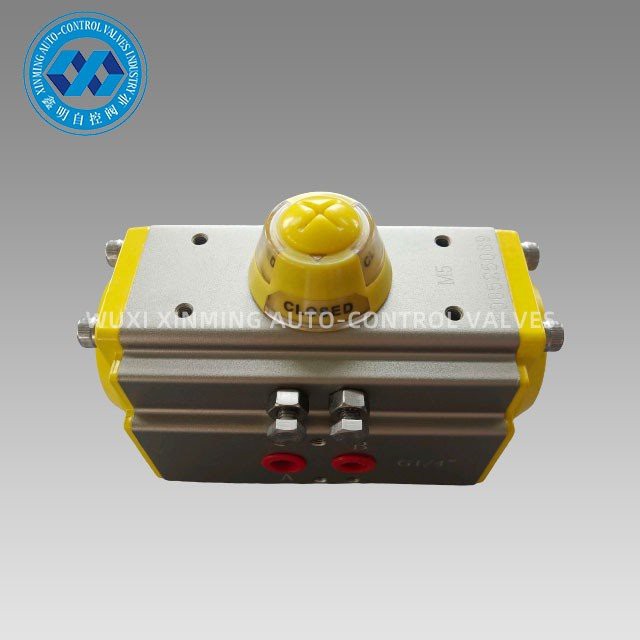

XM Angular Stoke Pneumatic Actuators have achieved ATEX(TUV), CE, SIL3 certifications.
XM Angular Stoke Pneumatic Actuators are designed for the automation valves and equipment with quarter turn movement, and its duty life is one million operation times.
XM Angular Stoke Pneumatic Actuators include Double Acting and Spring Return types, which meet ISO5211 and DIN3337 standards for convenient valve mounting and replacement, as well as visual position indicator indicating valve open and close position.
XM Angular Stoke Pneumatic Actuators provide with long duty life and better high quality performance for automation valve control.
Supply Ability
Supply Ability: 10000 units per month XM Angular Stoke Pneumatic Actuator
Packing & Delivery
Packing detail: 1). separate carton with foam packing inside
2) . plywood case for ocean shipment
3) . Plywood pallet for air shipment
Port of departure: Shanghai, China
Lead Time:
|
Quantity(Units) |
1-50 |
51-1000 |
1001-10000 |
＞10001 |
|
Est. Time(days) |
Goods in stock |
7 |
20 |
To be negotiated |
Product Introduction

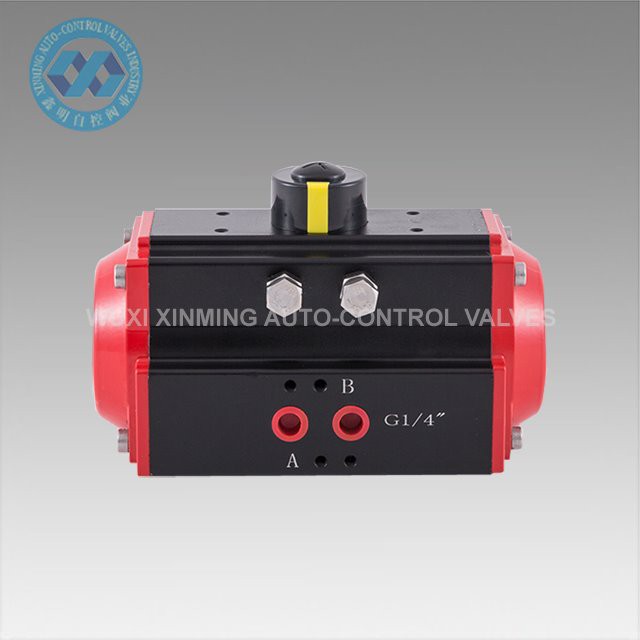

XM Angular Stoke Pneumatic Actuators are used to control butterfly valves, ball valves, and machinery with rotary movement automatically. Precision die-casting aluminum alloy double-rack pistons with hard oxidation treatment improve rotary angle accuracy and duty life. The actuator body with hard-oxidation can avoid the scratch effectively.
Advantage

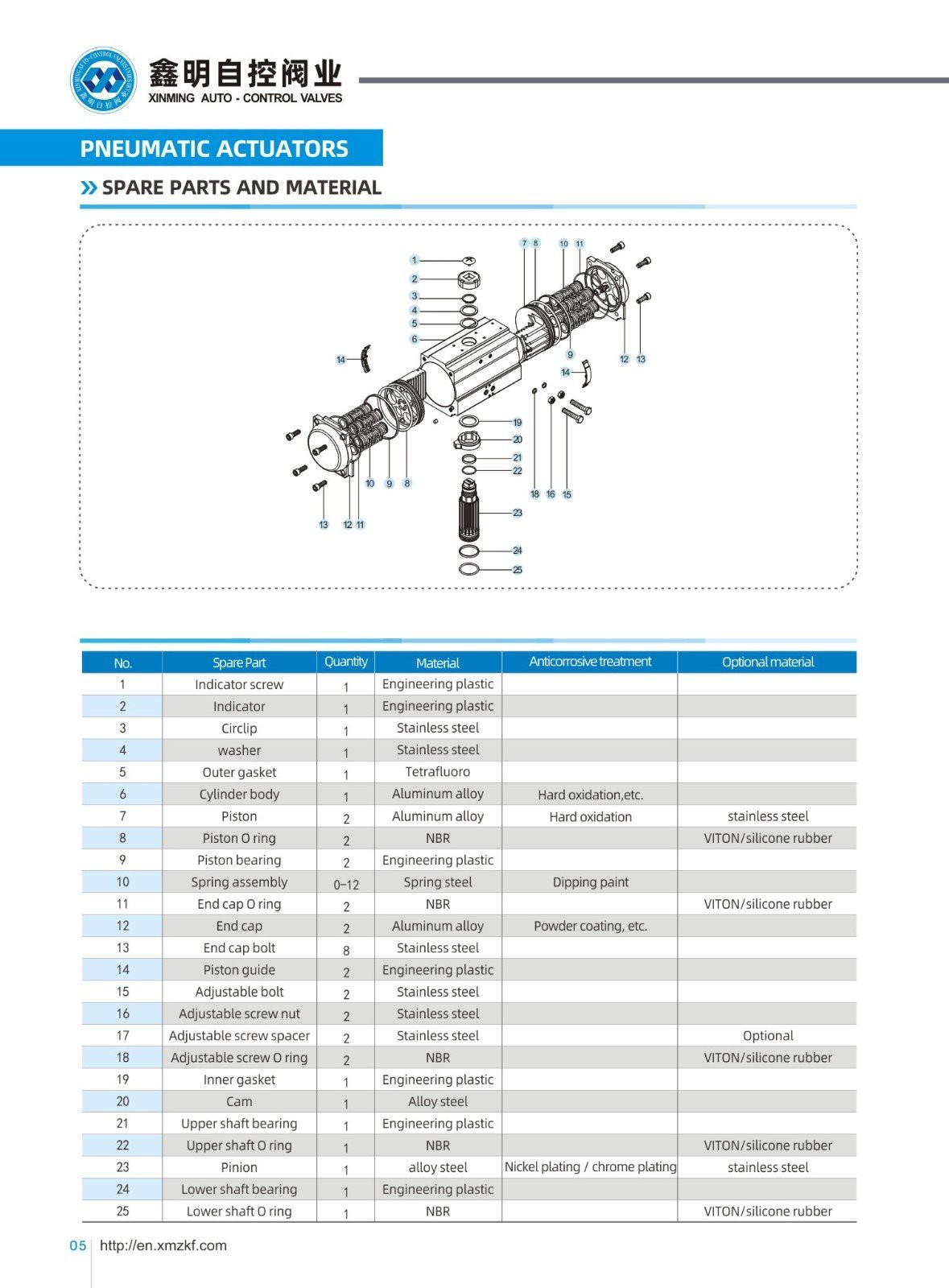

1) All important spare parts would be treated with hard-anodization to enhance the strength to a great degree to ensure the good performance and duty life.
2) All process are one-time-forming by CNC to ensure the process accuracy and duty life.
Application
XM Angular Stoke Pneumatic Actuators can be suitable for various flammable, corrosive, dusty, strong magnetic field, radiation, vibration corrosive environment indoor or outdoor, which are widely used in the field of electric power, petrochemical, metallurgy, petroleum, gas, town, construction, drainage, chemical industry, oil refining, mining, power plant, metallurgy, architecture, medicine, food, gas, scientific research, etc.

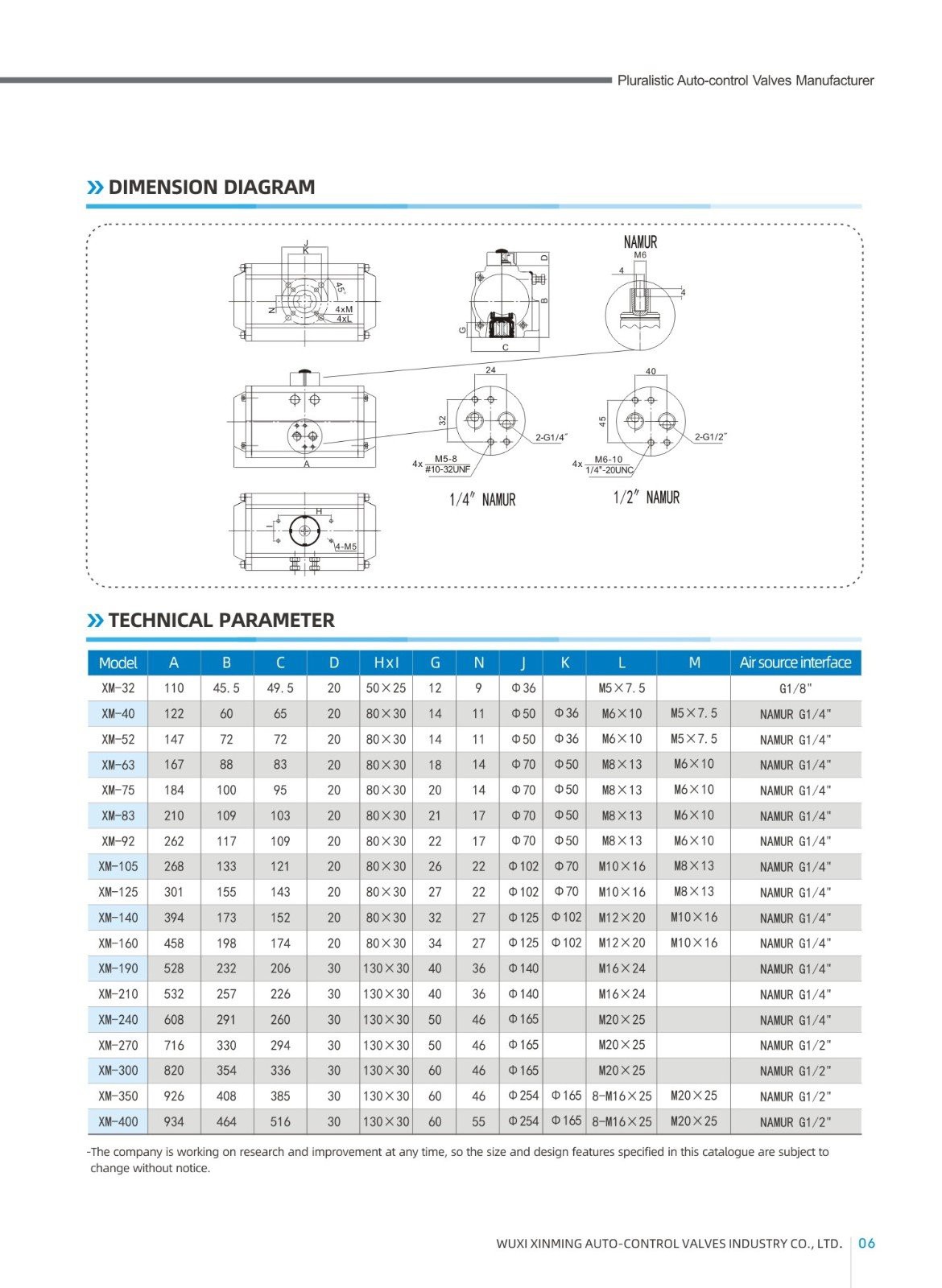

Technical Parameter
XM PNEUMATIC RACK AND PINION ACTUATOR OUTPUT TORQUE TABLE
|
Model |
Input air pressure(unit:bar) |
|||||
|
3 |
4 |
5 |
6 |
7 |
8 |
|
|
Air pressure output torque(N.m) |
||||||
|
XM-DA32 |
4.6 |
6.1 |
7.6 |
9.2 |
10.7 |
12.2 |
|
XM-DA40 |
7.2 |
9.6 |
12.0 |
14.4 |
16.8 |
19.2 |
|
XM-DA52 |
12.0 |
16.0 |
20.0 |
24.0 |
28.0 |
32.0 |
|
XM-DA63 |
21.7 |
28.9 |
36.0 |
43.4 |
50.6 |
57.8 |
|
XM-DA75 |
30.0 |
40.0 |
50.0 |
60.0 |
70.0 |
80.0 |
|
XM-DA83 |
46.8 |
62.4 |
78.0 |
93.6 |
109.2 |
124.8 |
|
XM-DA92 |
67.6 |
90.1 |
112.6 |
135.2 |
157.7 |
180.2 |
|
XM-DA105 |
97.7 |
130.3 |
162.9 |
195.5 |
228.0 |
260.6 |
|
XM-DA125 |
150.5 |
200.6 |
250.8 |
301.0 |
351.1 |
401.3 |
|
XM-DA140 |
260.7 |
347.6 |
433.8 |
521.4 |
608.3 |
695.2 |
|
XM-DA160 |
397.2 |
529.6 |
662.0 |
794.4 |
926.8 |
1059.2 |
|
XM-DA190 |
640.2 |
853.6 |
1067.0 |
1280.4 |
1493.8 |
1707.2 |
|
XM-DA210 |
798.0 |
1064.0 |
1330.0 |
1596.0 |
1862.0 |
2128.0 |
|
XM-DA240 |
1154.3 |
1539.0 |
1923.8 |
2308.5 |
2693.3 |
3078.0 |
|
XM-DA270 |
1755.0 |
2340.0 |
2924.0 |
3510.0 |
4095.0 |
4680.0 |
|
XM-DA300 |
2291.4 |
3055.2 |
3819.0 |
4582.8 |
5346.6 |
6110.4 |
|
XM-DA350 |
3426.0 |
4568.0 |
5710.0 |
6852.0 |
7994.0 |
9136.0 |
|
XM-DA400 |
4872.0 |
6496.0 |
8120.0 |
9744.0 |
11368.0 |
12992.0 |
Company Introduction
Since 2007, WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD has established.
We mainly manufacture XM Angular Stoke Pneumatic Actuators, Pneumatic Ball Valve, Pneumatic Butterfly Valve, Pneumatic/Electrical Control Valve, etc.
Our Service
1. Excellent After-service
2. On-line technical support
3. Fast delivery time
FAQ
Q 1: Modes of shipment?
A 1: By sea, by air, by express, or by railway.
Q 2: Warranty?
A 2: One year quality warranty for free, and lifelong paid service.
Q 3: Installation and training?
A 3: normal video guidance for installation. If necessary, paid overseas engineering service provided.
