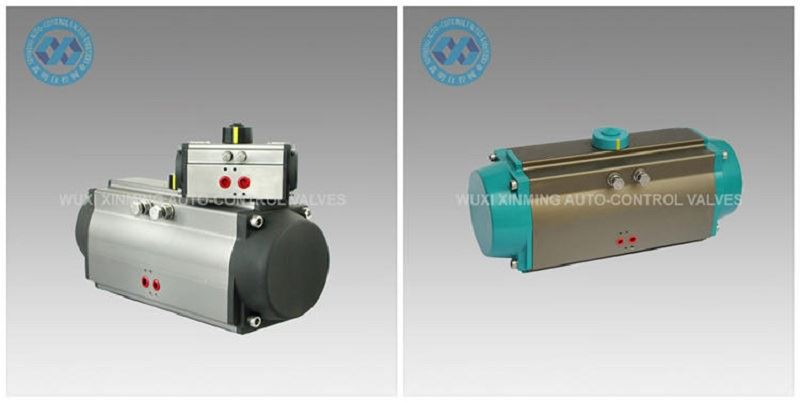

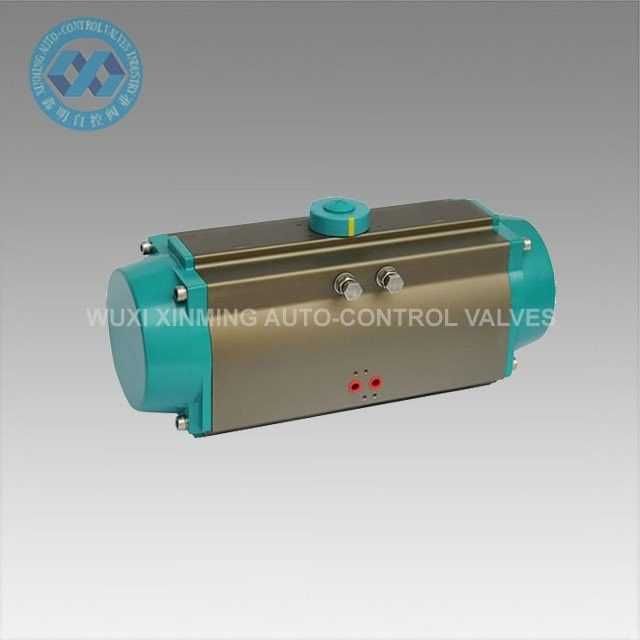

Spring Return Pneumatic Rotary Actuator

Product Introduction

Spring Return Pneumatic Actuators adopt the latest mechanical technology and have good performance.Spring Return Pneumatic Actuator is used to control butterfly valves, ball valves, and machinery with rotary movement automatically. Precision die-casting aluminum alloy double-rack pistons with hard oxidation treatment improve rotary angle accuracy and duty life.

Quick Details

Product Name: Spring Return Pneumatic Actuator

Brand name: XM, or OEM

Actuator size: 32mm-400mm

Rotary angle: 0°~90°(±5°)

Working Temperature Range: -20℃~ +80℃(standard)

-40℃~+80℃(low temperature)

-15℃~150℃(high temperature)

Air supply pressure: 0.2~0.8MPa

Top connection: VDI/VDE3845 NAMUR

Bottom connection: ISO 5211 and DIN3337

Material: Aluminum alloy

Structure: rack and pinion

Actuator body surface treatment: hard anodized

End Cap Color: black gray, black, dark blue, sky blue, red, orange, green,etc.

Certification: CE, ATEX, SIL3, ISO9001:2015

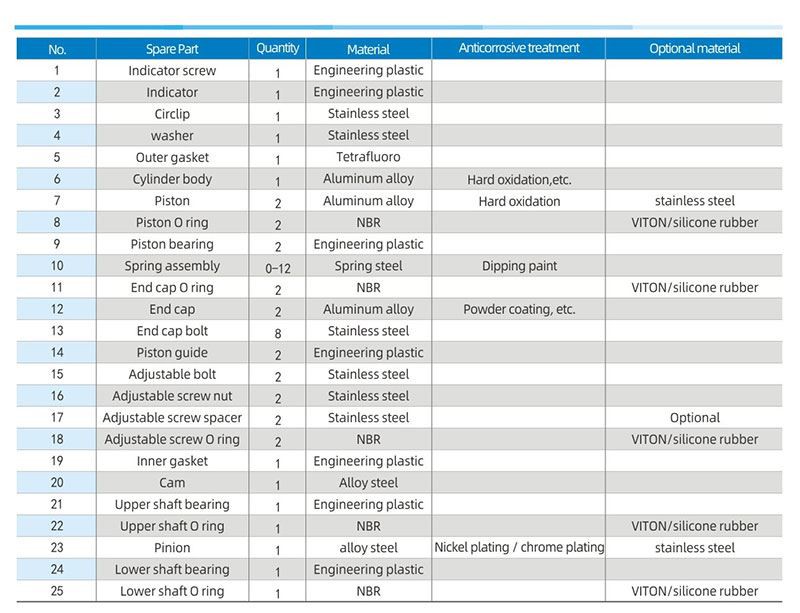

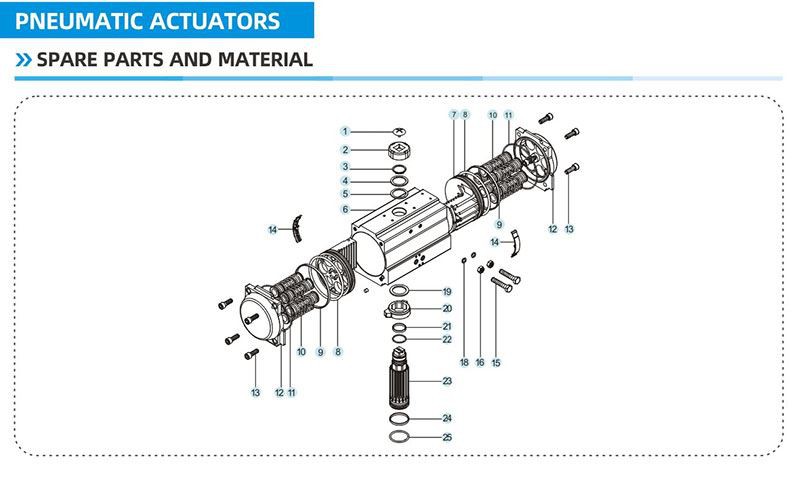

Spare Parts And Material

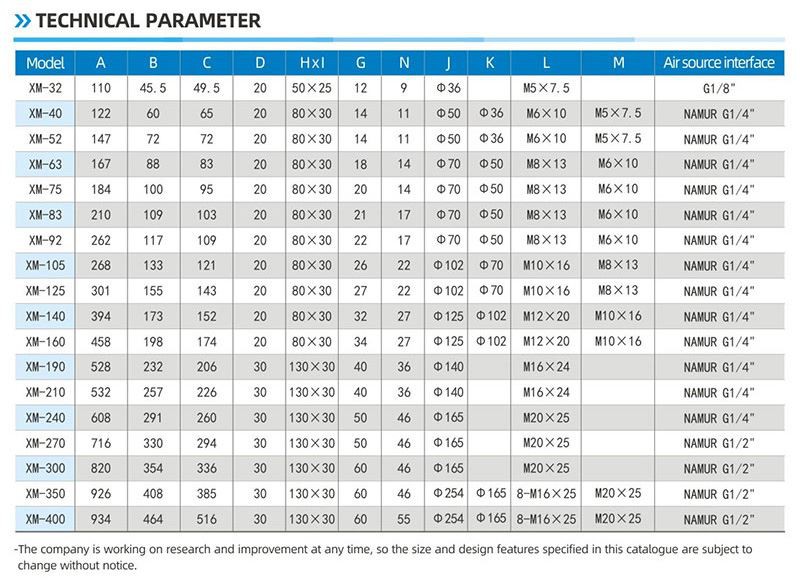

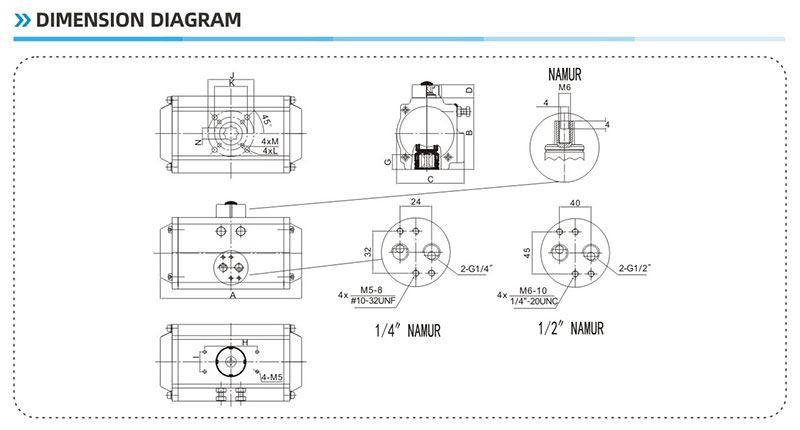

Dimension Diagram

Application

Pneumatic rotary actuators can be applied to various flammable, corrosive, dusty, strong magnetic field, radiation, vibration and corrosion indoor or outdoor environments, and are widely used in electric power, petrochemical, metallurgy, oil, natural gas, towns, buildings and other fields, Chemical industry, oil refining, mining, power plant, metallurgy, construction, medicine, food, natural gas, scientific research, etc.

Our Service

1)7x24 hours hotline

2)Strict quality control

3)Good quality at a favorable price

4)Excellent After-service

5)On-line technical support

6)Fast delivery time

FAQ

Q 1: Payment terms capacity?

A 1: T/T, L/C, Western Union.

Q 2: Trade terms?

A 2: In according with Incoterms 2010, normally with EXW, FOB shanghai, CFR, CIF and DDU.

Q 3: Validity of quotation?

A 3: Within 30 days.

Q 4: Modes of shipment?

A 4: By sea, by air, by express, or by railway.

Q 5: Warranty?

A 5: One year quality warranty for free, and lifelong paid service.

Q 6: Installation and training?

A 6: normal video guidance for installation. If necessary, paid overseas engineering service provided.
