Single Acting Pneumatic Rotary Actuator
video

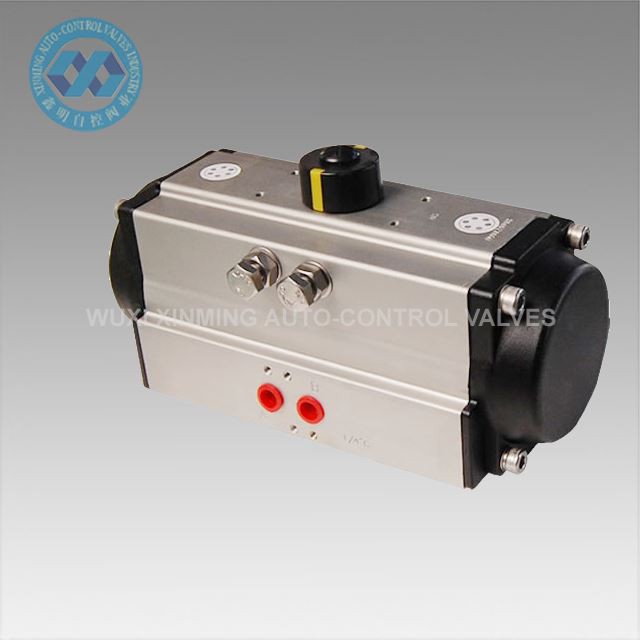

Single Acting Pneumatic Rotary Actuator

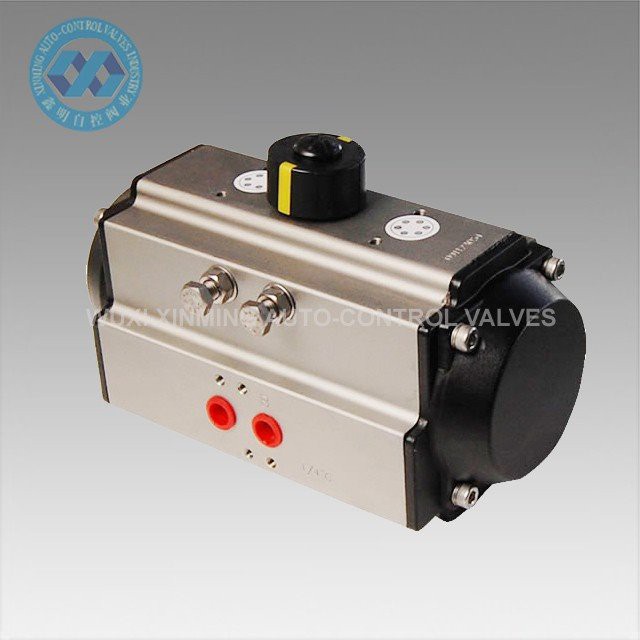

Single Acting Pneumatic Rotary Actuator

Quick Details
Brand name: XM, or OEM
Actuator size: 32mm-400mm
Rotary angle: 0°~90°(±5°)
Working Temperature Range: -20℃~ +80℃(standard)
-40℃~+80℃(low temperature)
-15℃~150℃(high temperature)
Send Inquiry
Chat Now
Description

Product Introduction

Single Acting Pneumatic Actuator is used to control butterfly valves, ball valves, and machinery with rotary movement automatically. Precision die-casting aluminum alloy double-rack pistons with hard oxidation treatment improve rotary angle accuracy and duty life. The actuator body with hard-oxidation can avoid the scratch effectively.

1

Quick Details

Product Name: Single Acting Pneumatic Actuator

Brand name: XM, or OEM

Actuator size: 32mm-400mm

Rotary angle: 0°~90°(±5°)

Working Temperature Range: -20℃~ +80℃(standard)

-40℃~+80℃(low temperature)

-15℃~150℃(high temperature)

Air supply pressure: 0.2~0.8MPa

Top connection: VDI/VDE3845 NAMUR

Bottom connection: ISO 5211 and DIN3337

Material: Aluminum alloy

Structure: rack and pinion, dual rack pistons

Actuator body surface treatment: hard anodized

End Cap Color: black gray, black, dark blue, sky blue, red, orange, green,etc.

Certification: CE, ATEX, SIL3, ISO9001:2015

2 (2)

Technical Parameter

XM SINGLE ACTING ACTUATOR OUTPUT TORQUE TABLE

XM series Single Acting Pneumatic Actuator

Model

Spring
QTY

Spring Output Torque(Nm)

Input air pressure(unit: bar)

3

4

5

6

7

Air pressure output torque(Nm)

0°

90°

0°

90°

0°

90°

0°

90°

0°

90°

0°

90°

XM-SR52

5

4.0

6.2

8.1

5.8

12.1

9.8

6

4.7

7.4

7.3

4.6

11.3

8.6

7

5.5

8.7

6.5

3.3

10.5

7.3

14.5

11.3

8

6.3

9.9

9.7

6.1

13.7

10.1

9

7.1

11.2

8.9

4.8

12.9

8.8

16.9

12.8

10

7.9

12.4

8.1

3.6

12.1

7.6

16.1

11.6

20.1

15.6

11

8.7

13.6

7.3

2.4

11.3

6.4

15.3

10.4

19.3

14.4

12

9.5

14.9

10.5

5.1

14.5

9.1

18.5

13.1

XM-SR63

5

6.8

10.4

14.9

11.3

22.1

18.5

6

8.2

12.5

13.5

9.2

20.7

16.4

7

9.6

14.6

12.1

7.1

19.3

14.3

26.5

21.5

8

10.9

16.7

18.0

12.2

25.2

19.4

9

12.3

18.9

16.6

10.0

23.8

17.2

31.1

24.5

10

13.7

20.9

15.2

8.0

22.4

15.2

29.7

22.5

36.9

29.7

11

15.0

22.9

21.1

13.2

28.4

20.5

35.6

27.7

12

16.4

25.0

19.7

11.1

27.0

18.4

34.2

25.6

XM-SR75

5

10.0

15.0

20.0

15.0

30.0

25.0

6

12.0

18.0

18.0

12.0

28.0

22.0

7

14.0

21.0

16.0

9.0

26.0

19.0

8

16.0

24.0

24.0

16.0

34.0

26.0

9

18.0

27.0

22.0

13.0

32.0

23.0

42.0

33.0

10

20.0

30.0

20.0

10.0

30.0

20.0

40.0

30.0

50.0

40.0

11

22.0

33.0

18.0

7.0

28.0

17.0

38.0

27.0

48.0

37.0

12

24.0

36.0

26.0

14.0

36.0

24.0

46.0

34.0

XM-SR83

5

15.5

23.0

30.5

23.0

46.5

39.0

6

18.6

27.6

27.4

18.4

43.4

34.4

7

21.7

32.2

40.3

29.8

56.3

45.8

8

24.8

36.8

37.2

25.2

53.2

41.2

9

27.9

41.4

34.1

20.6

50.1

36.6

65.1

51.6

10

31.0

46.0

31.0

16.0

47.0

32.0

62.0

47.0

77.0

62.0

11

34.1

50.6

43.9

27.4

58.9

42.4

73.9

57.4

12

37.2

55.2

40.8

22.8

55.8

37.8

70.8

52.8

XM-SR92

5

23.0

33.0

44.6

34.7

67.1

57.2

6

27.6

39.5

40.0

28.1

62.5

50.6

7

32.2

46.1

57.9

44.0

80.4

66.5

8

36.8

52.7

53.3

37.4

75.8

59.9

9

41.4

59.3

48.7

30.8

71.2

53.3

93.8

75.9

10

46.0

65.9

44.1

24.2

66.6

46.7

89.2

69.3

111.7

91.8

11

50.6

72.5

62.0

40.1

84.6

62.7

107.1

85.2

12

55.2

79.1

57.4

33.5

80.0

56.1

102.5

78.6

XM-SR105

5

31.8

49.3

66.0

48.4

98.6

81.0

6

38.1

59.2

59.6

38.5

92.2

71.1

7

44.5

69.0

85.9

61.3

118.5

93.9

8

50.8

78.9

79.5

51.4

112.1

84.0

9

57.2

88.7

73.2

41.6

105.8

74.2

138.4

106.8

10

63.5

98.6

66.8

31.7

99.4

64.3

132.0

96.9

164.5

129.4

11

69.9

108.5

93.1

54.4

125.7

87.0

158.2

119.5

12

76.2

118.3

86.7

44.6

119.3

77.2

151.8

109.7

XM-SR125

5

50

78

100

72

150

122

6

60

94

90

56

140

106

7

70

109

130

91

181

142

8

80

125

120

75

171

126

9

90

140

110

60

161

110

211

161

10

100

156

100

44

151

95

201

145

251

195

11

110

172

141

79

191

129

241

179

12

120

187

131

64

181

114

231

164

XM-SR140

5

86

129

174

131

261

218

6

103

155

157

105

244

192

7

120

181

227

166

314

253

8

138

206

209

141

296

228

9

155

232

192

115

279

202

366

289

10

172

258

175

89

262

176

349

263

436

350

11

189

284

245

150

332

237

585

324

12

206

310

228

124

315

211

402

298

XM-SR160

5

140

193

258

205

390

337

6

167

231

230

166

362

298

7

195

270

334

260

467

393

8

223

308

306

221

439

354

9

251

347

278

183

411

316

543

448

10

279

385

250

144

383

277

515

409

647

541

11

307

424

355

239

487

371

619

503

12

335

462

327

200

459

332

591

464

XM-SR190

5

190

320

451

320

664

533

6

227

384

413

256

626

469

7

265

448

588

405

802

619

8

303

512

550

341

764

555

9

341

576

512

277

726

491

939

704

10

379

640

474

213

688

427

901

640

1114

853

11

417

704

650

363

863

576

1076

789

12

455

768

612

299

825

512

1038

725

XM-SR210

5

261

440

619

439

912

732

6

313

528

566

351

859

644

7

365

616

807

556

1101

850

8

417

704

755

468

1049

762

9

469

792

703

380

997

674

1290

967

10

521

880

651

292

945

586

1238

879

1531

1172

11

573

968

893

498

1186

791

1479

1084

12

625

1056

841

410

1134

703

1427

996

XM-SR240

5

389

583

766

572

1151

957
