Product Introduction
Rack and Pinion Actuator, also known as restricted rotation cylinder, is a rotary actuator used for rotating, opening, closing, mixing, swinging, positioning, steering and more mechanical functions involving restricted rotation.Pneumatic Rack and Pinion Actuator is used to control butterfly valves, ball valves, and machinery with rotary movement automatically.
Quick Details
Product Name: Rack and Pinion Actuator
Brand name: XM, and OEM is also accepted
Actuator size: 32mm-400mm
Rotary angle: 0°~90°(±5°)
Working Temperature Range: -20℃~ +80℃(standard)
-40℃~+80℃(low temperature)
-15℃~150℃(high temperature)
Air supply pressure: 0.2~0.8MPa, 10Mpa max
Top connection: VDI/VDE3845 NAMUR
Bottom connection: ISO 5211 and DIN3337
Material: Aluminum alloy
Certification: CE, ATEX, SIL3, ISO9001:2016
Rack and Pinion Actuator has the characteristics of compact structure, beautiful appearance, stable operation and long service life. All accessories use the best anti-corrosion treatment technology, which can adapt to various harsh working conditions. Its high and low temperature and various special stroke actuators have good performance in various applications.

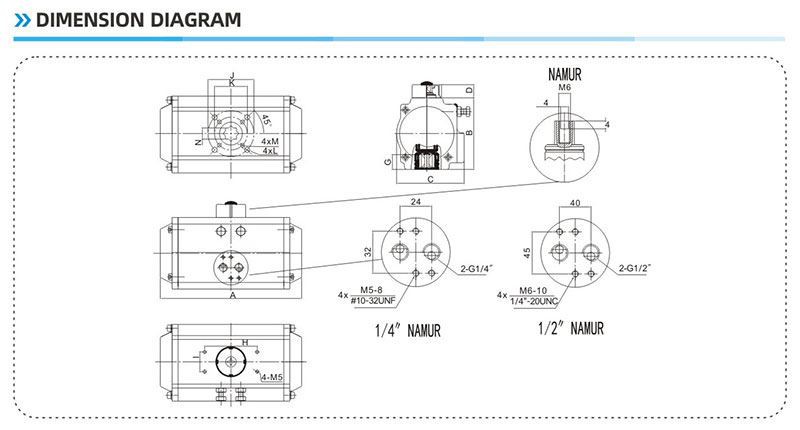

Dimension Diagram
Advantage
1) All important spare parts would be treated with hard-anodization to enhance the strength to a great degree to ensure the good performance and duty life.
2) All process are one-time-forming by CNC to ensure the process accuracy and duty life.
