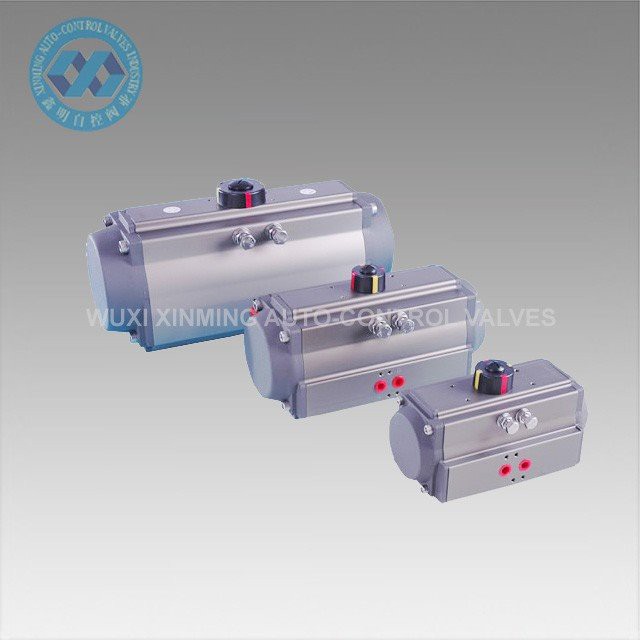

Pneumatic Rotary Actuator

Product Introduction

Pneumatic rotary actuators use compressed air to generate operating energy. Some are designed for remote control of valves. Pneumatic rotary actuators are durable, provide high forces related to their size, and can be used in hazardous environments.

Quick Details

Product Name: Pneumatic Rotary Actuator

Brand name: XM, and OEM is also accepted

Actuator size: 32mm-400mm

Rotary angle: 0°~90°(±5°)

Working Temperature Range: -20℃~ +80℃(standard)

-40℃~+80℃(low temperature)

-15℃~150℃(high temperature)

Air supply pressure: 0.2~0.8MPa, 10Mpa max

Top connection: VDI/VDE3845 NAMUR

Bottom connection: ISO 5211 and DIN3337

Material: Aluminum alloy

Structure: rack and pinion, dual rack pistons

Actuator body surface treatment: hard anodized

End Cap Color: black gray, black, dark blue, sky blue, red, orange, green,etc.

Certification: CE, ATEX, SIL3, ISO9001:2016

Spare Parts And Material

Advantage

1) All important spare parts would be treated with hard-anodization to enhance the strength to a great degree to ensure the good performance and duty life.

2) All process are one-time-forming by CNC to ensure the process accuracy and duty life.

Application

Pneumatic rotary actuators can be applied to various flammable, corrosive, dusty, strong magnetic field, radiation, vibration and corrosion indoor or outdoor environments, and are widely used in electric power, petrochemical, metallurgy, oil, natural gas, towns, buildings and other fields. , Chemical industry, oil refining, mining, power plant, metallurgy, construction, medicine, food, natural gas, scientific research, etc.

Supply Ability

Supply Ability: 10000 units per month Pneumatic Rotary Actuator

Packing & Delivery

Packing detail: 1). separate carton with foam packing inside

2). plywood case for ocean shipment

3). Plywood pallet for air shipment

Port of departure: Shanghai, China

Lead Time:

Our Service

1)7x24 hours hotline

2)Strict quality control

3)Good quality at a favorable price

4)Excellent After-service

5)On-line technical support

6)Fast delivery time
