Description
Product Introduction

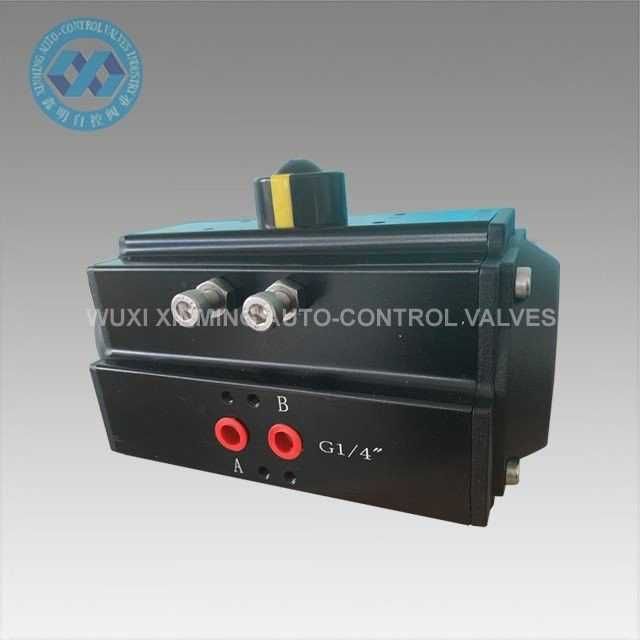

Pneumatic Rack and Pinion Actuator, also known as restricted rotation cylinder, is a rotary actuator used for rotating, opening, closing, mixing, swinging, positioning, steering and more mechanical functions involving restricted rotation.Pneumatic Rack and Pinion Actuator is used to control butterfly valves, ball valves, and machinery with rotary movement automatically. Precision die-casting aluminum alloy double-rack pistons with hard oxidation treatment improve rotary angle accuracy and duty life. The actuator body with hard-oxidation can avoid the scratch effectively.
Quick Details
Product Name: Pneumatic Rack and Pinion Actuator
Brand name: XM, and OEM is also accepted
Actuator size: 32mm-400mm
Rotary angle: 0°~90°(±5°)
Working Temperature Range: -20℃~ +80℃(standard)
-40℃~+80℃(low temperature)
-15℃~150℃(high temperature)
Air supply pressure: 0.2~0.8MPa, 10Mpa max
Top connection: VDI/VDE3845 NAMUR
Bottom connection: ISO 5211 and DIN3337
Material: Aluminum alloy
Structure: rack and pinion, dual rack pistons
Actuator body surface treatment: black anodized
End Cap Color: black gray, black, dark blue, sky blue, red, orange, green,etc.
Certification: CE, ATEX, SIL3, ISO9001:2016
Technical Parameter
XM PNEUMATIC RACK AND PINION ACTUATOR OUTPUT TORQUE TABLE
Model | Input air pressure(unit:bar) | |||||
3 | 4 | 5 | 6 | 7 | 8 | |
Air pressure output torque(N.m) | ||||||
XM-DA32 | 4.6 | 6.1 | 7.6 | 9.2 | 10.7 | 12.2 |
XM-DA40 | 7.2 | 9.6 | 12.0 | 14.4 | 16.8 | 19.2 |
XM-DA52 | 12.0 | 16.0 | 20.0 | 24.0 | 28.0 | 32.0 |
XM-DA63 | 21.7 | 28.9 | 36.0 | 43.4 | 50.6 | 57.8 |
XM-DA75 | 30.0 | 40.0 | 50.0 | 60.0 | 70.0 | 80.0 |
XM-DA83 | 46.8 | 62.4 | 78.0 | 93.6 | 109.2 | 124.8 |
XM-DA92 | 67.6 | 90.1 | 112.6 | 135.2 | 157.7 | 180.2 |
XM-DA105 | 97.7 | 130.3 | 162.9 | 195.5 | 228.0 | 260.6 |
XM-DA125 | 150.5 | 200.6 | 250.8 | 301.0 | 351.1 | 401.3 |
XM-DA140 | 260.7 | 347.6 | 433.8 | 521.4 | 608.3 | 695.2 |
XM-DA160 | 397.2 | 529.6 | 662.0 | 794.4 | 926.8 | 1059.2 |
XM-DA190 | 640.2 | 853.6 | 1067.0 | 1280.4 | 1493.8 | 1707.2 |
XM-DA210 | 798.0 | 1064.0 | 1330.0 | 1596.0 | 1862.0 | 2128.0 |
XM-DA240 | 1154.3 | 1539.0 | 1923.8 | 2308.5 | 2693.3 | 3078.0 |
XM-DA270 | 1755.0 | 2340.0 | 2924.0 | 3510.0 | 4095.0 | 4680.0 |
XM-DA300 | 2291.4 | 3055.2 | 3819.0 | 4582.8 | 5346.6 | 6110.4 |
XM-DA350 | 3426.0 | 4568.0 | 5710.0 | 6852.0 | 7994.0 | 9136.0 |
XM-DA400 | 4872.0 | 6496.0 | 8120.0 | 9744.0 | 11368.0 | 12992.0 |
Spare Parts And Material
Dimension Diagram
Supply Ability
Supply Ability: 10000 units per month Pneumatic Rotary Actuator
Packing & Delivery
Packing detail: 1). separate carton with foam packing inside
2). plywood case for ocean shipment
3). Plywood pallet for air shipment
Port of departure: Shanghai, China
Lead Time:
Quantity(Units) | 1-50 | 51-1000 | 1001-10000 | ＞10001 |
Est. Time(days) | Goods in stock | 7 | 20 | To be negotiated |
Advantage
1) All important spare parts would be treated with hard-anodization to enhance the strength to a great degree to ensure the good performance and duty life.
2) All process are one-time-forming by CNC to ensure the process accuracy and duty life.
FAQ
Q 1: Payment terms capacity?
A 1: T/T, L/C, Western Union.
Q 2: Trade terms?
A 2: In according with Incoterms 2010, normally with EXW, FOB shanghai, CFR, CIF and DDU.
Q 3: Validity of quotation?
A 3: Within 30 days.
Q 4: Modes of shipment?
A 4: By sea, by air, by express, or by railway.
Q 5: Warranty?
A 5: One year quality warranty for free, and lifelong paid service.
Q 6: Installation and training?
A 6: normal video guidance for installation. If necessary, paid overseas engineering service provided.
