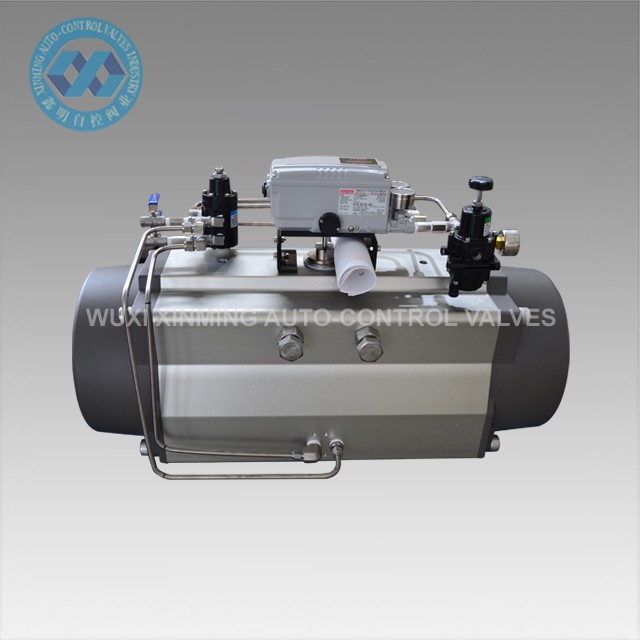

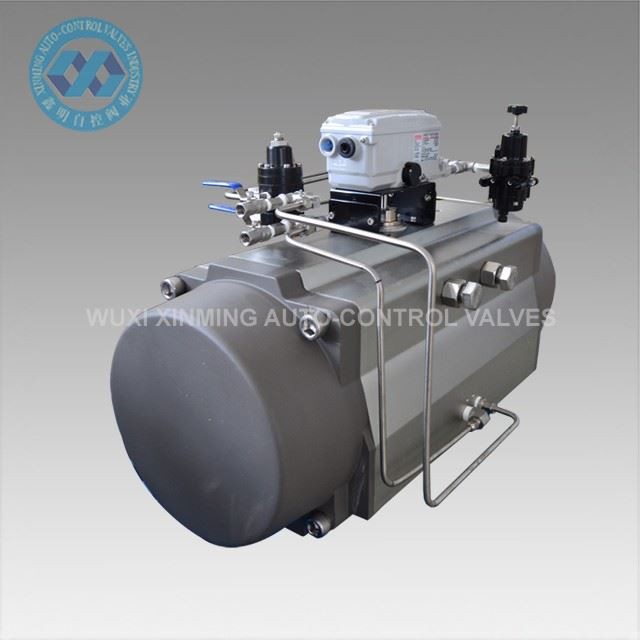

Double acting rack and pinion pneumatic actuator ball valve butterfly valve use compressed air to generate operating energy. Some are designed for remote control of valves. Double acting rack and pinion pneumatic actuator ball valve butterfly valve are durable, provide high forces related to their size, and can be used in hazardous environments.
Quick Details
Product Name: Pneumatic Rotary Actuator
Brand name: XM, and OEM is also accepted
Actuator size: 32mm-400mm
Rotary angle: 0°~90°(±5°)
Working Temperature Range: -20℃~ +80℃(standard)
-40℃~+80℃(low temperature)
-15℃~150℃(high temperature)
Air supply pressure: 0.2~0.8MPa, 10Mpa max
Top connection: VDI/VDE3845 NAMUR
Bottom connection: ISO 5211 and DIN3337
Material: Aluminum alloy
Structure: rack and pinion, dual rack pistons
Actuator body surface treatment: hard anodized
End Cap Color: black gray, black, dark blue, sky blue, red, orange, green,etc.
Certification: CE, ATEX, SIL3, ISO9001:2016
Technical Parameter
XM DOUBLE ACTING PNEUMATIC ROTARY ACTUATOR OUTPUT TORQUE TABLE
| Model | Input air pressure(unit:bar) | |||||
| 3 | 4 | 5 | 6 | 7 | 8 | |
| Air pressure output torque(N.m) | ||||||
| XM-DA32 | 4.6 | 6.1 | 7.6 | 9.2 | 10.7 | 12.2 |
| XM-DA40 | 7.2 | 9.6 | 12.0 | 14.4 | 16.8 | 19.2 |
| XM-DA52 | 12.0 | 16.0 | 20.0 | 24.0 | 28.0 | 32.0 |
| XM-DA63 | 21.7 | 28.9 | 36.0 | 43.4 | 50.6 | 57.8 |
| XM-DA75 | 30.0 | 40.0 | 50.0 | 60.0 | 70.0 | 80.0 |
| XM-DA83 | 46.8 | 62.4 | 78.0 | 93.6 | 109.2 | 124.8 |
| XM-DA92 | 67.6 | 90.1 | 112.6 | 135.2 | 157.7 | 180.2 |
| XM-DA105 | 97.7 | 130.3 | 162.9 | 195.5 | 228.0 | 260.6 |
| XM-DA125 | 150.5 | 200.6 | 250.8 | 301.0 | 351.1 | 401.3 |
| XM-DA140 | 260.7 | 347.6 | 433.8 | 521.4 | 608.3 | 695.2 |
| XM-DA160 | 397.2 | 529.6 | 662.0 | 794.4 | 926.8 | 1059.2 |
| XM-DA190 | 640.2 | 853.6 | 1067.0 | 1280.4 | 1493.8 | 1707.2 |
| XM-DA210 | 798.0 | 1064.0 | 1330.0 | 1596.0 | 1862.0 | 2128.0 |
| XM-DA240 | 1154.3 | 1539.0 | 1923.8 | 2308.5 | 2693.3 | 3078.0 |
| XM-DA270 | 1755.0 | 2340.0 | 2924.0 | 3510.0 | 4095.0 | 4680.0 |
| XM-DA300 | 2291.4 | 3055.2 | 3819.0 | 4582.8 | 5346.6 | 6110.4 |
| XM-DA350 | 3426.0 | 4568.0 | 5710.0 | 6852.0 | 7994.0 | 9136.0 |
| XM-DA400 | 4872.0 | 6496.0 | 8120.0 | 9744.0 | 11368.0 | 12992.0 |

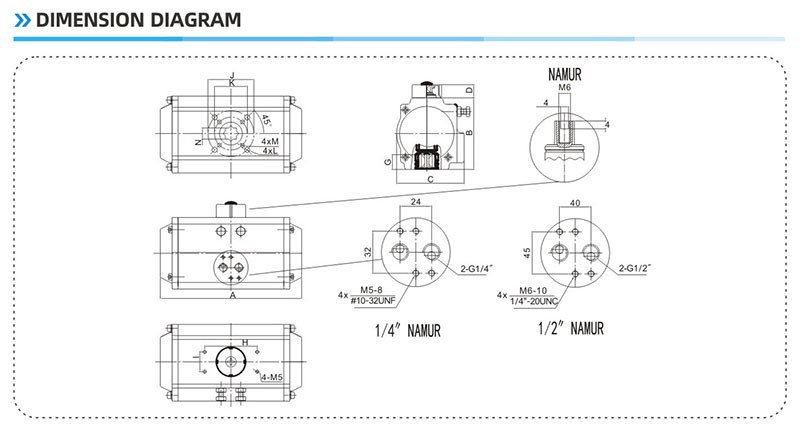

Dimension Diagram

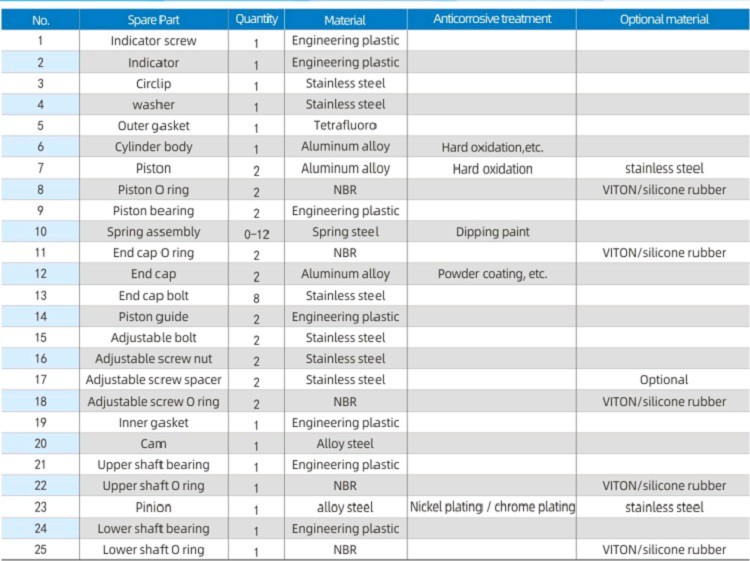

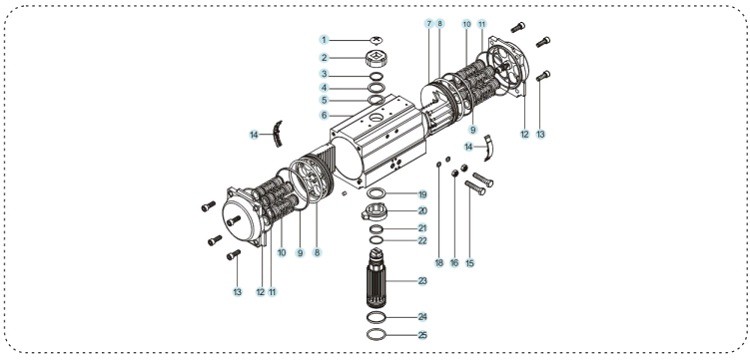

Spare Parts And Material
Advantage
1) All important spare parts would be treated with hard-anodization to enhance the strength to a great degree to ensure the good performance and duty life.
2) All process are one-time-forming by CNC to ensure the process accuracy and duty life.
Application
Pneumatic rotary actuators can be applied to various flammable, corrosive, dusty, strong magnetic field, radiation, vibration and corrosion indoor or outdoor environments, and are widely used in electric power, petrochemical, metallurgy, oil, natural gas, towns, buildings and other fields. , Chemical industry, oil refining, mining, power plant, metallurgy, construction, medicine, food, natural gas, scientific research, etc.
Supply Ability
Supply Ability: 10000 units per month Pneumatic Rotary Actuator
Packing & Delivery
Packing detail: 1). separate carton with foam packing inside
2). plywood case for ocean shipment
3). Plywood pallet for air shipment
Port of departure: Shanghai, Ningbo,etc. China
Lead Time:
| Quantity(Units) | 1-50 | 51-1000 | 1001-10000 | ＞10001 |
| Est. Time(days) | Goods in stock | 7 | 20 | To be negotiated |
