Product Introduction

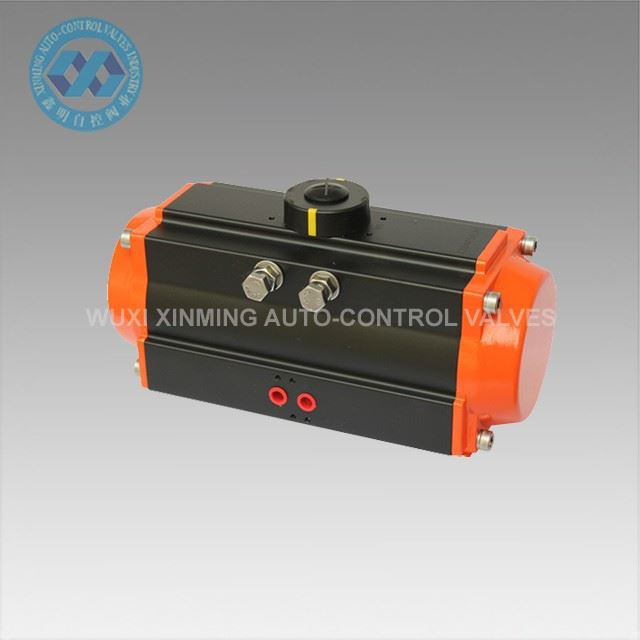

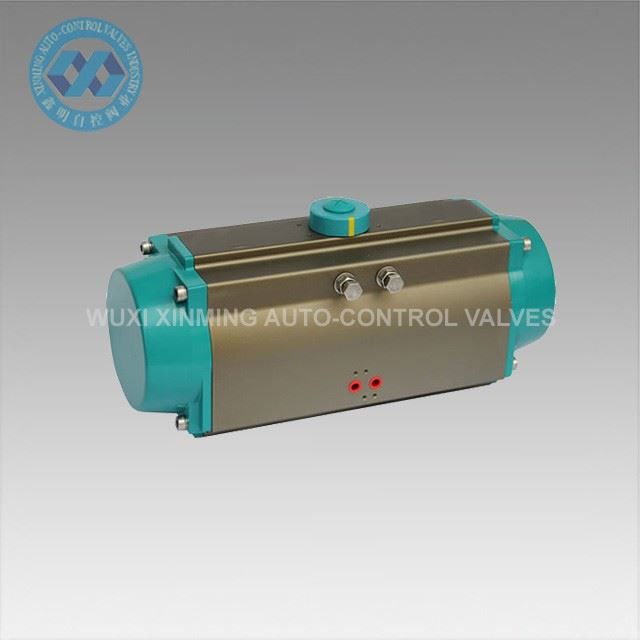

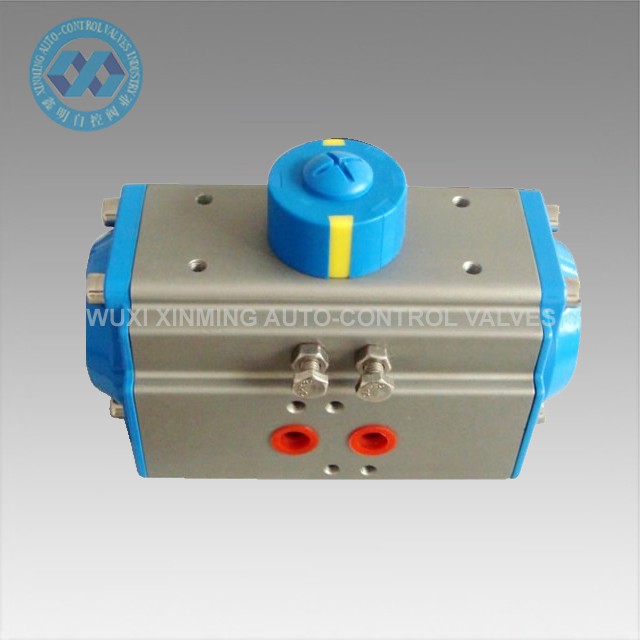

Single Acting Pneumatic Valve Actuator is the hot sale products in 2022,which is with compact design, long life service, high quality, gear and gear rack. This product is used for 90° rotational valves, such as, Ball vales, butterfly valves, plug valves etc. Our company puts product quality as the first task, adopting the most advanced production equipment and technology, much better than the similar product factories on both product quality and performance.
Technical Parameter
Features |
1. Dual Position Rack |
2. Integrated Design |
3. High Output Torque |
4. Accurate Rotary Angle |
5. Long Service Life |
6. Stainless steel fasteners for long term corrosion resistance |
7. The interface between piston, pinion and body is made of low friction material |
Specifications |
1). Pressure Range: Max. Working pressure 10bar |
2). Air pressure: 2.5bar~8bar |
3). Adjustment Range: 90° ± 5° |
4). Ambient temperature: -20 ~ +90° C |
5). Type: Single-acting (spring return), double-acting |
6). Optional accessories: Solenoid valves, limited switch, electric position |
7). Lubrication: All the moving parts are coated with lubricants, extending their service life |
8). Life Time: One million time |
Standards |
A. Interface between actuator and valve: 4 or 8 bolt orifices according to DIN/ISO |
5211, the axle assembles orifice according to DIN 3337 |
B. Interface between actuator and control valve: 7100 D/S-7350 D/S according to |
NAMUR or VDI/VDE 3845, 7040 D/S-7090 D/S connecting via the adapter plate |
C. Interface between actuator and signal box: According to VDI/VDE 3845 |
Introduction |
I. Actuator Body |
Boy material is alumina alloy. Internal and external surface are treated with anodize oxidation and polishing. Outer surface is nickle plated so that the anti-corrosion fiction of actuator and minimum friction against pistons can be guaranteed. |
II. End Cover |
End cover material is die-casting aluminum End cover is treated with epoxy polyester so as to best guarantee the anti-corrosion performance. |
III. Drive Shaft |
The drive shaft material is medium carbon steel with fine processing and nickle plating so that the pistons have better quality in anti-corrosion, anti-friction, etc. |
IV. Piston |
Piston material is die-casting aluminum alloy. Maximum torque can be output when the actuator is actuated with certain pressure. |
V. Piston Seal |
NBR-70 rubber sealing is applied to ensure the normal and reliable performance of actuator under normal temperature. FPM can be also applied according to clients' requirements. |
VI. Travel Adjustment |
Plus/Minus 5 degree travel can be adjusted through the two bolts. |
Application
Pneumatic Rotary Actuators can be suitable for various flammable, corrosive, duty, strong magnetic field, radiation, vibration corrosive environments indoor or outdoor, which are widely used in the field of electric power, petrochemical, metallurgy, petroleum, gas, town, construction drainage, chemical industry, oil refining, mining, power plant, metallurgy, architecture, medicine, food, gas, scientific research, etc.
