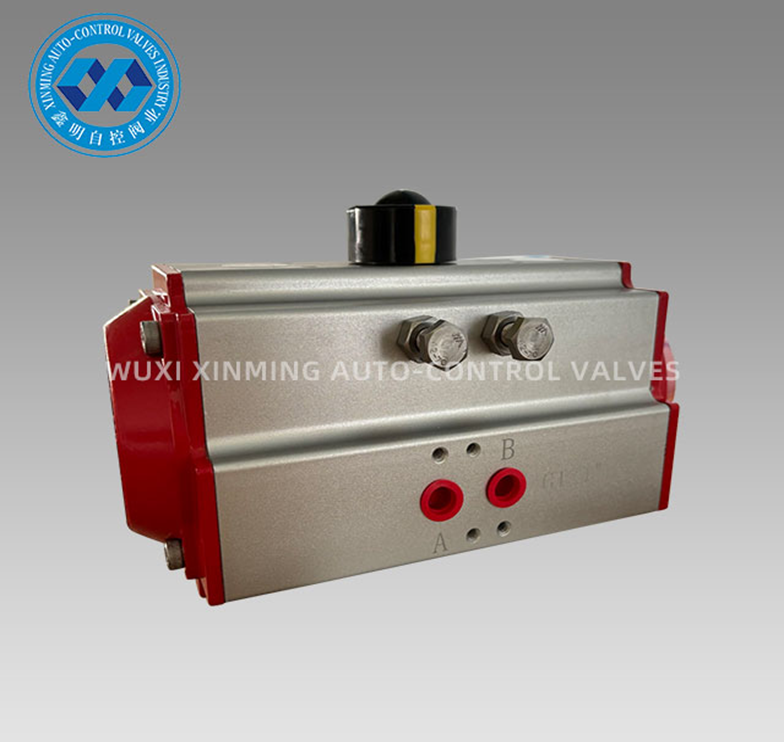

Introduction:
The angle travel pneumatic actuator is an innovative and efficient solution for numerous industrial applications. This actuator converts air pressure into rotary motion to move valve mechanisms in pipelines, tanks, and other process systems. It is a versatile tool that can handle a range of stroke lengths and torque requirements.
The angle travel pneumatic actuator is designed with precise control, durability, and reliability in mind. The actuator's construction includes high-quality materials, such as aluminum alloy, stainless steel, and carbon steel, which ensure its longevity and resistance to corrosion. Additionally, the actuator's compact size, low weight, and easy installation make it a desirable choice for various jobs.
One of the significant advantages of the angle travel pneumatic actuator is its high-speed response. The actuator is highly responsive, making it efficient in emergency shutdown situations and other critical applications. Its capability to deliver quick, precise movements at any speed makes it a preferred choice for industries that require high accuracy and strict process control, such as wastewater treatment, petrochemicals, refineries, and pharmaceuticals.
Another impressive feature of the angle travel pneumatic actuator is its versatility. It can handle a range of strokes and torques, making it suitable for numerous industrial applications. Furthermore, the actuator's adjustable travel stops and cam settings enable it to perform a wide range of tasks. This flexibility allows operators to tailor the actuator to their specific requirement, which provides better process control and system performance.
The angle travel pneumatic actuator is an excellent tool for industries seeking an efficient, durable, and versatile solution for their valve control automation needs. Its precise control, reliability, and high-speed response make it a valuable addition to numerous processes, ensuring enhanced process control, efficiency, and productivity.
Technical Parameter
XM DOUBLE ACTING PNEUMATIC ROTARY ACTUATOR OUTPUT TORQUE TABLE
| Model | Input air pressure(unit:bar) | |||||
| 3 | 4 | 5 | 6 | 7 | 8 | |
| Air pressure output torque(N.m) | ||||||
| XM-DA32 | 4.6 | 6.1 | 7.6 | 9.2 | 10.7 | 12.2 |
| XM-DA40 | 7.2 | 9.6 | 12.0 | 14.4 | 16.8 | 19.2 |
| XM-DA52 | 12.0 | 16.0 | 20.0 | 24.0 | 28.0 | 32.0 |
| XM-DA63 | 21.7 | 28.9 | 36.0 | 43.4 | 50.6 | 57.8 |
| XM-DA75 | 30.0 | 40.0 | 50.0 | 60.0 | 70.0 | 80.0 |
| XM-DA83 | 46.8 | 62.4 | 78.0 | 93.6 | 109.2 | 124.8 |
| XM-DA92 | 67.6 | 90.1 | 112.6 | 135.2 | 157.7 | 180.2 |
| XM-DA105 | 97.7 | 130.3 | 162.9 | 195.5 | 228.0 | 260.6 |
| XM-DA125 | 150.5 | 200.6 | 250.8 | 301.0 | 351.1 | 401.3 |
| XM-DA140 | 260.7 | 347.6 | 433.8 | 521.4 | 608.3 | 695.2 |
| XM-DA160 | 397.2 | 529.6 | 662.0 | 794.4 | 926.8 | 1059.2 |
| XM-DA190 | 640.2 | 853.6 | 1067.0 | 1280.4 | 1493.8 | 1707.2 |
| XM-DA210 | 798.0 | 1064.0 | 1330.0 | 1596.0 | 1862.0 | 2128.0 |
| XM-DA240 | 1154.3 | 1539.0 | 1923.8 | 2308.5 | 2693.3 | 3078.0 |
| XM-DA270 | 1755.0 | 2340.0 | 2924.0 | 3510.0 | 4095.0 | 4680.0 |
| XM-DA300 | 2291.4 | 3055.2 | 3819.0 | 4582.8 | 5346.6 | 6110.4 |
| XM-DA350 | 3426.0 | 4568.0 | 5710.0 | 6852.0 | 7994.0 | 9136.0 |
| XM-DA400 | 4872.0 | 6496.0 | 8120.0 | 9744.0 | 11368.0 | 12992.0 |
Our Service
1) 7x24 hours hotline
2) Strict quality control
3) Good quality at a favorable price
4)Excellent After-service
5)On-line technical support
6)Fast delivery time
