Product Introduction
90 degree pneumatic rotary actuator adopts advanced technology, guaranteed quality, high cost performance, supports non-standard customization, high quality, professional production equipment, mature production technology.
Quick Details
Product Name: 90 degree pneumatic rotary actuator
Brand name: XM, and OEM is also accepted
Actuator size: 32mm-400mm
Rotary angle: 0°~90°(±5°)
Working Temperature Range: -20℃~ +80℃(standard)
-40℃~+80℃(low temperature)
-15℃~150℃(high temperature)
Air supply pressure: 0.2~0.8MPa, 10Mpa max
Top connection: VDI/VDE3845 NAMUR
Bottom connection: ISO 5211 and DIN3337
Material: Aluminum alloy
Structure: rack and pinion, dual rack pistons
Actuator body surface treatment: hard anodized, or dip oxidation
End Cap Color: black gray, black, dark blue, sky blue, red, orange, green,etc.
Certification: CE, ATEX, SIL3, ISO9001:2016

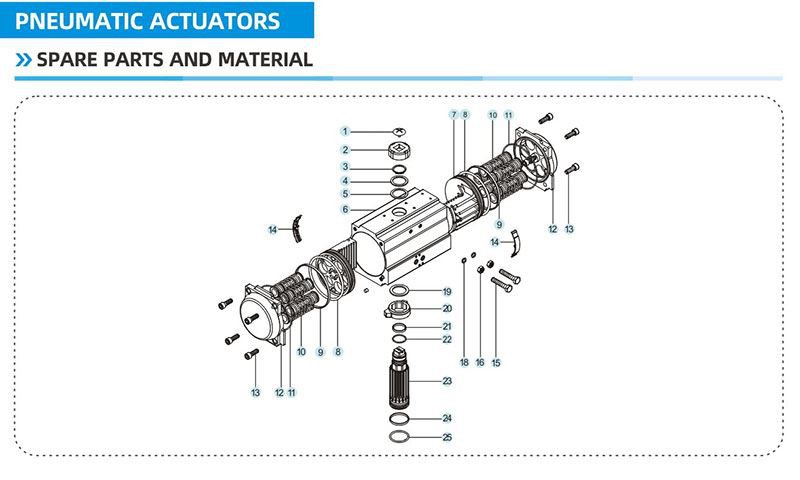

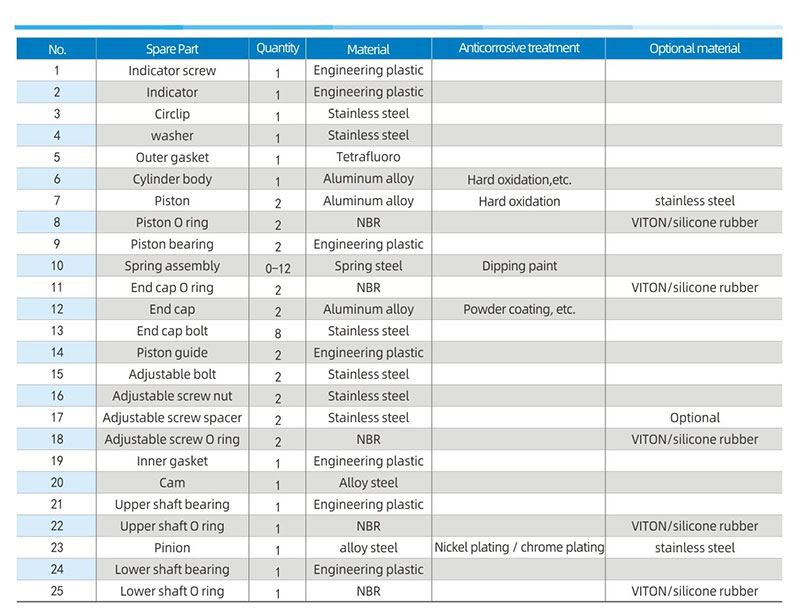

Spare Parts And Material

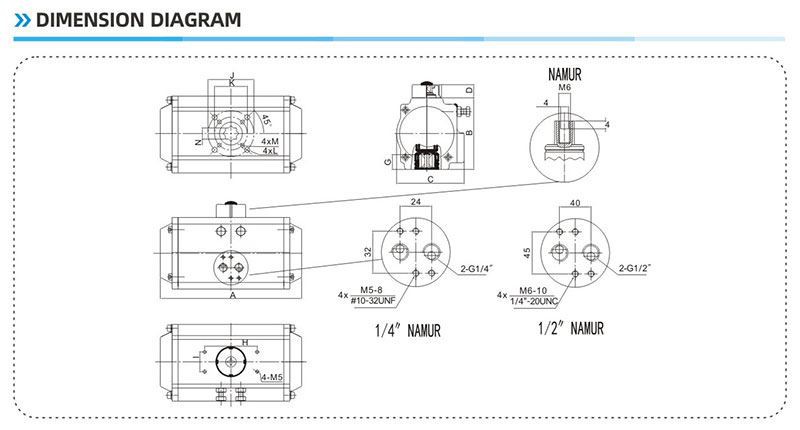

Dimension Diagram
Advantage
1) All important spare parts would be treated with hard-anodization to enhance the strength to a great degree to ensure the good performance and duty life.
2) All process are one-time-forming by CNC to ensure the process accuracy and duty life.
