Description
Product Introduction

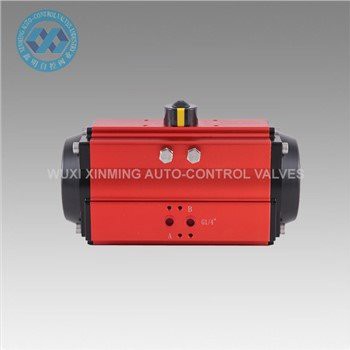

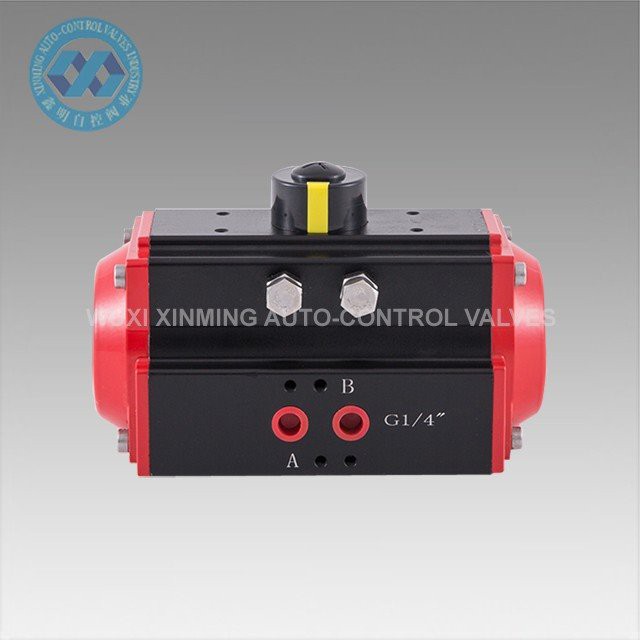

90 degree Pneumatic Actuators have unique styles, advanced technology, precision manufacturing, economical and compact design, and can be directly equipped with other accessories to improve efficiency and economy.
Quick Details
Product Name: 90 degree Pneumatic Actuator
Brand name: XM, and OEM is also accepted
Actuator size: 32mm-400mm
Rotary angle: 0°~90°(±5°)
Working Temperature Range: -20℃~ +80℃(standard)
-40℃~+80℃(low temperature)
-15℃~150℃(high temperature)
Air supply pressure: 0.2~0.8MPa, 10Mpa max
Top connection: VDI/VDE3845 NAMUR
Bottom connection: ISO 5211 and DIN3337
Material: Aluminum alloy
Structure: rack and pinion, dual rack pistons
Actuator body surface treatment: hard anodized, or dip oxidation
End Cap Color: black gray, black, dark blue, sky blue, red, orange, green,etc.
Certification: CE, ATEX, SIL3, ISO9001:2016
Technical Parameter
XM 90 DEGREE PNEUMATIC ACTUATOR OUTPUT TORQUE TABLE
Model | Input air pressure(unit:bar) | |||||
3 | 4 | 5 | 6 | 7 | 8 | |
Air pressure output torque(N.m) | ||||||
XM-DA32 | 4.6 | 6.1 | 7.6 | 9.2 | 10.7 | 12.2 |
XM-DA40 | 7.2 | 9.6 | 12.0 | 14.4 | 16.8 | 19.2 |
XM-DA52 | 12.0 | 16.0 | 20.0 | 24.0 | 28.0 | 32.0 |
XM-DA63 | 21.7 | 28.9 | 36.0 | 43.4 | 50.6 | 57.8 |
XM-DA75 | 30.0 | 40.0 | 50.0 | 60.0 | 70.0 | 80.0 |
XM-DA83 | 46.8 | 62.4 | 78.0 | 93.6 | 109.2 | 124.8 |
XM-DA92 | 67.6 | 90.1 | 112.6 | 135.2 | 157.7 | 180.2 |
XM-DA105 | 97.7 | 130.3 | 162.9 | 195.5 | 228.0 | 260.6 |
XM-DA125 | 150.5 | 200.6 | 250.8 | 301.0 | 351.1 | 401.3 |
XM-DA140 | 260.7 | 347.6 | 433.8 | 521.4 | 608.3 | 695.2 |
XM-DA160 | 397.2 | 529.6 | 662.0 | 794.4 | 926.8 | 1059.2 |
XM-DA190 | 640.2 | 853.6 | 1067.0 | 1280.4 | 1493.8 | 1707.2 |
XM-DA210 | 798.0 | 1064.0 | 1330.0 | 1596.0 | 1862.0 | 2128.0 |
XM-DA240 | 1154.3 | 1539.0 | 1923.8 | 2308.5 | 2693.3 | 3078.0 |
XM-DA270 | 1755.0 | 2340.0 | 2924.0 | 3510.0 | 4095.0 | 4680.0 |
XM-DA300 | 2291.4 | 3055.2 | 3819.0 | 4582.8 | 5346.6 | 6110.4 |
XM-DA350 | 3426.0 | 4568.0 | 5710.0 | 6852.0 | 7994.0 | 9136.0 |
XM-DA400 | 4872.0 | 6496.0 | 8120.0 | 9744.0 | 11368.0 | 12992.0 |
Spare Parts And Material
Dimension Diagram
Feature
-The structure is a compact rack and pinion pneumatic actuator.
-Used for quarter-turn valves, ball valves, butterfly valves and plug valves.
-High-quality aluminum alloy, hard anodized surface + Teflon.
-High-end products, excellent quality, and perfect certification system.
-All products are strictly tested when they leave the factory, and each actuator is marked with a production code for easy identification and tracking services.
Advantage
1) All important spare parts would be treated with hard-anodization to enhance the strength to a great degree to ensure the good performance and duty life.
2) All process are one-time-forming by CNC to ensure the process accuracy and duty life.
Supply Ability
Supply Ability: 10000 units per month Pneumatic Rotary Actuator
Packing & Delivery
Packing detail: 1). separate carton with foam packing inside
2). plywood case for ocean shipment
3). Plywood pallet for air shipment
Port of departure: Shanghai, China
Lead Time:
Quantity(Units) | 1-50 | 51-1000 | 1001-10000 | ＞10001 |
Est. Time(days) | Goods in stock | 7 | 20 | To be negotiated |
