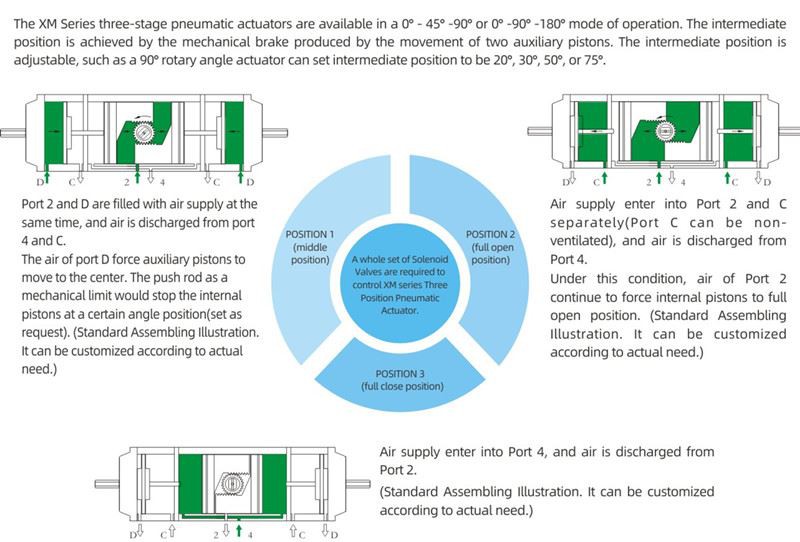

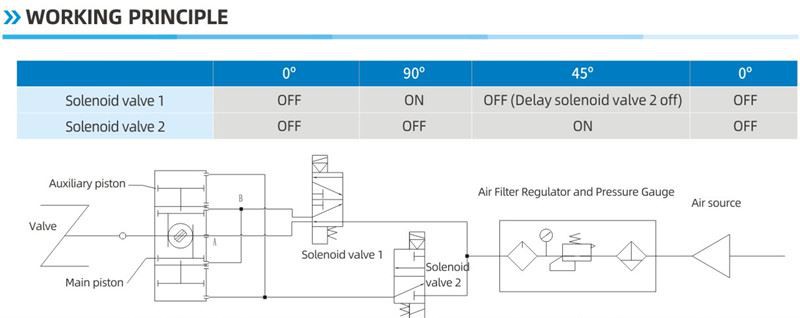

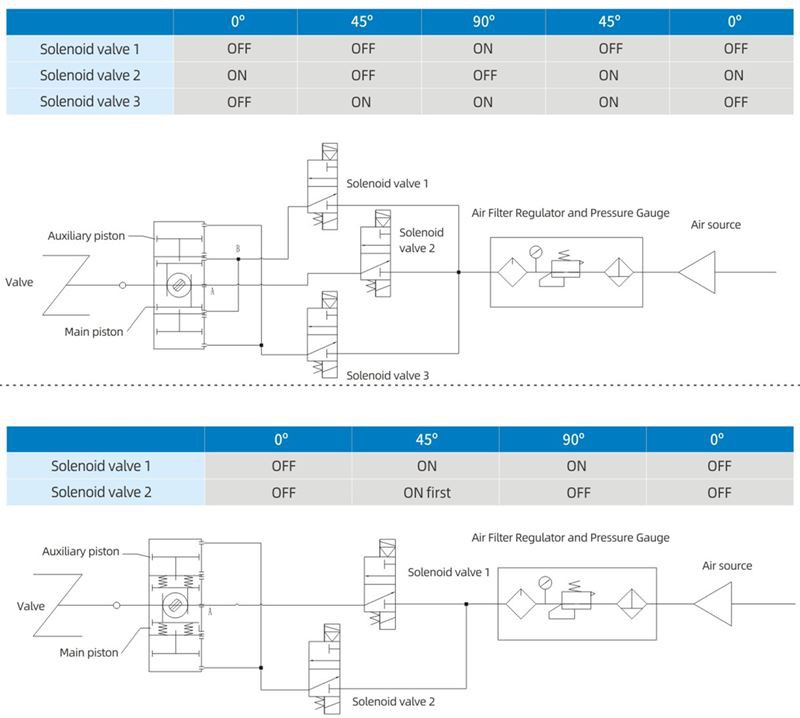

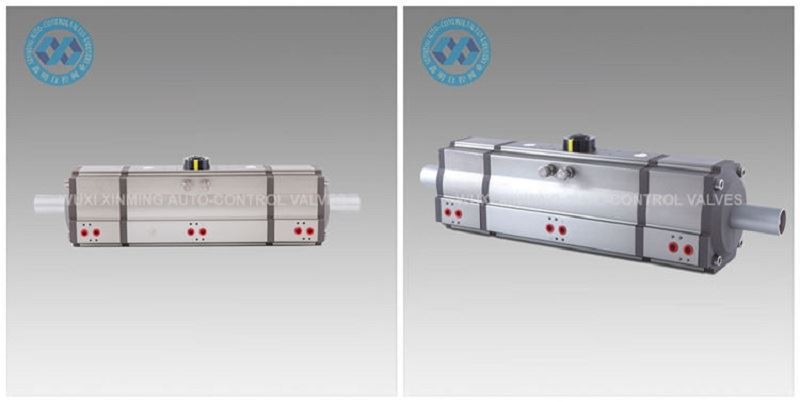

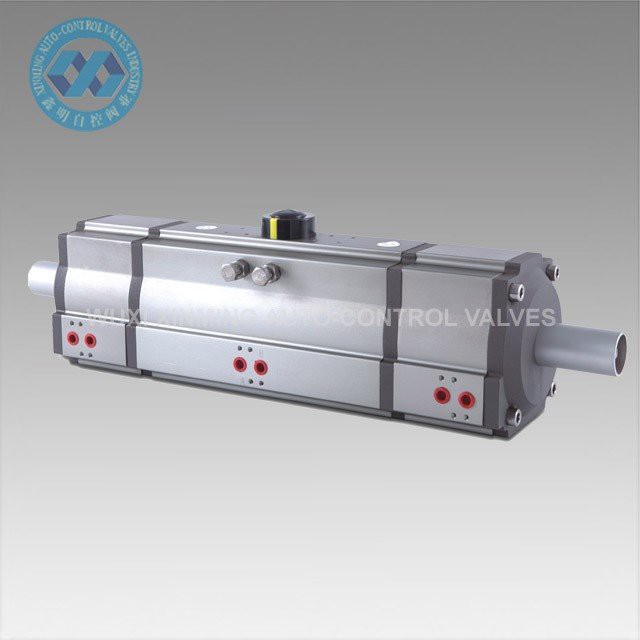

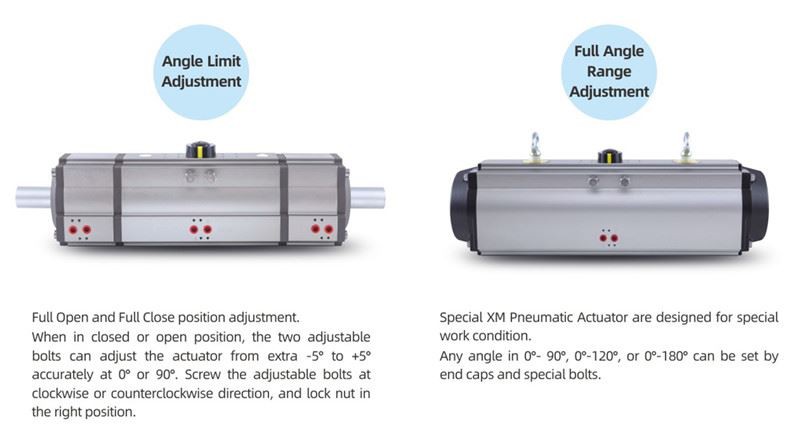

The XM Series three-stage pneumatic actuators are available in 0°- 45°-90° or 0° -90° -180° mode of operation. The intermediate position is achieved by the mechanical brake produced by the movement of two auxiliary pistons. The intermediate position is adjustable, such as a 90° rotary angle actuator can set the intermediate position to be 20°, 30°, 50°, or 75°.
Quick Details
Product Name: 3 Position Pneumatic Actuator
Brand name: XM， and OEM is also accepted
Actuator size: 32mm-400mm
Rotary angle: 0°~180°(±5°)
Working Temperature Range: -20℃~ +80℃(standard)
-40℃~+80℃(low temperature)
-15℃~150℃(high temperature)
Air supply pressure: 0.2~0.8MPa, 10Mpa max
Top connection: VDI/VDE3845 NAMUR
Bottom connection: ISO 5211 and DIN3337
Material: Aluminum alloy
Structure: rack and pinion, dual rack pistons
Actuator body surface treatment: hard anodized, or dip oxidation
End Cap Color: black gray, black, dark blue, sky blue, red, orange, green, etc.
Certification: CE, ATEX, SIL3, ISO9001:2016
Advantages of Pneumatic Actuators
1. Accept continuous gas signal and output linear displacement (after adding electricity/gas conversion device, it can also accept continuous electrical signal), and some can output angular displacement when equipped with a rocker's arm.
2. It has positive and negative functions.
3. The moving speed is large, but the speed will become slower when the load increases.
4. The output force is related to the operating pressure.
5. High reliability, but the valve cannot be maintained after the gas source is interrupted (it can be maintained after adding a retaining valve).
6. It is inconvenient to realize segment control and program control.
7. Simple maintenance and good adaptability to the environment.
8. The output power is large.
9, with explosion-proof function.
Supply Ability
Supply Ability: 10000 units per month Pneumatic Rotary Actuator
Packing & Delivery
Packing detail: 1). separate carton with foam packing inside
2). plywood case for ocean shipment
3). Plywood pallet for air shipment
Advantage
1) All important spare parts would be treated with hard-anodization to enhance the strength to a great degree to ensure good performance and duty life.
2) All processes are one-time-forming by CNC to ensure the process accuracy and duty life.
Technical Parameter
XM 3 POSITION PNEUMATIC ACTUATOR OUTPUT TORQUE TABLE
Model | Input air pressure(unit:bar) | |||||
3 | 4 | 5 | 6 | 7 | 8 | |
Air pressure output torque(N.m) | ||||||
XM-DA32-3S | 4.6 | 6.1 | 7.6 | 9.2 | 10.7 | 12.2 |
XM-DA40-3S | 7.2 | 9.6 | 12.0 | 14.4 | 16.8 | 19.2 |
XM-DA52-3S | 12.0 | 16.0 | 20.0 | 24.0 | 28.0 | 32.0 |
XM-DA63-3S | 21.7 | 28.9 | 36.0 | 43.4 | 50.6 | 57.8 |
XM-DA75-3S | 30.0 | 40.0 | 50.0 | 60.0 | 70.0 | 80.0 |
XM-DA83-3S | 46.8 | 62.4 | 78.0 | 93.6 | 109.2 | 124.8 |
XM-DA92-3S | 67.6 | 90.1 | 112.6 | 135.2 | 157.7 | 180.2 |
XM-DA105-3S | 97.7 | 130.3 | 162.9 | 195.5 | 228.0 | 260.6 |
XM-DA125-3S | 150.5 | 200.6 | 250.8 | 301.0 | 351.1 | 401.3 |
XM-DA140-3S | 260.7 | 347.6 | 433.8 | 521.4 | 608.3 | 695.2 |
XM-DA160-3S | 397.2 | 529.6 | 662.0 | 794.4 | 926.8 | 1059.2 |
XM-DA190-3S | 640.2 | 853.6 | 1067.0 | 1280.4 | 1493.8 | 1707.2 |
XM-DA210-3S | 798.0 | 1064.0 | 1330.0 | 1596.0 | 1862.0 | 2128.0 |
XM-DA240-3S | 1154.3 | 1539.0 | 1923.8 | 2308.5 | 2693.3 | 3078.0 |
XM-DA270-3S | 1755.0 | 2340.0 | 2924.0 | 3510.0 | 4095.0 | 4680.0 |
XM-DA300-3S | 2291.4 | 3055.2 | 3819.0 | 4582.8 | 5346.6 | 6110.4 |
XM-DA350-3S | 3426.0 | 4568.0 | 5710.0 | 6852.0 | 7994.0 | 9136.0 |
XM-DA400-3S | 4872.0 | 6496.0 | 8120.0 | 9744.0 | 11368.0 | 12992.0 |
