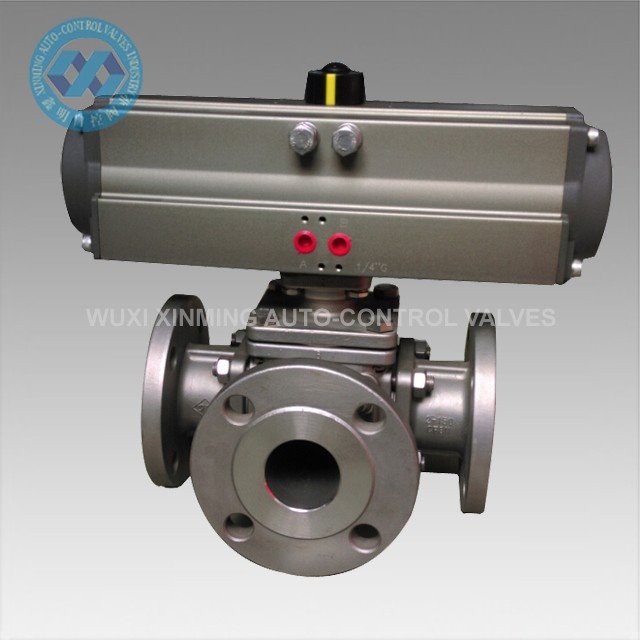

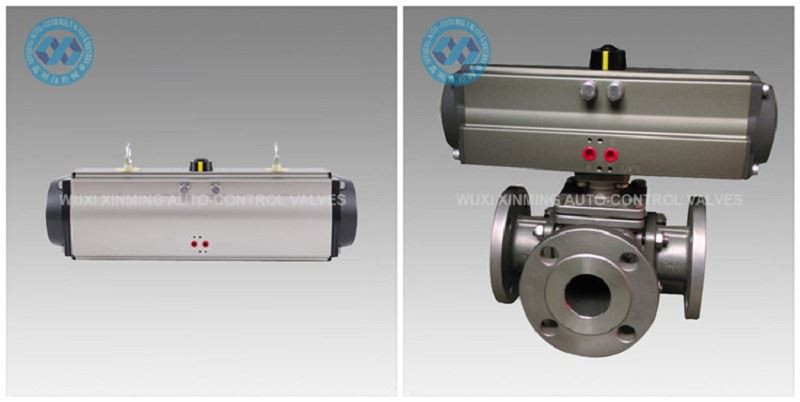

Product Introduction
The 180 degree Pneumatic Actuator is composed of double pistons driven by a rack and pinion. There are two models. One is a double-acting type, and the other is a spring-return type, which can adapt to various corrosive environments indoors or outdoors.
Quick Details
Product Name: 180 degree Pneumatic Actuator
Brand name: XM, and OEM is also accepted
Actuator size: 32mm-400mm
Rotary angle: 0°~180°(±5°)
Working Temperature Range: -20℃~ +80℃(standard)
-40℃~+80℃(low temperature)
-15℃~150℃(high temperature)
Air supply pressure: 0.2~0.8MPa, 10Mpa max
Top connection: VDI/VDE3845 NAMUR
Bottom connection: ISO 5211 and DIN3337
Material: Aluminum alloy
Structure: rack and pinion, dual rack pistons
Actuator body surface treatment: hard anodized, or dip oxidation
End Cap Color: black gray, black, dark blue, sky blue, red, orange, green,etc.
Certification: CE, ATEX, SIL3, ISO9001:2016

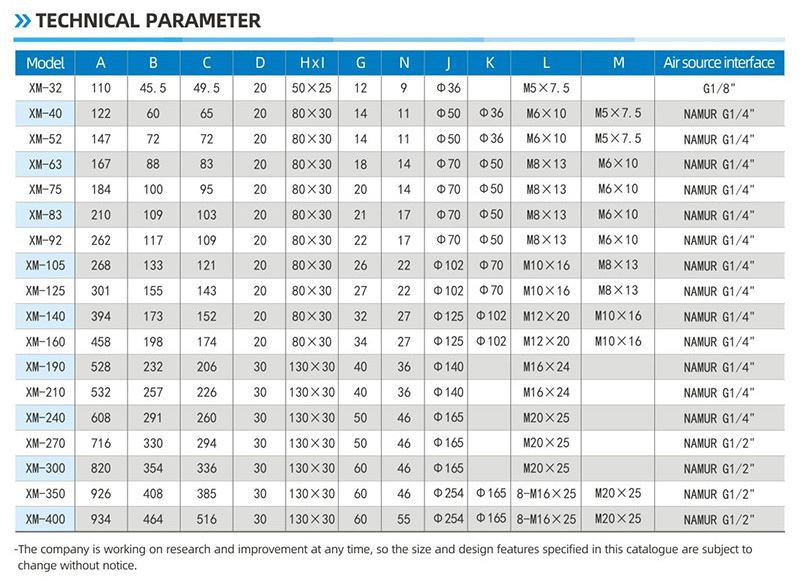

Technical Parameter
XM 180 DEGREE PNEUMATIC ACTUATOR OUTPUT TORQUE TABLE
Model | Input air pressure(unit:bar) | |||||
3 | 4 | 5 | 6 | 7 | 8 | |
Air pressure output torque(N.m) | ||||||
XM-DA32-180° | 4.6 | 6.1 | 7.6 | 9.2 | 10.7 | 12.2 |
XM-DA40-180° | 7.2 | 9.6 | 12.0 | 14.4 | 16.8 | 19.2 |
XM-DA52-180° | 12.0 | 16.0 | 20.0 | 24.0 | 28.0 | 32.0 |
XM-DA63-180° | 21.7 | 28.9 | 36.0 | 43.4 | 50.6 | 57.8 |
XM-DA75-180° | 30.0 | 40.0 | 50.0 | 60.0 | 70.0 | 80.0 |
XM-DA83-180° | 46.8 | 62.4 | 78.0 | 93.6 | 109.2 | 124.8 |
XM-DA92-180° | 67.6 | 90.1 | 112.6 | 135.2 | 157.7 | 180.2 |
XM-DA105-180° | 97.7 | 130.3 | 162.9 | 195.5 | 228.0 | 260.6 |
XM-DA125-180° | 150.5 | 200.6 | 250.8 | 301.0 | 351.1 | 401.3 |
XM-DA140-180° | 260.7 | 347.6 | 433.8 | 521.4 | 608.3 | 695.2 |
XM-DA160-180° | 397.2 | 529.6 | 662.0 | 794.4 | 926.8 | 1059.2 |
XM-DA190-180° | 640.2 | 853.6 | 1067.0 | 1280.4 | 1493.8 | 1707.2 |
XM-DA210-180° | 798.0 | 1064.0 | 1330.0 | 1596.0 | 1862.0 | 2128.0 |
XM-DA240-180° | 1154.3 | 1539.0 | 1923.8 | 2308.5 | 2693.3 | 3078.0 |
XM-DA270-180° | 1755.0 | 2340.0 | 2924.0 | 3510.0 | 4095.0 | 4680.0 |
XM-DA300-180° | 2291.4 | 3055.2 | 3819.0 | 4582.8 | 5346.6 | 6110.4 |
XM-DA350-180° | 3426.0 | 4568.0 | 5710.0 | 6852.0 | 7994.0 | 9136.0 |
XM-DA400-180° | 4872.0 | 6496.0 | 8120.0 | 9744.0 | 11368.0 | 12992.0 |

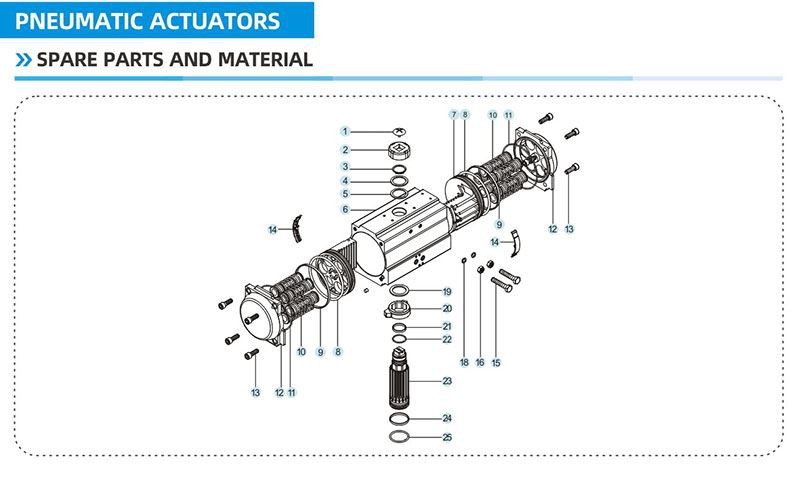

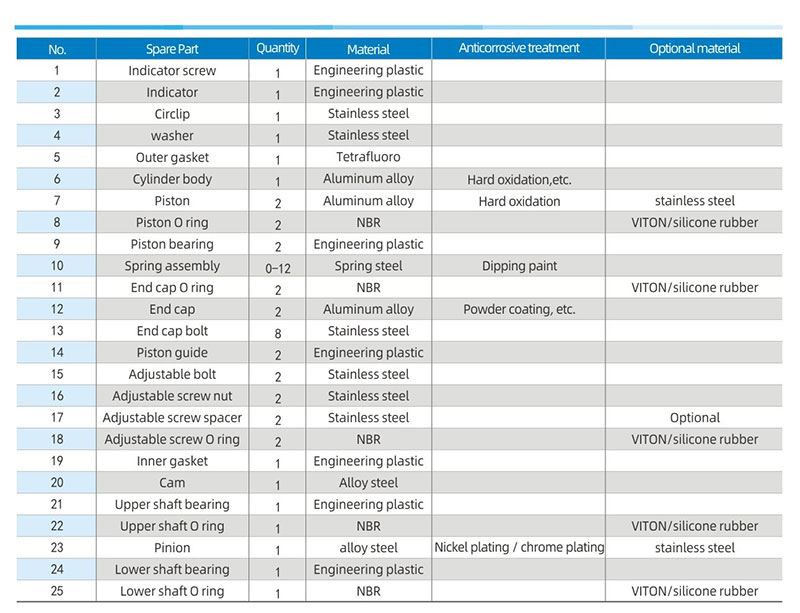

Spare Parts And Material

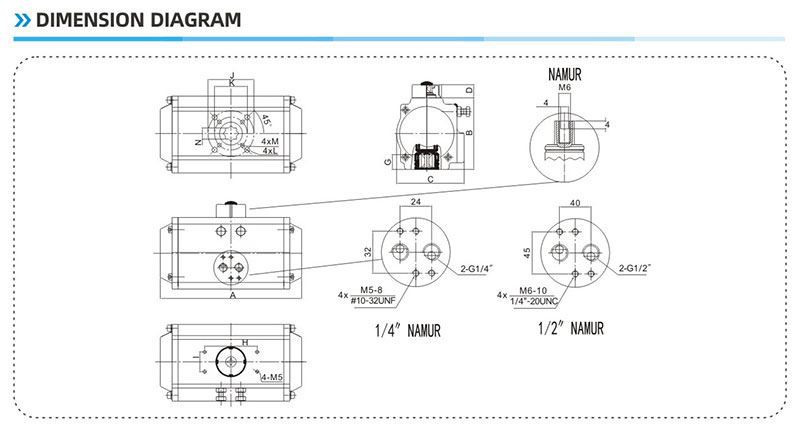

Dimension Diagram
FAQ
