Product Introduction
The XM series 0-90-180 Degree Pneumatic Actuator produced by our company is researched, developed, and designed on the basis of the comprehensive application of the introduction of new technologies, new materials, new processes, and innovative concepts at home and abroad, and fully conforms to the new international standards: ISO5211, DIN3337, and VDINDE-3845, NAMUR standards. The products have passed the inspection of the national technical supervision agency and passed the ISO9001:2000 international quality system demonstration. The products are widely used in automatic control of the chemical industry, oil refining, mining, power station, metallurgy, construction, medicine, food, gas, scientific research, etc.
Quick Details

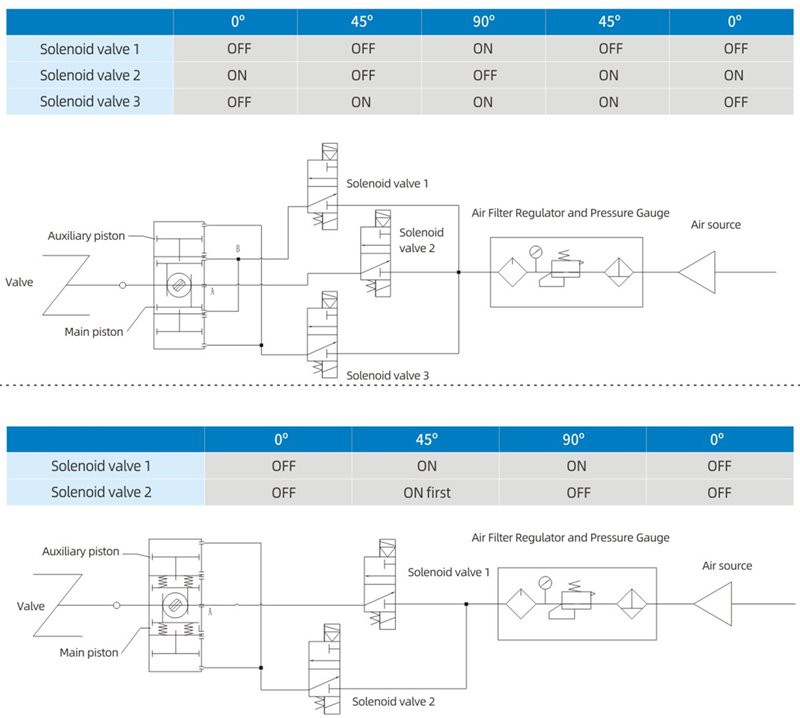

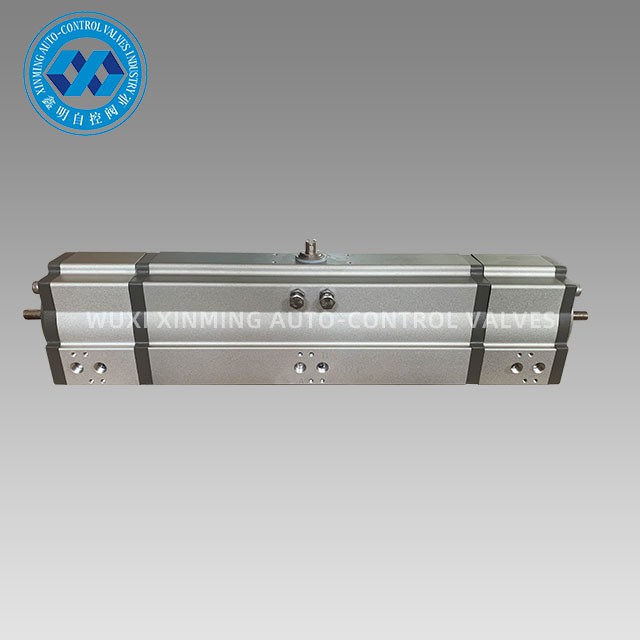

Product Name: 0-90-180 Degree Pneumatic Actuator
Brand name: XM, and OEM is also accepted
Actuator size: 32mm-400mm

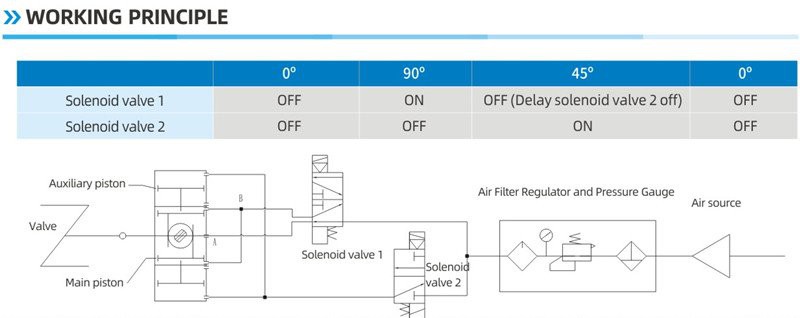

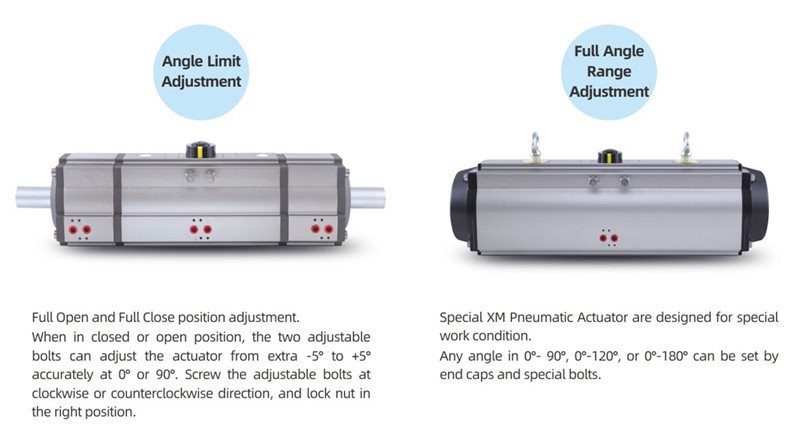

Rotary angle: 0°~180°(±5°)
Working Temperature Range: -20℃~ +80℃(standard)
-40℃~+80℃(low temperature)
-15℃~150℃(high temperature)
Air supply pressure: 0.2~0.8MPa, 10Mpa max
Top connection: VDI/VDE3845 NAMUR
Bottom connection: ISO 5211 and DIN3337
Material: Aluminum alloy
Structure: rack and pinion, dual rack pistons
Actuator body surface treatment: hard anodized, or dip oxidation
End Cap Color: black gray, black, dark blue, sky blue, red, orange, green,etc.
Certification: CE, ATEX, SIL3, ISO9001:2016
0-90-180 Degree Pneumatic Actuator Selection Steps
1. First determine whether you need a linear cylinder or a rotary cylinder.
2. Determine the number of cylinder strokes, single-stroke or multi-stroke.
3. Determine the mode of action of the cylinder, single-acting or double-acting.
4. Determine the thrust according to the working conditions. Look up the table and select the cylinder diameter.
5. The stroke size of the cylinder can be calculated by drawing. Values are usually 20, 25, 30, 40, 50, 75, 100, 125, etc.
6. Whether the cylinder needs additional parts, such as clamping jaws, guide rails, etc.
7. After determining the cylinder diameter, stroke, and cylinder model, the overall size can be determined. The size needs to meet the assembly requirements without interference. If not, you will need to reselect the model, such as a thin-walled cylinder.
8. In addition, there are other special pneumatic actuators. For example in cylinders, suction cups, etc.
0-90-180 Degree Pneumatic Actuator Product Advantages:
1. The inner surface of the cylinder is finely ground and finished, and advanced anti-corrosion technology is adopted inside and outside. The friction coefficient of the cylinder is small, the service life is long, and the corrosion resistance is strong.

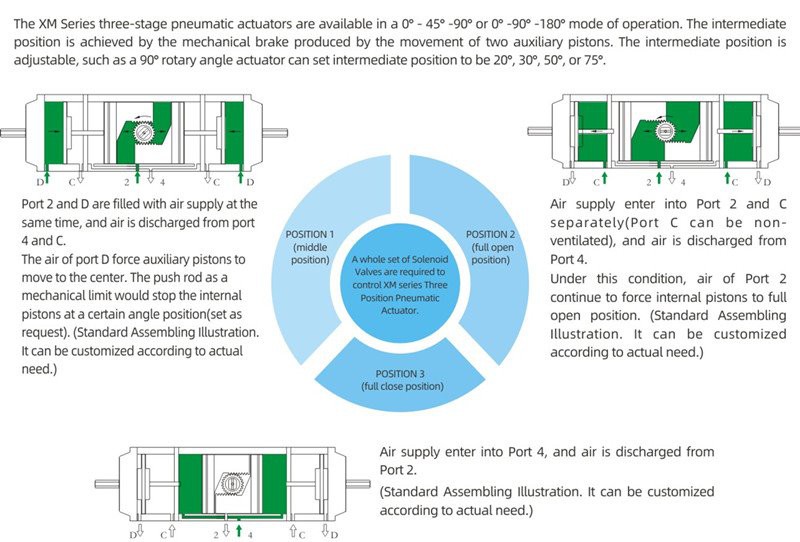

2. Double piston gear rod design, compact structure, symmetrical installation position, convenient output shaft steering, long service life, and fast action.
3. The back of the piston rack is equipped with a composite bearing and guide ring, which has accurate action, a small friction coefficient, and long service life.
4. The combined preloaded leaf spring has a long service life.
5. The rack and pinion have high precision, small meshing clearance, high precision, and large output power.
6. Stainless steel fasteners are safe and beautiful and have strong corrosion resistance.
7. The 0-90-180 Degree Pneumatic Actuator adopts standard dimensions: output shaft slot, screw hole; the size of the top mounting hole conforms to the NAMUR standard; the size of the air supply interface conforms to the Namur standard; the bottom mounting hole size conforms to the ISO5211 standard, which is convenient for installing the solenoid valve Limit switches and other accessories. Rack and pinion pneumatic actuator. Products are widely used in various fields. They are high-quality actuators such as ball and butterfly valves.
