Description
Product Introduction

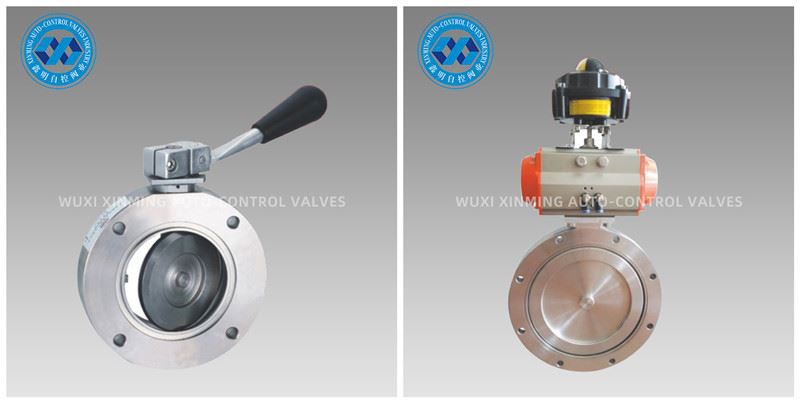

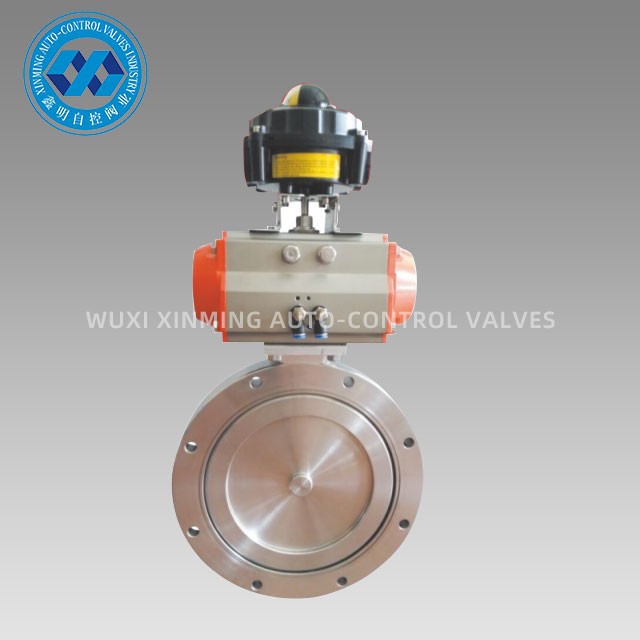

The Vacuum Butterfly Valve is used to open or cut off the vacuum air flow, with high flow conductivity.The applicable media is air and non-corrosive gas. In order to get the control automatically, solenoid valve and position indicator are optional device.
Quick Details
Product Name:Vacuum Butterfly Valve
Brand name: XM, and OEM is also accepted
Butterfly Valve size: 25mm-1000mm
Certification: CE, ATEX, SIL3, ISO9001:2016
Features:
1. Valve Sizes from 1/2" to 6"
2. Forged body and disc for better quality.
3. Standard Materials are 304 and 316L stainless steel.
4. Vacuum Range: ≥10-8 Torr

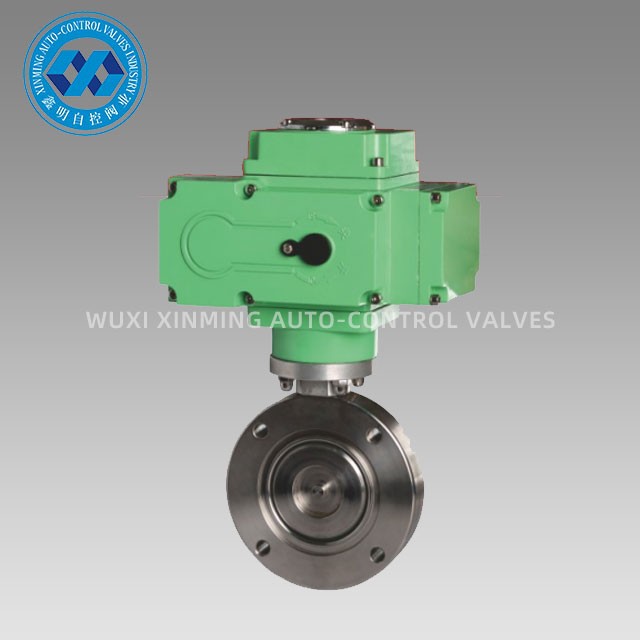

5. Various manual or automatic operators available.
6. Polyacetal bushings for the valve disc reduce friction and increase cycle life.
7. Optional wing nut kit is available for effortless valve assembly and disassembly.
8. Butterfly valves are supplied with a machining finish. Other finishes are also available.
9. The system can afford up to 400℉ (200℃). However, sustained heating above 302℉ (150℃) may result in deterioration of the gasket.
10. Valve sets are 100% tested before shipping.
11. Seat materials in Viton, Silicon, and EPDM.
12. Seat Temperature Range:
Fluorocarbon FKM (Viton): -5℃～204℃ (23℉～399℉)
Silicon: -50℃～180℃ (-58℉～356℉)
Ethylene Propylene Diene Monomer (EPDM): -50℃～135℃ (-58℉～275℉)

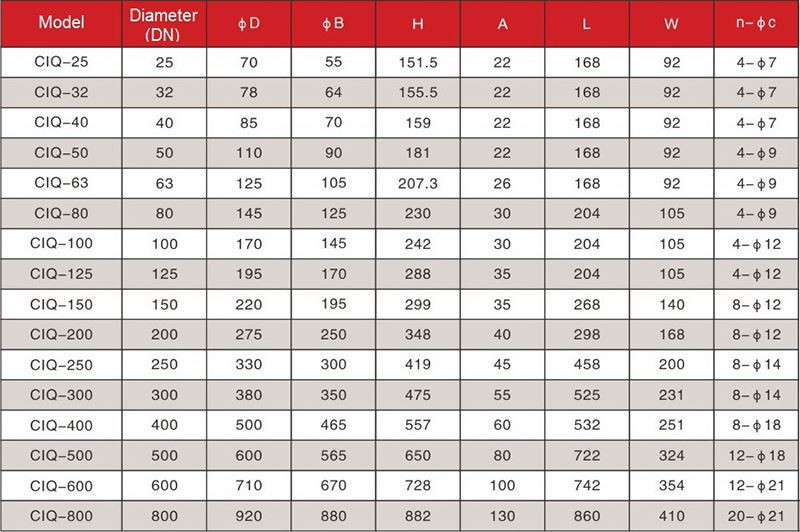

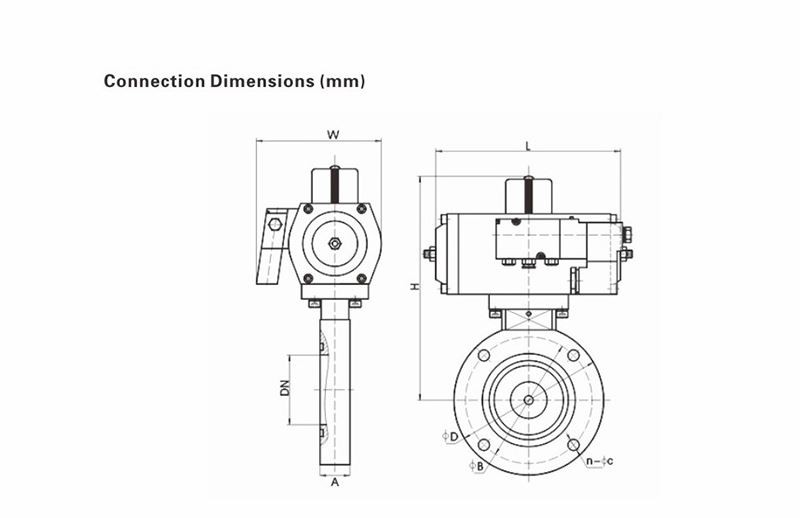

Technical Parameter
Supply Ability
Supply Ability: 1000 units per month Pneumatic Butterfly Valve
Packing & Delivery
Packing detail: 1). If big quantity, plywood case
2). If small quantity, Carton or Plywood pallet
Port of departure: Shanghai, China
Lead Time:
Quantity(Units) | 1-50 | 51-1000 | ＞1001 |
Est. Time(days) | Goods in stock | 30 | To be negotiated |
Application
Vacuum Butterfly Valve is widely used in the production process of building materials, metallurgy, mining, electric power and so on. The medium temperature is ≤ 300 ℃ and the nominal pressure is 0.1MPa, which is used to connect, open, close or adjust the medium quality.
Company Introduction
Since 2007,WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD has established.
We mainly manufacture Pneumatic Actuator, Pneumatic Ball Valve, Pneumatic Butterfly Valve, Pneumatic/Electrical Control Valve, etc.
Our company has advanced processing equipment and sophisticated testing equipment. Our processing equipment include lathes, milling machine, boring machine, planer, drilling machine, CNC lathes, CNC machining centers and other equipment. There are totally 30 sets, of which there are 5 sets imported vertical machine center and several sets advanced CNC lathes.
Our Service
1)7x24 hours hotline
2)Strict quality control
3)Good quality at a favorable price
4)Excellent After-service
5)On-line technical support
6)Fast delivery time
FAQ
Q 1: Payment terms capacity?
A 1: T/T, L/C, Western Union.
Q 2: Trade terms?
A 2: In according with Incoterms 2010, normally with EXW, FOB shanghai, CFR, CIF and DDU.
Q 3: Validity of quotation?
A 3: Within 30 days.
Q 4: Modes of shipment?
A 4: By sea, by air, by express, or by railway.
Q 5: Warranty?
A 5: One year quality warranty for free, and lifelong paid service.
Q 6: Installation and training?
A 6: normal video guidance for installation. If necessary, paid overseas engineering service provided.
