Description
Product Introduction
The triple eccentric Butterfly Valve has a three-dimensional cored structure, which makes the butterfly plate tighter and tighter, and its sealing performance is reliable, achieving no leakage, high pressure resistance, corrosion resistance, abrasion resistance, and long service life.
Quick Details
Product Name: triple eccentric Butterfly Valve
Brand name: XM, and OEM is also accepted
Butterfly Valve size: 25mm-1000mm
Certification: CE, ATEX, SIL3, ISO9001:2016
Valve Type: Butterfly
For Use With: Water, Oil, Air, Natural Gas, Steam, Drinking Water
Seal Material : metal-to-metal
Specifications Met: API 609
Features
A. Short start-up time, flexible and convenient, and labor-saving
B. The three-dimensional eccentric configuration forces the valve disc to become tighter and tighter to achieve reliable sealing ability without leakage.
C. It has the characteristics of high temperature resistance, high pressure resistance maintenance, wear resistance, and long service life.

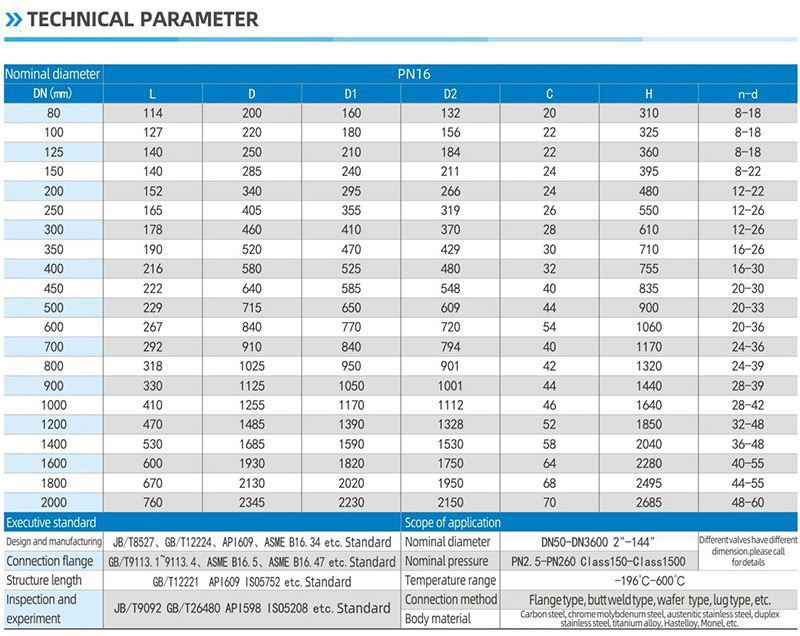

Technical Parameter
Supply Ability
Supply Ability: 1000 units per month Pneumatic Butterfly Valve
Packing & Delivery
Packing detail: 1). If big quantity, plywood case
2). If small quantity, Carton or Plywood pallet
Port of departure: Shanghai, China
Lead Time:
Quantity(Units) | 1-50 | 51-1000 | ＞1001 |
Est. Time(days) | Goods in stock | 30 | To be negotiated |
