Product Introduction
Soft-seal Butterfly Valve is a component used to cut off the pipeline system and control the flow rate. It has been widely used in many fields such as petroleum, chemical industry, metallurgy, and hydropower.To automatically start and stop flow faster than motor-driven valves, these operate on compressed air. You must control the air to the actuator using either the included electric pilot valve or a manual on/off valve Valves don’t require a minimum pressure drop between the inlet and outlet for operation.
Quick Details

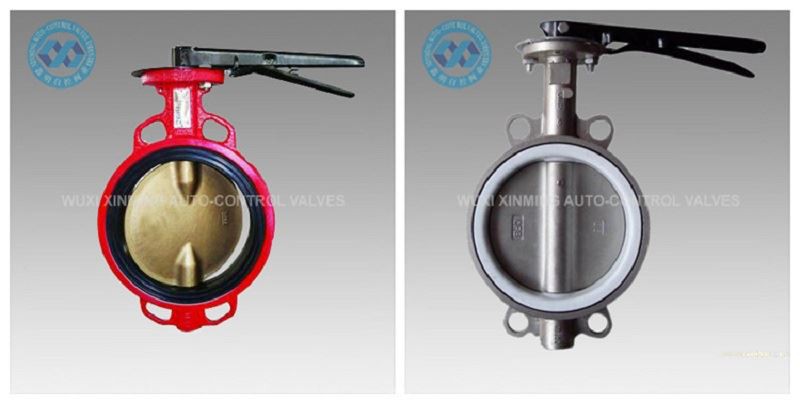

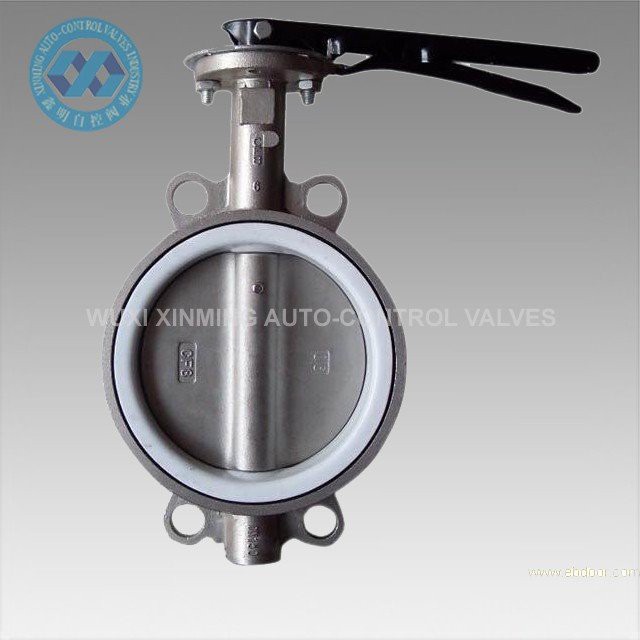

Product Name: Soft-seal Butterfly Valve
Brand name: XM, and OEM is also accepted
Butterfly Valve size: 25mm-1000mm
Certification: CE, ATEX, SIL3, ISO9001:2016
Valve Type: Butterfly
For Use With: Water, Oil, Air, Natural Gas, Steam, Drinking Water
Seal Material : EPDM Rubber, NBR, PTFE, metal-to-metal
Specifications Met: API 609

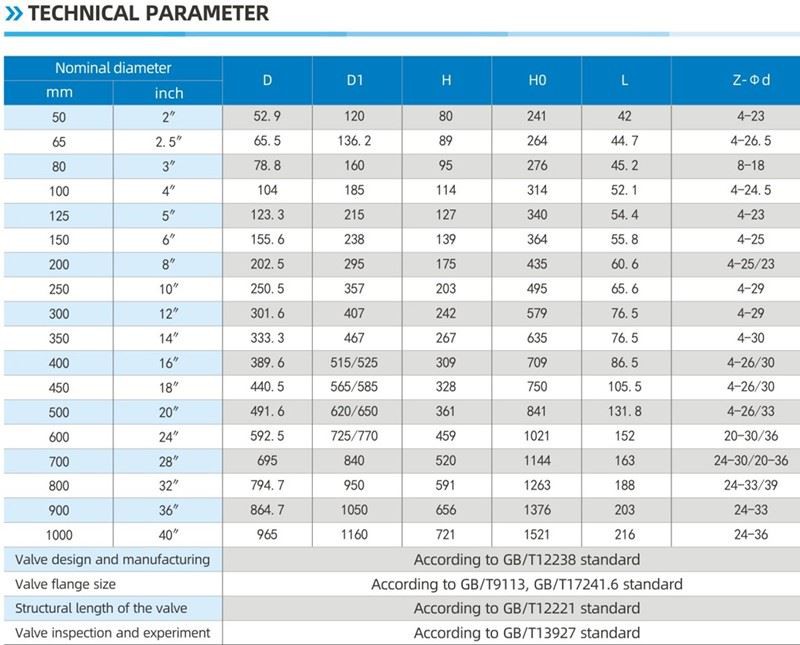

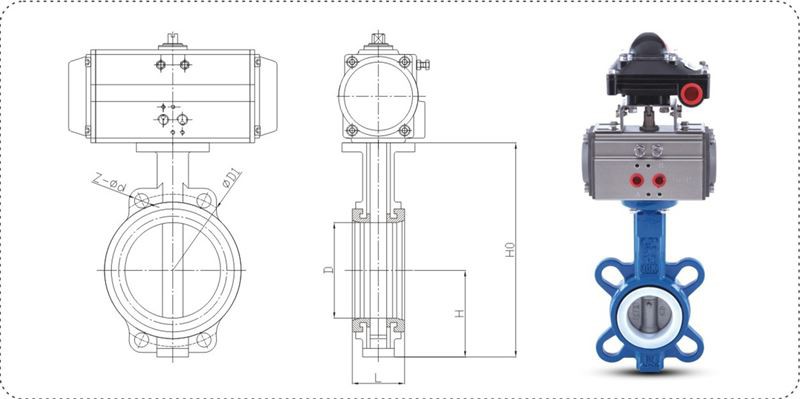

Technical Parameter
Application
Pneumatic butterfly valves can be applied to various flammable, corrosive, dusty, strong magnetic field, radiation, vibration and corrosion indoor or outdoor environments, and are widely used in electric power, petrochemical, metallurgy, petroleum, natural gas, towns, construction, drainage, chemical, Oil refining, mining, power plants, metallurgy, construction, medicine, food, natural gas, scientific research, etc.
Supply Ability
Supply Ability: 1000 units per month Pneumatic Butterfly Valve
Packing & Delivery
Packing detail: 1). If big quantity, plywood case
2). If small quantity, Carton or Plywood pallet
Port of departure: Shanghai, China
Lead Time:
Quantity(Units) | 1-50 | 51-1000 | ＞1001 |
Est. Time(days) | Goods in stock | 30 | To be negotiated |

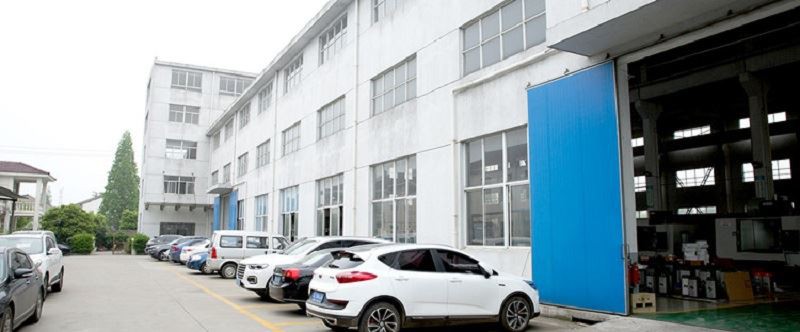

Company Introduction
Since 2007,WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD has established.
We mainly manufacture Pneumatic Actuator, Pneumatic Ball Valve, Pneumatic Butterfly Valve, Pneumatic/Electrical Control Valve, etc.
Our company has advanced processing equipment and sophisticated testing equipment. Our processing equipment include lathes, milling machine, boring machine, planer, drilling machine, CNC lathes, CNC machining centers and other equipment. There are totally 30 sets, of which there are 5 sets imported vertical machine center and several sets advanced CNC lathes.
FAQ
Q 1: Payment terms capacity?
A 1: T/T, L/C, Western Union.
Q 2: Trade terms?
A 2: In according with Incoterms 2010, normally with EXW, FOB shanghai, CFR, CIF and DDU.
Q 3: Validity of quotation?
A 3: Within 30 days.
Q 4: Modes of shipment?
A 4: By sea, by air, by express, or by railway.
Q 5: Warranty?
A 5: One year quality warranty for free, and lifelong paid service.
Q 6: Installation and training?
A 6: normal video guidance for installation. If necessary, paid overseas engineering service provided.
