Sanitary Butterfly Valve

Quick Details
Brand name: XM, and OEM is also accepted
Butterfly Valve size: 25mm-1000mm
Certification: CE, ATEX, SIL3, ISO9001:2016
Valve Type: Butterfly
For Use With: Food, Beverage

Send Inquiry

Chat Now

Description

Product Introduction

These Sanitary Butterfly Valve have internal surfaces that prevent product buildup and inhibit bacteria growth in order to maintain sanitary standards in food and beverage applications, All have sanitary quick-clamp fittings for easy disassembly in systems that require frequent cleaning. They gradually open and close to adjust and regulate flow.

Quick Details

Product Name:Sanitary Butterfly Valve

Brand name: XM, and OEM is also accepted

Butterfly Valve size: 25mm-1000mm

Certification: CE, ATEX, SIL3, ISO9001:2016

Valve Type: Butterfly

For Use With: Food, Beverage

Technical Parameter

Technical Specifications – Stainless Steel Sanitary Butterfly Valve for Food, Dairy, Brewery and Biopharm etc.

General Features of Sanitary Butterfly Valve
Working Pressure	DN20 ~ DN100 / ½” ~ 4″		0~10 bar
	DN125 ~ DN150 / 5″ ~ 6″		0~8 bar
	DN200 ~ DN300 / 8″ ~ 12″		0~5 bar
Working Temperature	Continuous Working Temperature		-10°C ~ +121°C(EPDM)
	Sterilization Temperature		150°C (Max. 20min)

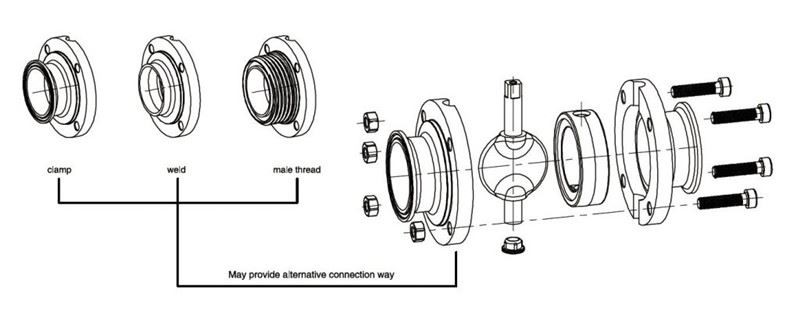

Connections	Connection Standards		DIN, SMS, 3A, ISO, RJT, IDF etc
	Connection Methods		Welded, Threaded, Clamped, Flanged
Material
Metal Material	Wetted Parts		304 (1.4301) or 316L (1.4404) forged
	Other Steel Parts		304 (1.4301)
	EN 10204 3.1B certificate is available on request.
Seal Material	Standard		EPDM
	Options		FPM, Silicone, NBR
	All seal materials comply with FDA 177.2600.
Manual Handles & Pneumatic Actuator

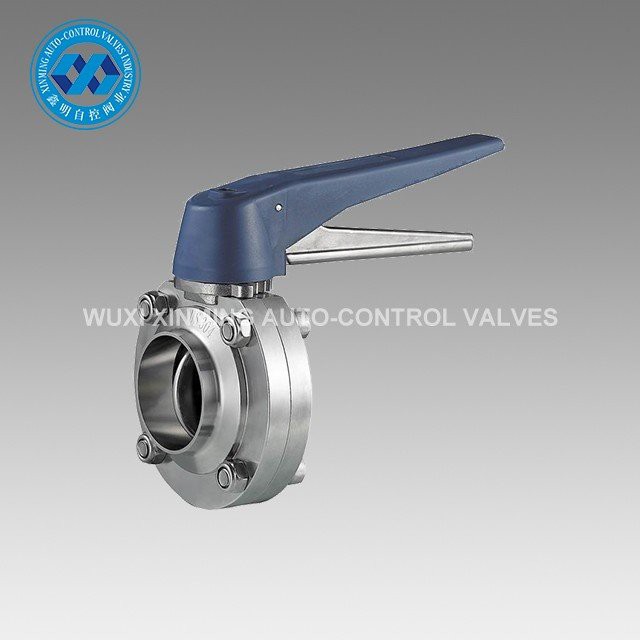

Manual Handle	Standard	4-position pull handle
	Options	Plastic multi-position handle(12 position)
		Stainless steel multi-position handle(12 position)

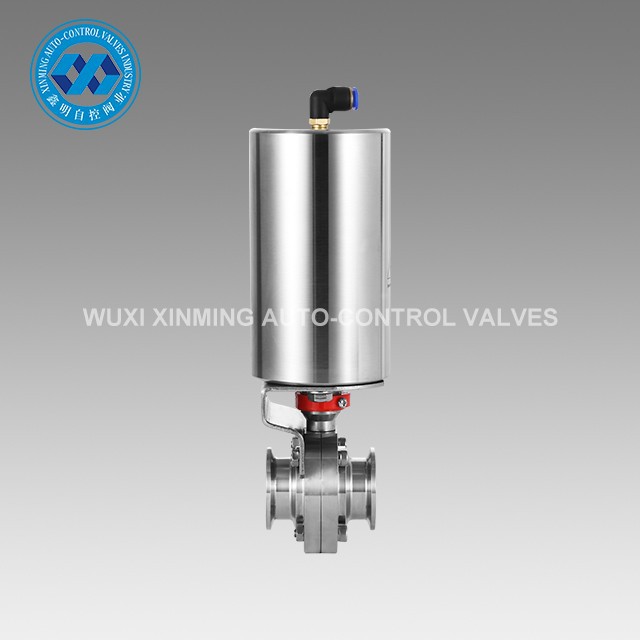

Pneumatic Actuator	Standard	Stainless Steel Pneumatic Actuator (Vertical)	Standard	Air/Air (A/A)
			Options	Normally Closed (NC)/ Normally Open (NO)

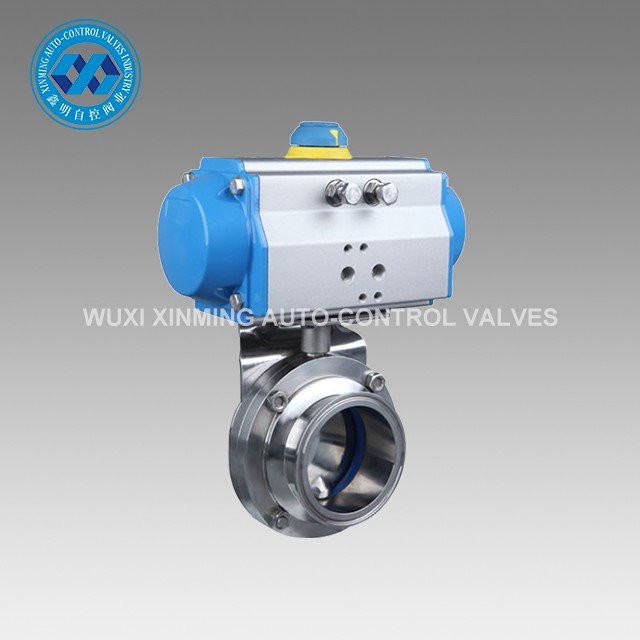

	Options	Aluminum Alloy Pneumatic Actuator (Horizontal)	Standard	Air/Air (A/A)
			Options	Normally Closed (NC)/ Normally Open (NO)
	Air Supply	Dry & Filtered Compressed Air

Supply Ability

Supply Ability: 1000 units per month Pneumatic Butterfly Valve

Packing & Delivery

Packing detail: 1). If big quantity, plywood case

2). If small quantity, Carton or Plywood pallet

Port of departure: Shanghai, China

Lead Time:

Quantity(Units)	1-50	51-1000	＞1001
Est. Time(days)	Goods in stock	30	To be negotiated

Application

Sanitary butterfly valve is a stainless steel butterfly valve with high precision and purity requirements for the industries of food and beverage, beer brewing, biopharmaceutical and fine chemicals. Stainless steel sanitary butterfly valve has a simple structure, it is mainly composed of a split body, a valve disc, a valve stem and a driving. Compared with sanitary ball valve, sanitary butterfly valve not only have the adavantages of simple structure, small size, light weight, small material consumption, small installation size etc., but also have small driving torque, simple and rapid operation, and good flow regulation, sealing characteristics etc. When the butterfly valve is in the fully open position, the thickness of the disc is the only resistance when the medium flows through the valve body. So the pressure drop generated by butterfly valve is small, the valve has better flow control characteristics. In the food grade industry, sanitary butterfly valve is one of the largest and most common hygienic valve.

Our Service

1)7x24 hours hotline

2)Strict quality control

3)Good quality at a favorable price

4)Excellent After-service

5)On-line technical support

6)Fast delivery time
