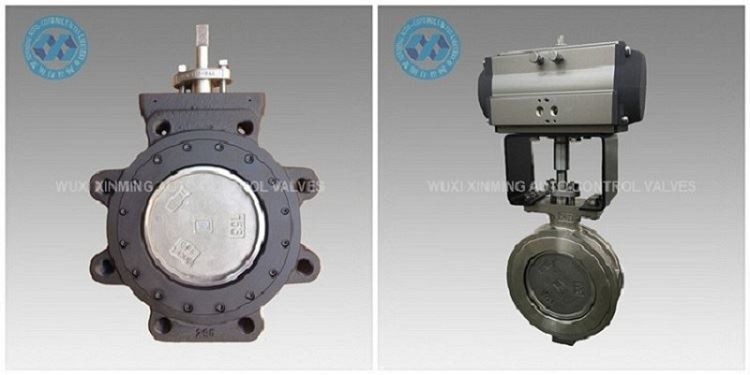

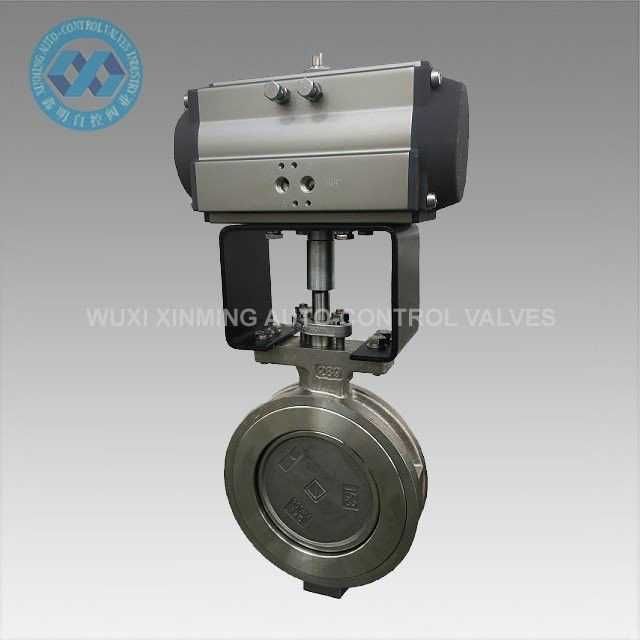

High-performance Butterfly Valve

Product Introduction

The high-performance Butterfly Valve adopts a double eccentric butterfly plate with a spherical sealing surface and a single piece of flexible lip seal seat, which is suitable for occasions that require reliable sealing and good adjustment characteristics. Due to the design of the double eccentric butterfly plate, the valve has tight sealing performance and long service life. It can be used to quickly cut off or adjust the flow. The product is suitable for the transportation of liquid and gas (including steam) in various industrial pipelines. Specially selected, it can also be used in special media, such as chlorine, oxygen, high vacuum, sulfur-resistant or corrosive media. The product can also have a fireproof structure for selection. The connection mode can be a wafer type or a lug type single flange design for large pipe diameters and end of pipelines.

Quick Details

Product Name: high-performance Butterfly Valve

Brand name: XM, and OEM is also accepted

Butterfly Valve size: 25mm-1000mm

Certification: CE, ATEX, SIL3, ISO9001:2016

Valve Type: Butterfly

For Use With: Water, Oil, Air, Natural Gas, Steam, Drinking Water

Seal Material : PTFE

Specifications Met: API 609

Main Feature

1. The opening torque is small, flexible and convenient, labor saving and energy saving.

2. The three-dimensional core structure makes the butterfly plate tighter and tighter. Its sealing performance is reliable and leak-free.

3. High pressure resistance, corrosion resistance, abrasion resistance, long service life, etc.

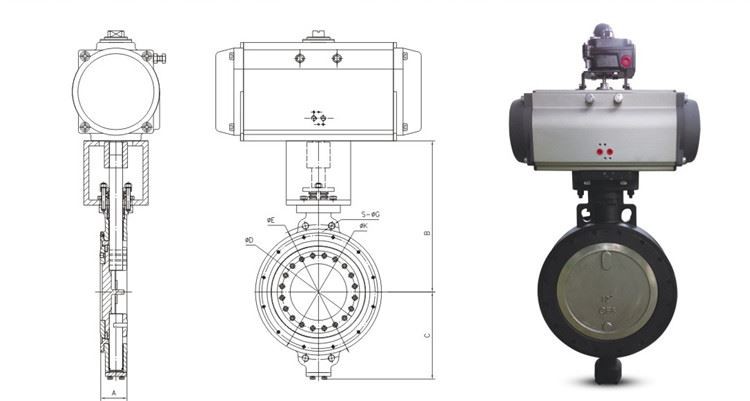

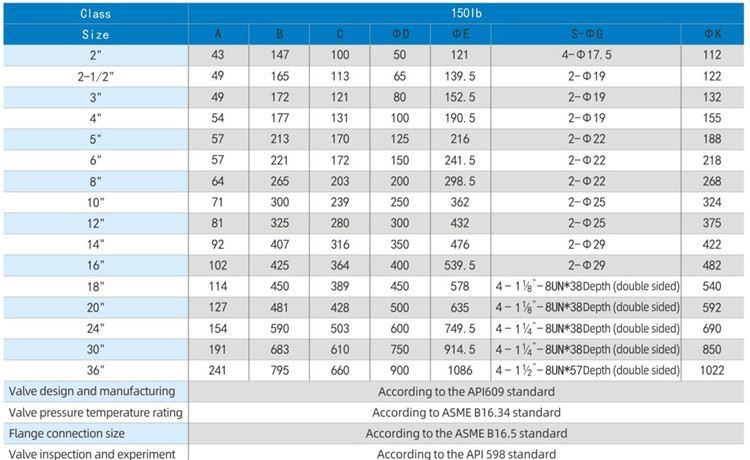

Technical Parameter

Our Service

1)7x24 hours hotline

2)Strict quality control

3)Good quality at a favorable price

4)Excellent After-service

5)On-line technical support

6)Fast delivery time

FAQ

Q 1: Payment terms capacity?

A 1: T/T, L/C, Western Union.

Q 2: Trade terms?

A 2: In according with Incoterms 2010, normally with EXW, FOB shanghai, CFR, CIF and DDU.

Q 3: Validity of quotation?

A 3: Within 30 days.

Q 4: Modes of shipment?

A 4: By sea, by air, by express, or by railway.

Q 5: Warranty?

A 5: One year quality warranty for free, and lifelong paid service.

Q 6: Installation and training?

A 6: normal video guidance for installation. If necessary, paid overseas engineering service provided.

Hot Tags: high-performance butterfly valve, China, suppliers, manufacturers, factory, customized, buy, price, for sale, in stock, free sample,
