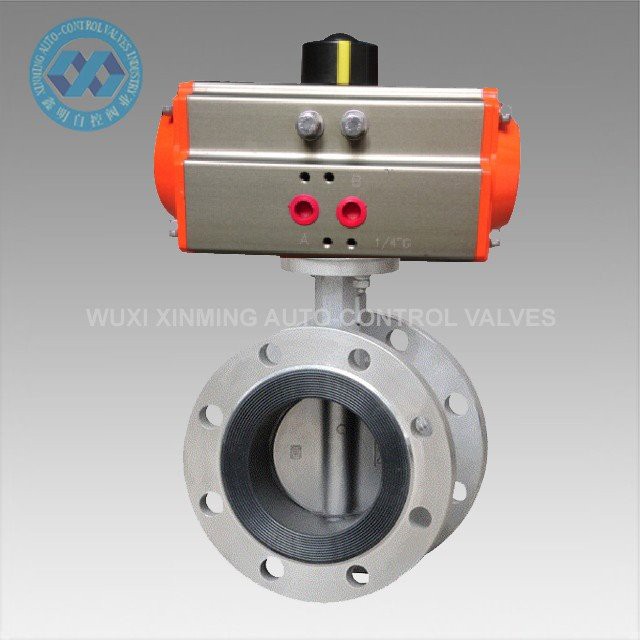

Flange Butterfly Valve

Product Introduction

Pneumatic flange butterfly valve has simple structure, small size, light weight and low cost. The feature of pneumatic butterfly valve is particularly remarkable. It is installed in a dark tunnel at high altitude and is controlled by a two-position five-way solenoid valve. It is easy to operate and can also adjust the flow medium.

Quick Details

Product Name: Flange Butterfly Valve

Brand name: XM, and OEM is also accepted

Butterfly Valve size: 25mm-1000mm

Certification: CE, ATEX, SIL3, ISO9001:2016

Valve Type: Butterfly

For Use With: Water, Oil, Air, Natural Gas, Steam, Drinking Water

Seal Material : EPDM Rubber, NBR, PTFE, metal-to-metal

Specifications Met: API 609

Technical Parameter

Product Description

The actuator is directly mounted to the valve body to minimize movement and reduce wear. A visual flow indicator on the top of the actuator shows whether the valve is open or closed. The manual override allows you to operate the valve during power outages.

Butterfly valves can wafer style, lug style, flange style. Their hole pattern matches ANSI flanges of the same pipe size. They can be sandwiched between two flanges, or bolt them directly to a single flange for servicing one end of the pipeline without depressurizing the other side
