Description
Product Introduction

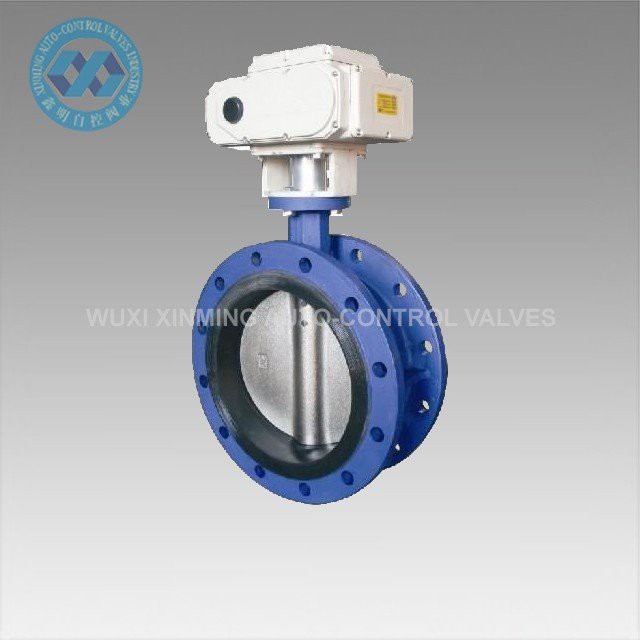

Automatically start and stop flow in flanged pipelines with Electrical Butterfly Valve that operate on electricity. All are normally open unless actuated.Valves with a manual override can be operated during power outages.
Quick Details
Product Name: Electrical Butterfly Valve
Brand name: XM, and OEM is also accepted
Butterfly Valve size: 25mm-1000mm
Certification: CE, ATEX, SIL3, ISO9001:2016
Valve Type: Butterfly
For Use With: Water, Oil, Air, Natural Gas, Steam
Seal Material: EPDM Rubber
Specifications Met: API 609
The actuator is directly mounted to the valve body to minimize movement and reduce wear. A visual flow indicator on the top of the actuator shows whether the valve is open or closed. Two single pole, double throw (SPDT) auxiliary switches allow you to connect these valves to temperature-monitoring equipment, programmable logic controllers, or conveyor sirens. The internal heater automatically turns on when the valve is actuated to prevent motor damage caused by condensation buildup. All valves are lug style; their hole pattern matches ANSI flanges of the same pipe size. They can be sandwiched between two flanges, or bolt them directly to a single flange for servicing one end of the pipeline without depressurizing the other side.

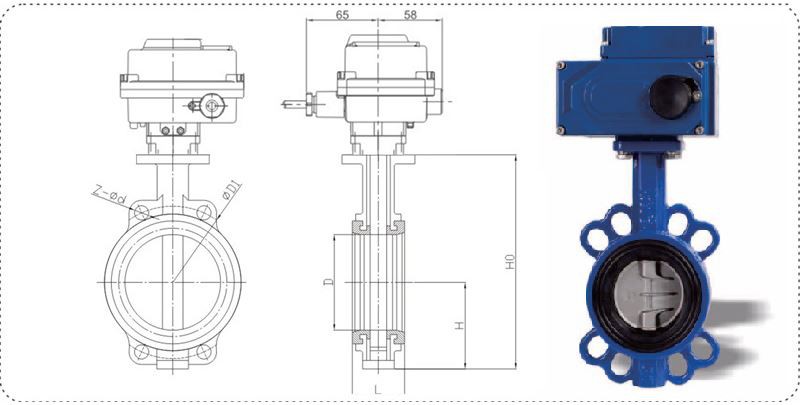

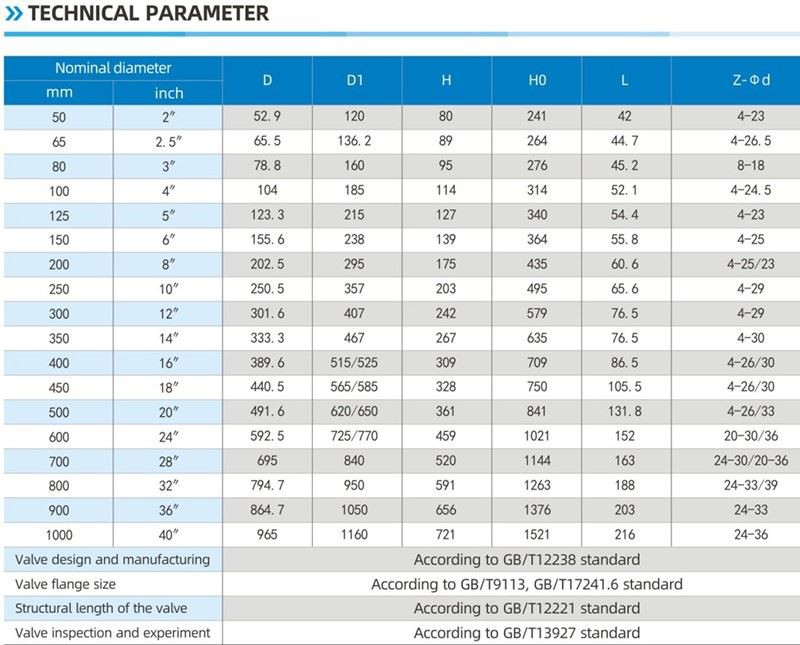

Technical Parameter
Supply Ability
Supply Ability: 1000 units per month Electrical Butterfly Valve
Packing & Delivery
Packing detail: 1). If big quantity, plywood case
2). If small quantity, Carton or Plywood pallet
Port of departure: Shanghai, China
Lead Time:
Quantity(Units) | 1-50 | 51-1000 | ＞1001 |
Est. Time(days) | Goods in stock | 30 | To be negotiated |
Our Service
1)7x24 hours hotline
2)Strict quality control
3)Good quality at a favorable price
4)Excellent After-service
5)On-line technical support
6)Fast delivery time
FAQ
Q 1: Payment terms capacity?
A 1: T/T, L/C, Western Union.
Q 2: Trade terms?
A 2: In according with Incoterms 2010, normally with EXW, FOB shanghai, CFR, CIF and DDU.
Q 3: Validity of quotation?
A 3: Within 30 days.
Q 4: Modes of shipment?
A 4: By sea, by air, by express, or by railway.
Q 5: Warranty?
A 5: One year quality warranty for free, and lifelong paid service.
Q 6: Installation and training?
A 6: normal video guidance for installation. If necessary, paid overseas engineering service provided.
