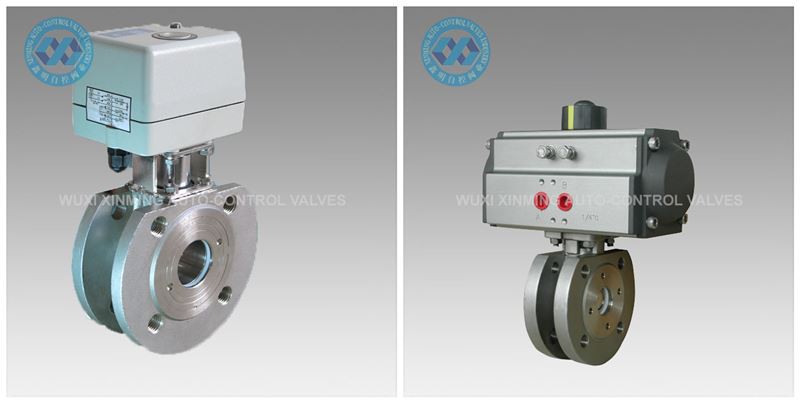

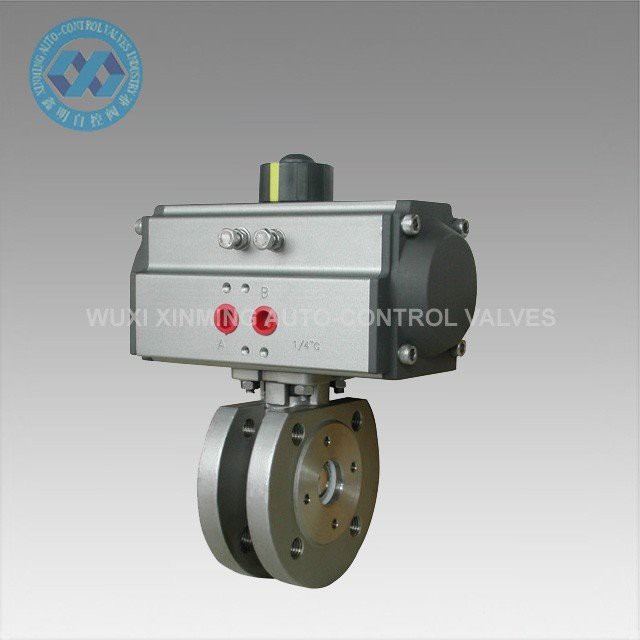

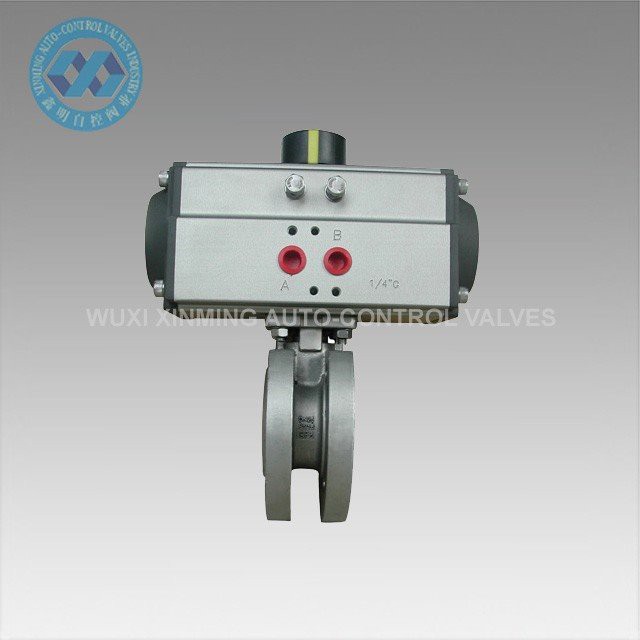

Thin Ball Valve

Product Introduction

Thin ball valve has significant advantages such as short structure length, light weight, convenient installation, and material saving.

Features

1. The fluid resistance is small, and its resistance coefficient is equal to that of a pipe section of the same length.

2. The valve design has a compact and reasonable structure, short length and small volume, which is especially suitable for installation in short pipelines and specific spaces.

3. The sealing is reliable, and the sealing parts are all made of new high-quality PTFE or high-temperature flexible graphite and other materials, without a trace of inferior plastics.

4. Convenient operation, rapid opening and closing, and a limit device to prevent wrong operation, safe and reliable.

5. The maintenance is convenient, and the valve design is easy to disassemble. There is a screw bonnet at one end of the valve, this bonnet controls the tightness of the valve seat and the ball core and the switch.

Our Service

1)7x24 hours hotline

2)Strict quality control

3)Good quality at a favorable price

4)Excellent After-service

5)On-line technical support

6)Fast delivery time

FAQ

Q 1: Payment terms capacity?

A 1: T/T, L/C, Western Union.

Q 2: Trade terms?

A 2: In according with Incoterms 2010, normally with EXW, FOB shanghai, CFR, CIF and DDU.

Q 3: Validity of quotation?

A 3: Within 30 days.

Q 4: Modes of shipment?

A 4: By sea, by air, by express, or by railway.

Q 5: Warranty?

A 5: One year quality warranty for free, and lifelong paid service.
