Introduction

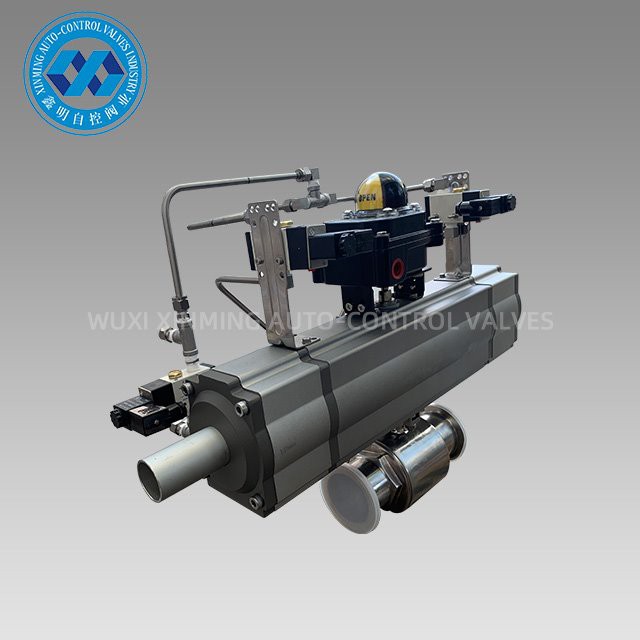

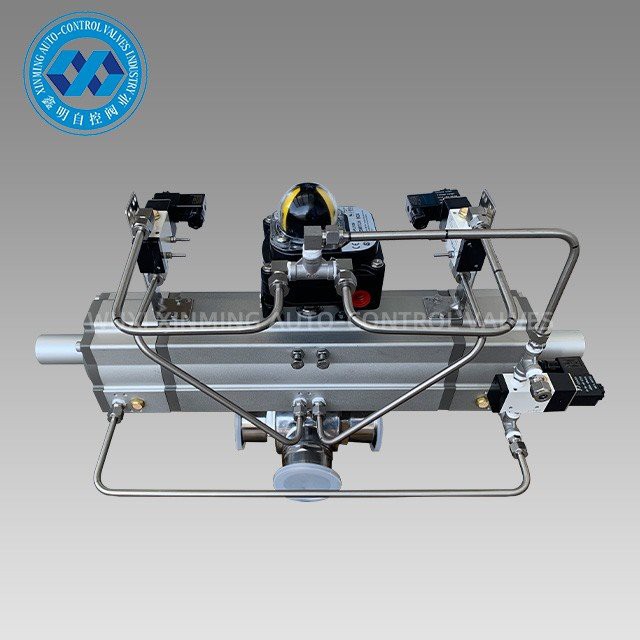

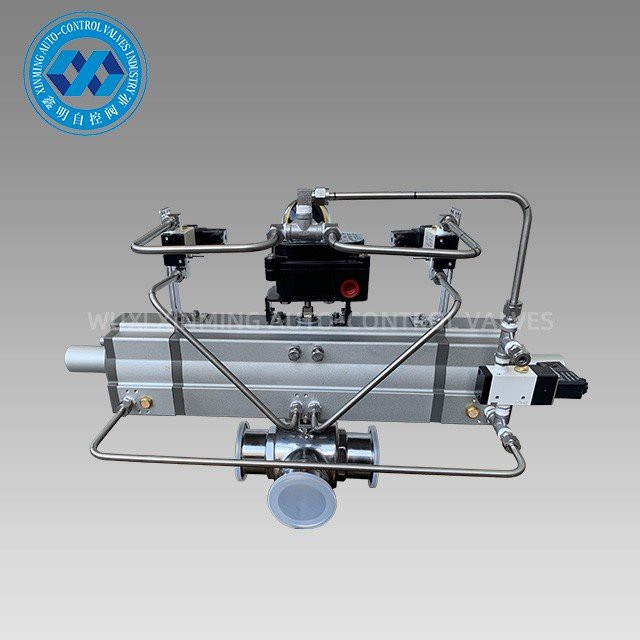

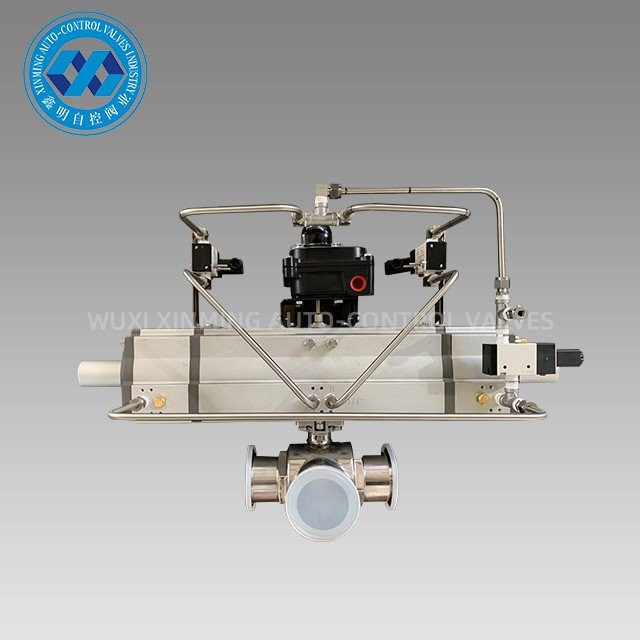

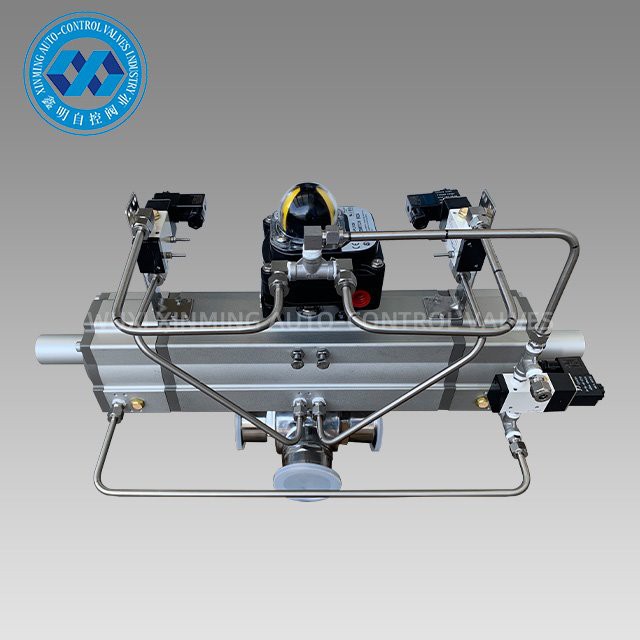

Pneumatic Actuator 3-way sanitary ball valves for use in food, beverage, personal care, pet care and other applications requiring 3A levels of sanitation. Three-way sanitary ball valves are available in L- or T-port configurations. Applying an air pressure signal to the pneumatic actuator will rotate the output, changing the position of the valve. Tri-clamp end fittings. Bolt-on design for easy cleaning and maintenance. Fully encapsulated ball seats for all ports and highly polished internals. Seal kits are available for all 3-way sanitary ball valves. Valve sizes from 1/2" to 4". Spring return or double acting air actuators in Rack & Pinion design. Direct mount solenoid valves for pilot air control are sold as an accessory.
Technical Parameter
|
Material: |
SS304 or SS316 |
|
Size: |
3/4"-4"(Φ19-Φ102) |
|
Standard: |
ISO, DIN, 3A, SMS, etc |
|
Connection: |
Welded, Clamped, Threaded |
|
Seat material: |
PTFE |
|
Body construction: |
3 way body(T port, L port) |
|
Max Pressure: |
145PSI/10 bar |
|
Temperature: |
-20°C-130°C |
Company Introduction
Since 2007,WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD has established.
We mainly manufacture Pneumatic Actuator, Pneumatic Ball Valve, Pneumatic Butterfly Valve, Pneumatic/Electrical Control Valve, etc.
Our company has advanced processing equipment and sophisticated testing equipment. Our processing equipment include lathes, milling machine, boring machine, planer, drilling machine, CNC lathes, CNC machining centers and other equipment. There are totally 30 sets, of which there are 5 sets imported vertical machine center and several sets advanced CNC lathes.
