Description
Product Introduction

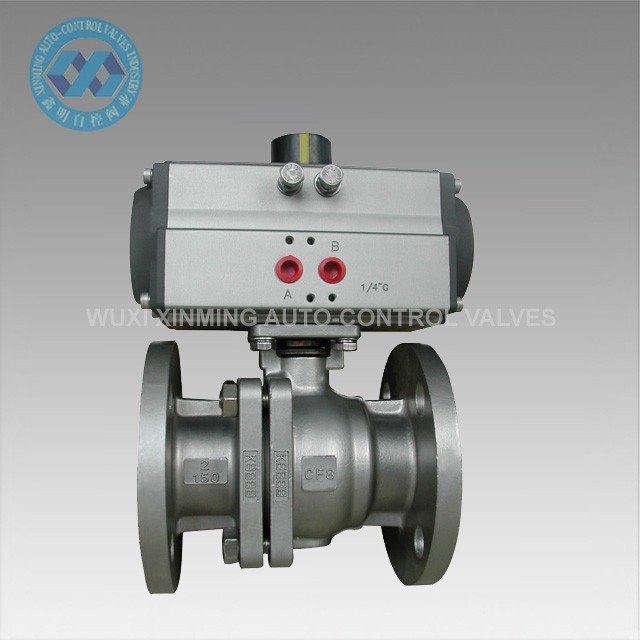

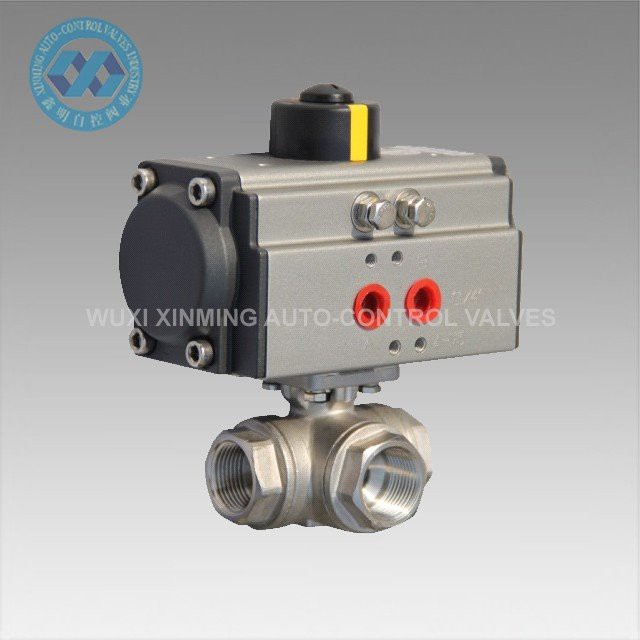

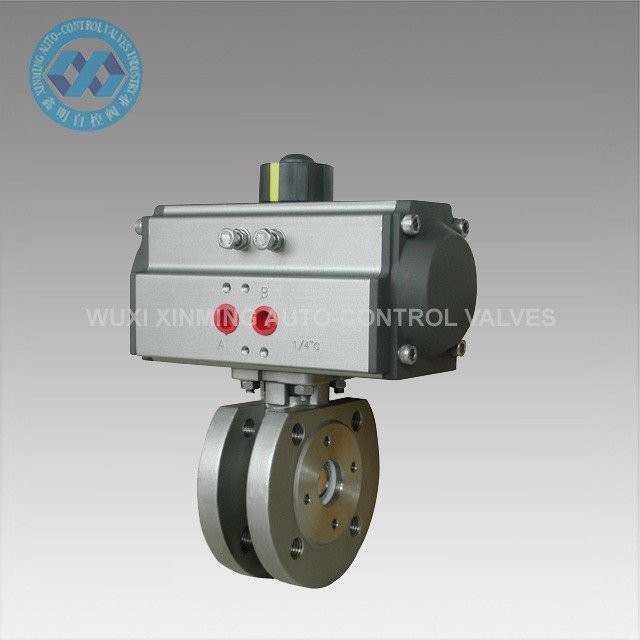

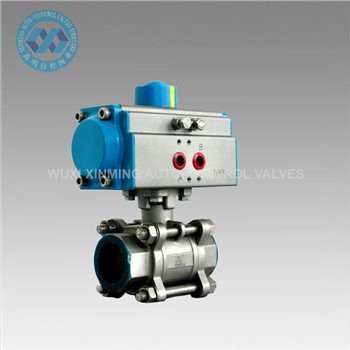

Pneumatic ball valve is a ball valve equipped with a pneumatic actuator. The execution speed of the pneumatic actuator is relatively fast. The fastest switching speed is 0.05 seconds/time, so it is usually called a pneumatic quick-cut ball valve.
Quick Details
Product Name: Pneumatic Ball Valves
Brand name: XM, and OEM is also accepted
Butterfly Valve size: 50mm-900mm
Certification: CE, ATEX, SIL3, ISO9001:2016

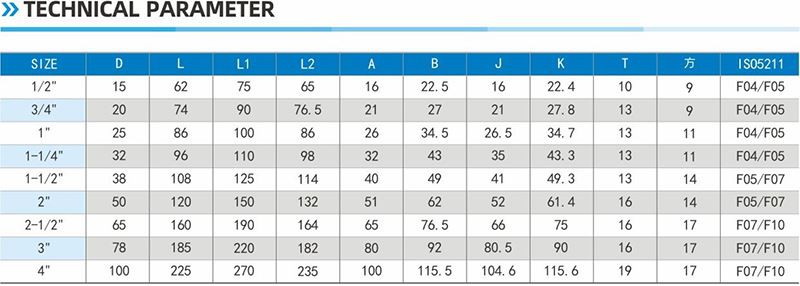

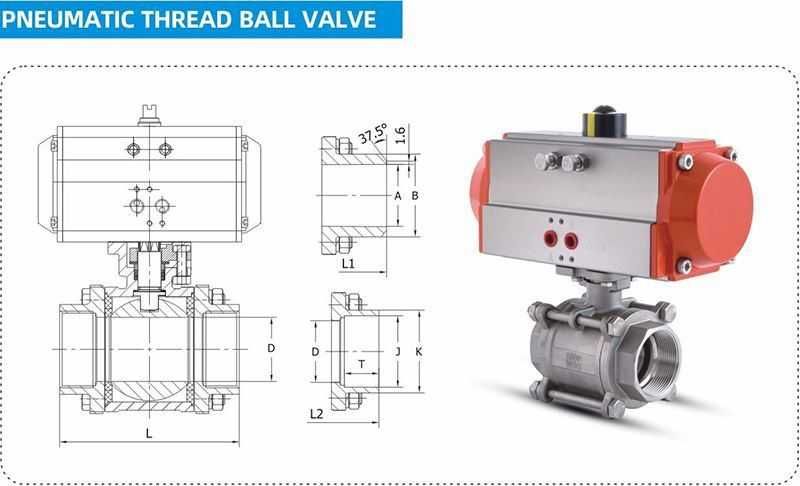

Technical Parameter
Product description

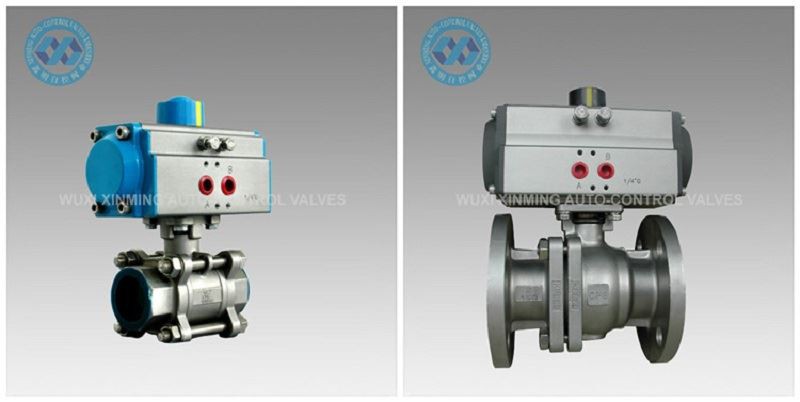

The three-piece bolted body comes apart for access to internal components without unthreading pipe connections and removing the valve from your line. Their ball-valve design allows these valves to achieve higher flow rates than other air-driven valves. They operate on compressed air to automatically start and stop flow. You must control the air to the actuator using either the included electric pilot valve or a manual on/off valve (not included). These valves require a minimum pressure drop between the inlet and the outlet for operation; the upstream pressure must be greater than the downstream pressure. Body is 316 stainless steel for excellent corrosion resistance. All valves have a visual flow indicator on the top of the actuator that shows whether the valve is open or closed.
Single-acting actuators only require air pressure to open the valve; they automatically spring closed when the air turns off. These valves are normally closed unless actuated. Double-acting actuators require air pressure to open and close the valve. Once actuated, these valves remain actuated until air pressure is applied, so they do not have a valve starting position.
Application
Pneumatic ball valve can be applied to various flammable, corrosive, dusty, strong magnetic field, radiation, vibration and corrosion indoor or outdoor environment, widely used in electric power, petrochemical, metallurgy, petroleum, natural gas, town, construction, drainage, chemical industry, Oil refining, mining, power plants, metallurgy, construction, medicine, food, natural gas, scientific research, etc.
Supply Ability
Supply Ability: 1000 units per month Pneumatic Ball Valve
Packing & Delivery
Packing detail: 1). If big quantity, plywood case
2). If small quantity, Carton or Plywood pallet
Port of departure: Shanghai, China
Lead Time:
|
Quantity(Units) |
1-50 |
51-1000 |
＞1001 |
|
Est. Time(days) |
Goods in stock |
30 |
To be negotiated |
Our Service
1)7x24 hours hotline
2)Strict quality control
3)Good quality at a favorable price
4)Excellent After-service
5)On-line technical support
6)Fast delivery time
FAQ
Q 1: Payment terms capacity?
A 1: T/T, L/C, Western Union.
Q 2: Trade terms?
A 2: In according with Incoterms 2010, normally with EXW, FOB shanghai, CFR, CIF and DDU.
Q 3: Validity of quotation?
A 3: Within 30 days.
Q 4: Modes of shipment?
A 4: By sea, by air, by express, or by railway.
Q 5: Warranty?
A 5: One year quality warranty for free, and lifelong paid service.
Q 6: Installation and training?
A 6: normal video guidance for installation. If necessary, paid overseas engineering service provided.
