Description
Product Introduction

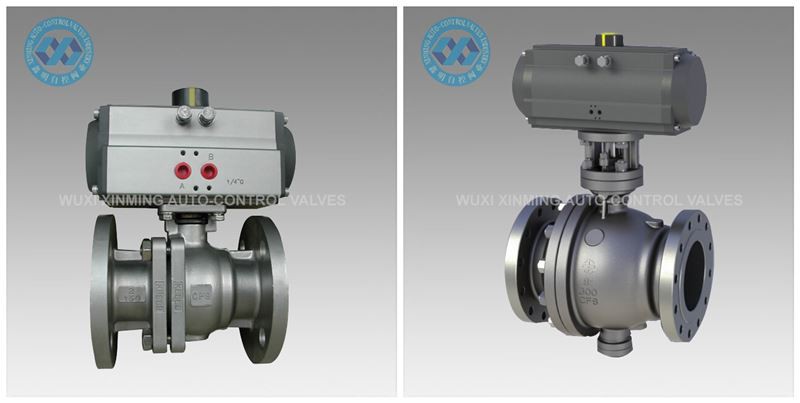

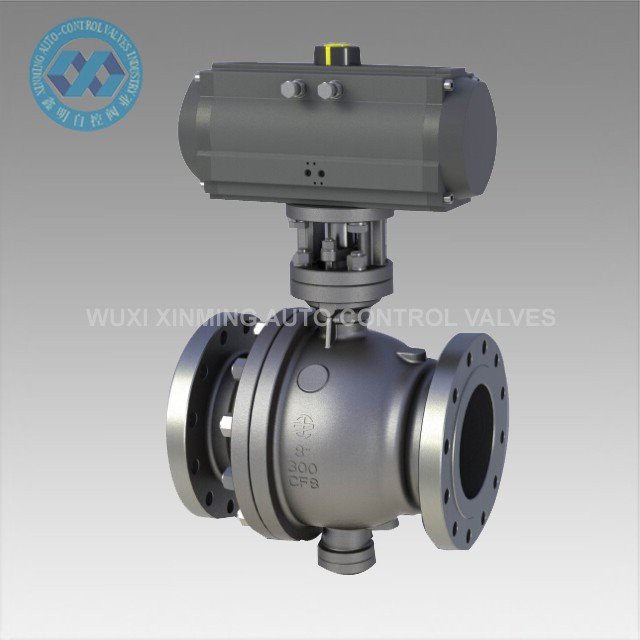

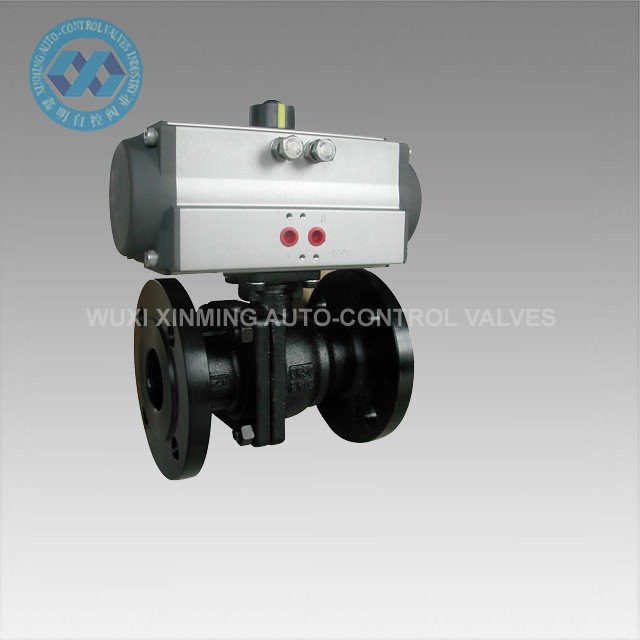

Flange ball valve, product customization is Simple, Fast and Economical. Allow us to help strengthen and preserve your identity by personalizing 1pc ball valve.
Bolt these valves to ANSI flanges. Their lockable lever handle can be fixed in place using a padlock (not included). These valves have four mounting holes for attaching an actuator.
316 stainless steel flange ball valve are more corrosion resistant than cast iron or steel valves.
Quick Details
Product Name: Flange Ball Valve
Brand name: XM, and OEM is also accepted
Butterfly Valve size: 20mm-450mm
Certification: CE, ATEX, SIL3, ISO9001:2016
Supply Ability
Supply Ability: 10000 units per month Pneumatic Ball Valve
Packing & Delivery
Packing detail: 1). If big quantity, plywood case
2). If small quantity, Carton or Plywood pallet
Port of departure: Shanghai, China
Lead Time:
|
Quantity(Units) |
1-50 |
51-10000 |
＞10001 |
|
Est. Time(days) |
Goods in stock |
30 |
To be negotiated |
Application
Thread Ball Valve can be suitable for various flammable, corrosive, dusty, strong magnetic field, radiation, vibration corrosive environment indoor or outdoor, which are widely used in the field of electric power, petrochemical, metallurgy, petroleum, gas, town, construction, drainage, chemical industry, oil refining, mining, power plant, metallurgy, architecture, medicine, food, gas, scientific research, etc.
Technical Parameter

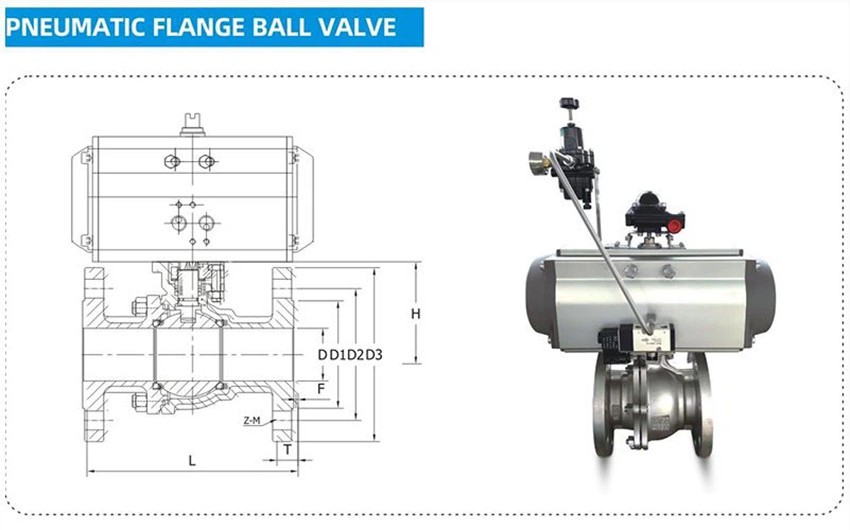

D-2FD GB-PN16/40 National Standard Flange
|
Main performance specification |
|
|
Applicable temperature range |
-20~180℃ |
|
Design and manufacture |
GB/T-12237 |
|
Flange size reference |
GB/T-9113.1 |
|
Flange length |
GB/T-12221 |
|
Inspection and testing |
GB/T-13927 |
|
Design highlights |
Explosion-proof valve stem, full bore |
D-2FD CLASS 150#
|
Main performance specification |
|
|
Applicable temperature range |
-20~180℃ |
|
Design and manufacture |
ANSI B 16.34 |
|
Flange size reference |
ASME B 16.5 CLASS 150 |
|
Flange length |
ASME B 16.1 |
|
Inspection and testing |
API-598 |
|
Design highlights |
Explosion-proof valve stem, full bore |
Company Introduction

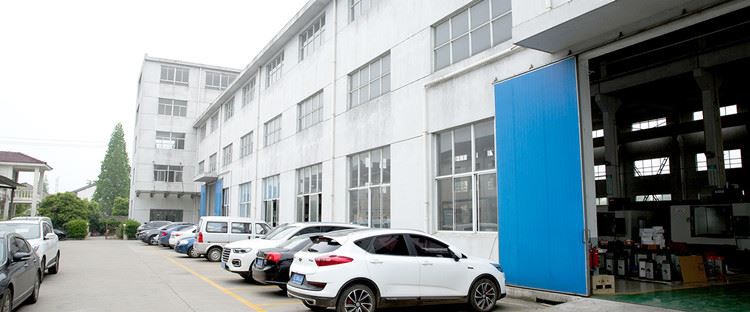

Since 2007,WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD has established.
We mainly manufacture Pneumatic Actuator, Pneumatic Ball Valve, Pneumatic Butterfly Valve, Pneumatic/Electrical Control Valve, etc.
Our Service
1)7x24 hours hotline
2)Strict quality control
3)Good quality at a favorable price
4)Excellent After-service
5)On-line technical support
6)Fast delivery time
