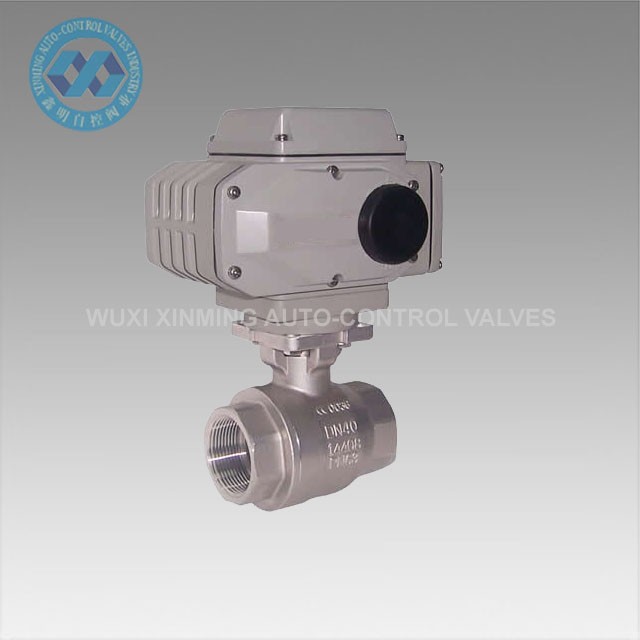

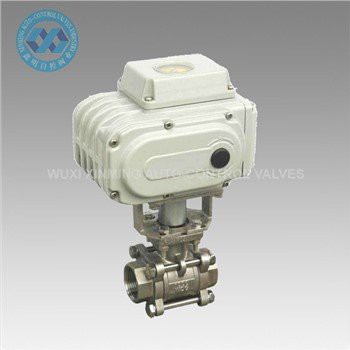

Electrical Ball Valve

Product Introduction

Electrical Ball Valves Known as actuated ball valves, these have a motor that can handle high flow rates and pressures. All operate on electricity to automatically start and stop flow. Valves can be wired as normally closed unless actuated or normally open unless actuated. They don’t require a minimum pressure drop between the inlet and outlet for operation.

The actuator is directly mounted to the valve body to minimize movement and reduce wear. A visual flow indicator on the top of the actuator shows whether the valve is open or closed. The manual override allows you to operate the valve during power outages.

316 stainless steel valves are more corrosion resistant than brass valves.

Full-port valves do not restrict flow. Standard-port valves slightly restrict flow.

Quick Details

Product Name: Electrical Ball Valve

Brand name: XM, and OEM is also accepted

Butterfly Valve size: 50mm-900mm

Certification: CE, ATEX, SIL3, ISO9001:2016

Valve Type: Ball

Application: Water, Oil, Air, Steam

Seal Material : PTFE

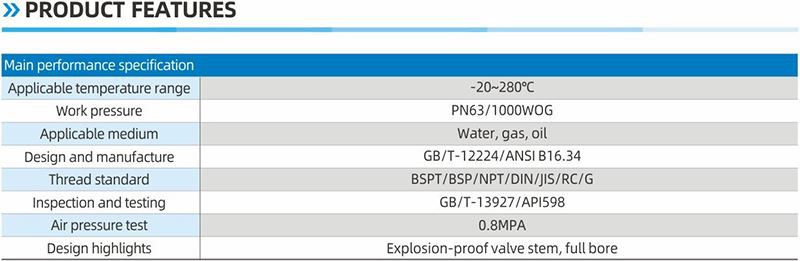

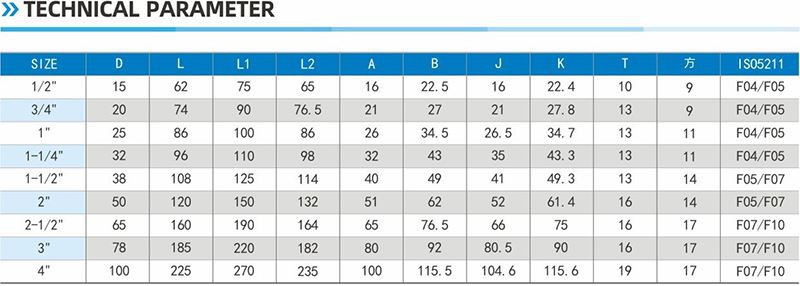

Technical Parameter

Application

Electric ball valves can be applied to various flammable, corrosive, dusty, strong magnetic field, radiation, vibration and corrosion indoor or outdoor environment, widely used in electric power, petrochemical, metallurgy, petroleum, gas, town, construction, drainage, chemical industry, Oil refining, mining, power plants, metallurgy, construction, medicine, food, natural gas, scientific research, etc.

Company Introduction

Since 2007,WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD has established.

We mainly manufacture Pneumatic Actuator, Pneumatic Ball Valve, Pneumatic Butterfly Valve, Pneumatic/Electrical Control Valve, etc.

Our company has advanced processing equipment and sophisticated testing equipment. Our processing equipment include lathes, milling machine, boring machine, planer, drilling machine, CNC lathes, CNC machining centers and other equipment. There are totally 30 sets, of which there are 5 sets imported vertical machine center and several sets advanced CNC lathes.

Supply Ability

Supply Ability: 1000 units per month Pneumatic Ball Valve

Packing & Delivery

Packing detail: 1). If big quantity, plywood case

2). If small quantity, Carton or Plywood pallet

Port of departure: Shanghai, China

Lead Time:

Our Service

1)7x24 hours hotline

2)Strict quality control

3)Good quality at a favorable price

4)Excellent After-service

5)On-line technical support

6)Fast delivery time

FAQ

Q 1: Payment terms capacity?

A 1: T/T, L/C, Western Union.

Q 2: Trade terms?

A 2: In according with Incoterms 2010, normally with EXW, FOB shanghai, CFR, CIF and DDU.

Q 3: Validity of quotation?

A 3: Within 30 days.

Q 4: Modes of shipment?

A 4: By sea, by air, by express, or by railway.

Q 5: Warranty?

A 5: One year quality warranty for free, and lifelong paid service.

Q 6: Installation and training?

A 6: normal video guidance for installation. If necessary, paid overseas engineering service provided.

Hot Tags: Ball Valve,Limit Switch Box,Solenoid Valve
