Selection of pneumatic valve actuator

Before selecting a pneumatic valve actuator, please confirm the valve torque. And increase the safety value in torque, with water vapor or non lubricating liquid media increasing the safety value by 25%; Non lubricating slurry liquid medium increases the safety value by 30%.
When selecting a valve torque of 210NM, a gas source pressure of only 5bar, and a non lubricating steam medium, considering safety factors, increase the safety value by 25% to 262NM. Use the double acting output torque table to find the corresponding torque value when the gas source pressure is 5bar. 277NM, model POADA300, should be selected.

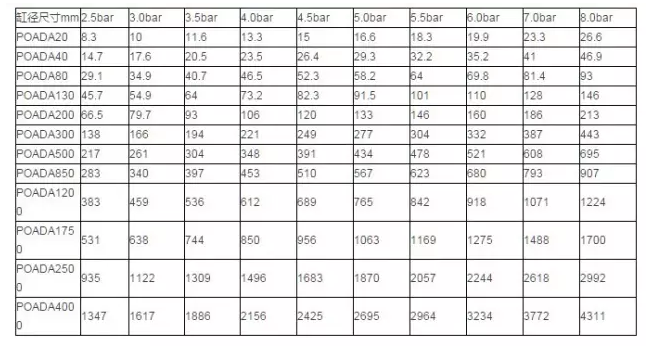

Pneumatic valve actuator torque gauge
